Door Switch Check

CHECK DOOR SWITCHES INPUT SIGNAL
With CONSULT-II

Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR(" in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".
- When any doors are open:
  DOOR SW-DR : ON

  DOOR SW-AS : ON

  DOOR SW-RL : ON

  DOOR SW-RR : ON
- When any doors are closed:
  DOOR SW-DR : OFF

  DOOR SW-AS : OFF

  DOOR SW-RL : OFF

  DOOR SW-RR : OFF

  Fig 1: CONSULT-II Display - DOOR SW-DR, DOOR SW-AS, DOOR SW-RL And DOOR SW-RR
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Without CONSULT-II

  Check voltage between BCM connector M18 or M19 terminals 12, 13, 47, 48 and ground.

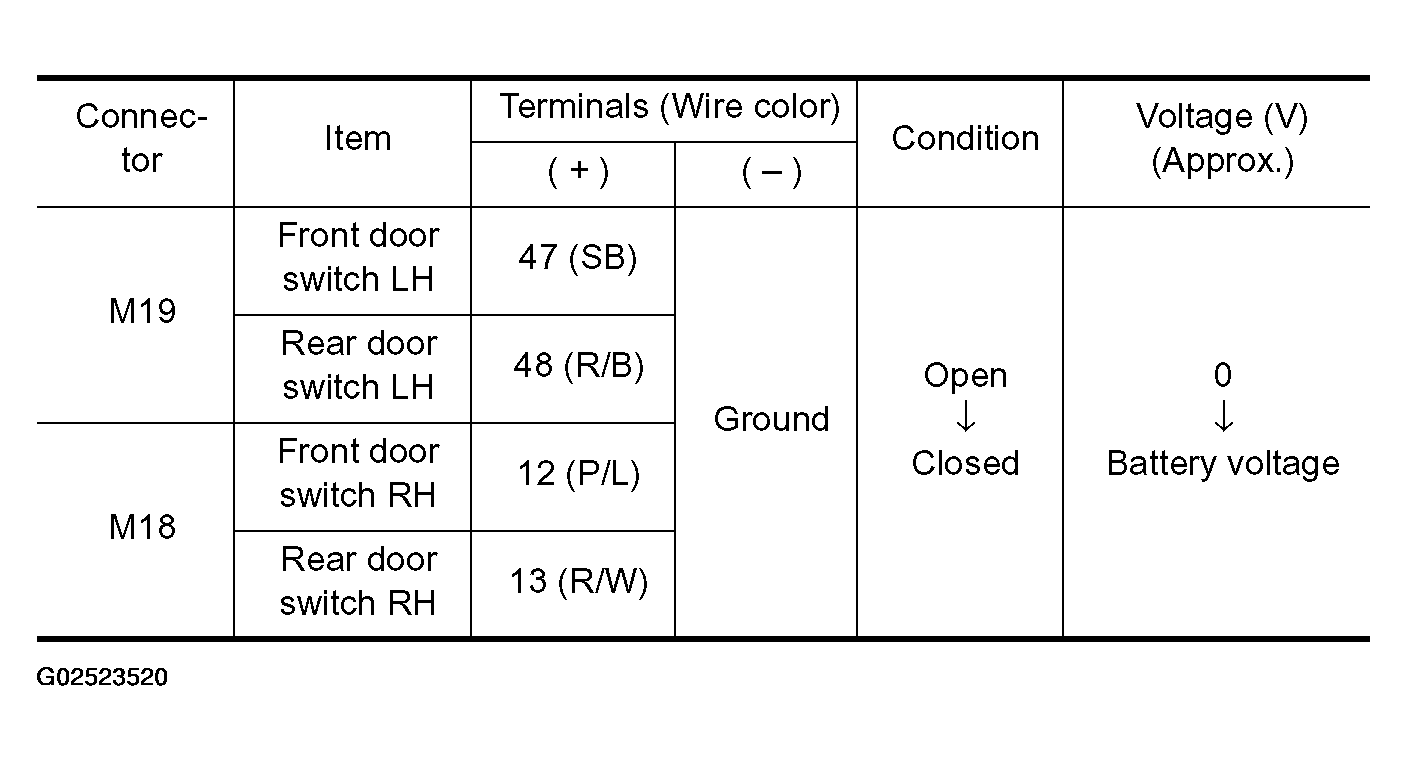

  Fig 2: BCM Connector M18 And M19 Terminals 12, 13, 47 And 48 Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 3: Checking Voltage Between BCM Connector M18 Or M19 Terminals 12, 13, 47, 48 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : System is OK.
- NG : GO TO 2.
CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM.
3. Check continuity between door switch connector B8 (Front LH) or B108 (Front RH) terminal 2, B18 (Rear LH) or B116 (Rear RH) terminal 1 and BCM connector M18, M19 terminals 12, 13, 47 and 48.
  2 (SB) - 47 (SB) : Continuity should exist

  2 (P/L) - 12 (P/L) : Continuity should exist

  1 (R/B) - 48 (R/B) : Continuity should exist

  1 (R/W) - 13 (R/W) : Continuity should exist
4. Check continuity between door switch connector B8 (Front LH) or B108 (Front RH) terminal 2, B18 (Rear LH) or B116 (Rear RH) terminal 1 and ground.
  2 (SB or P/L) - Ground : Continuity should not exist

  1 (R/B or R/W) - Ground : Continuity should not exist
OK or NG
- OK : GO TO 3.
- NG : Repair or replace harness.

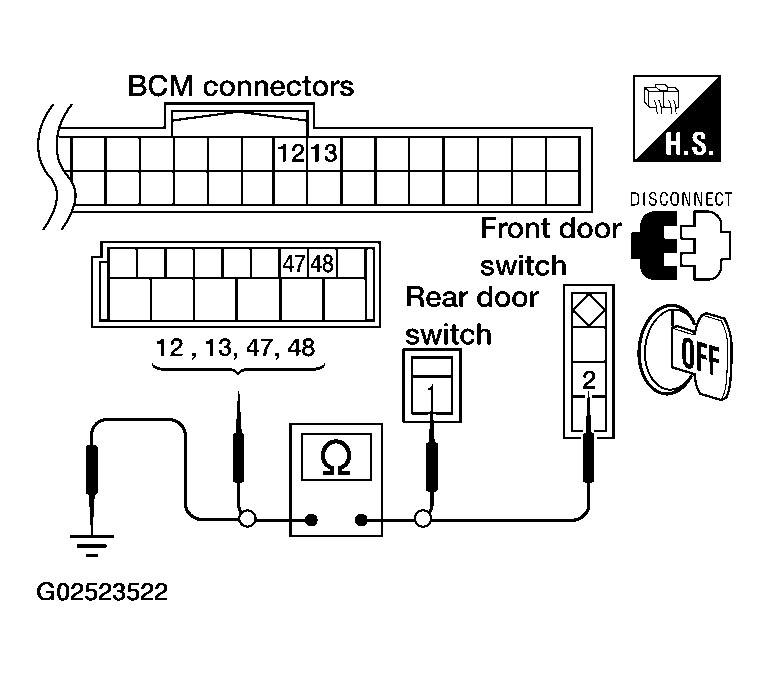

  Fig 4: Checking Door Switch Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK DOOR SWITCHES
1. Disconnect door switch harness.
2. Check continuity between door switch connector terminals.

  Fig 5: Door Switch Connector Terminals Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 6: Checking Continuity Between Door Switch Connector Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Check door switch case ground condition.
- NG : Replace door switch.
