Front Side Member
Front Side Member
Work after hoodledge and radiator core support have been removed.

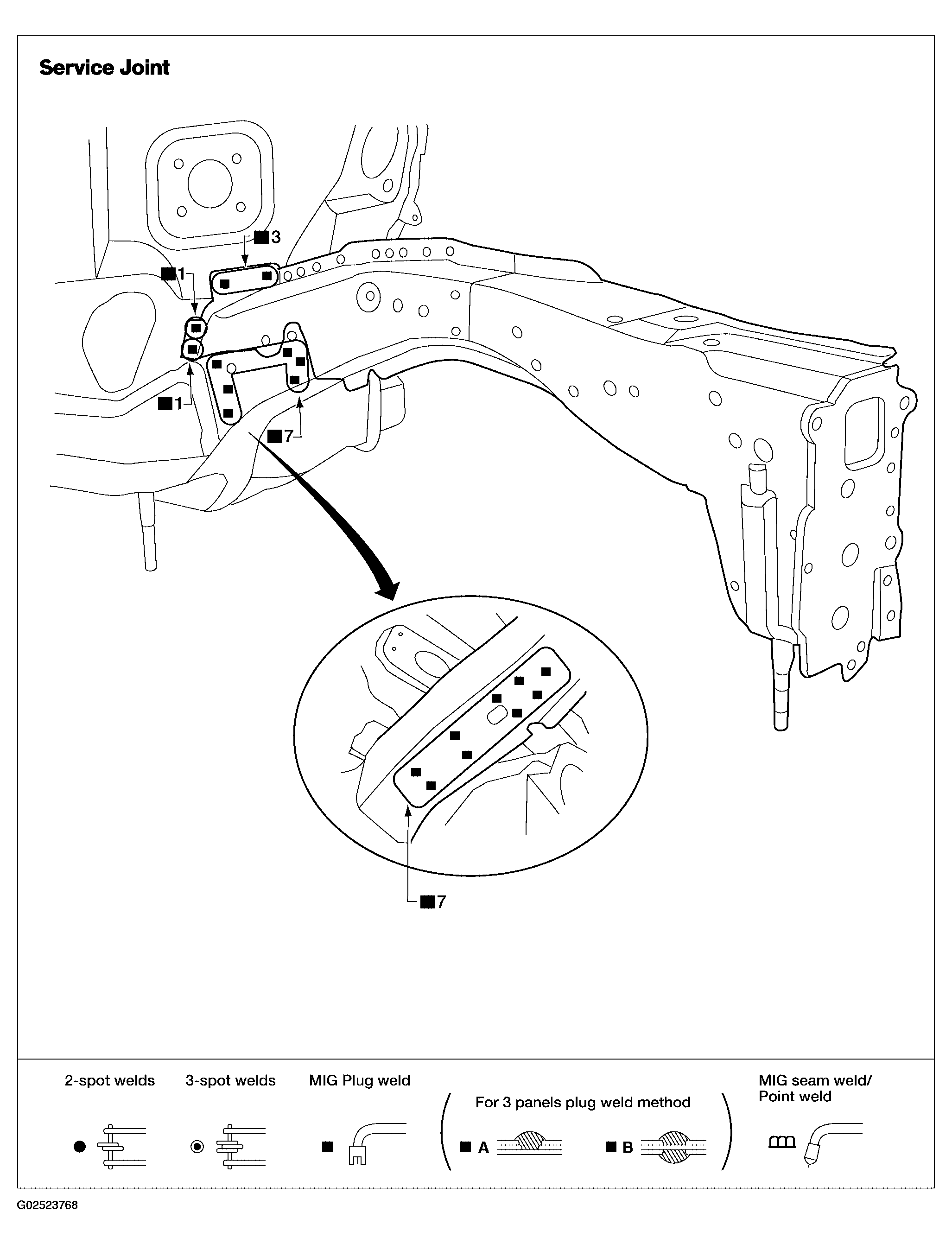

Fig 1: Identifying Front Side Member Service Joints (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

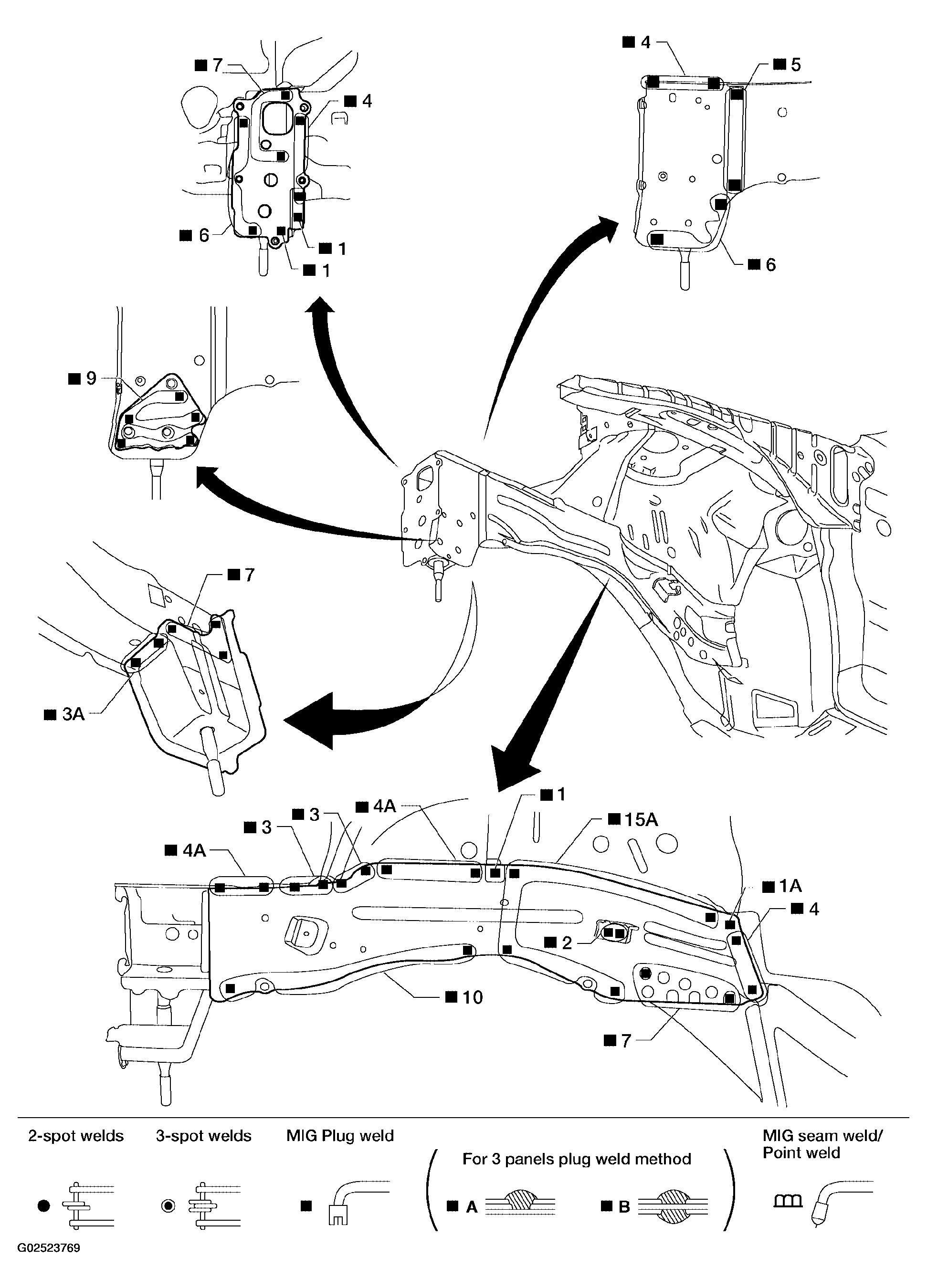

Fig 2: Identifying Front Side Member Service Joints (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
