Corrosion Protection: Undercoating
The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chipping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoating which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.
Precautions in undercoating
- Do not apply undercoating to any place unless specified (such as the areas above the muffler and three way catalyst which are subjected to heat).
- Do not undercoat the exhaust pipe or other parts which become hot.
- Do not undercoat rotating parts.
- Apply bitumen wax after applying undercoating.

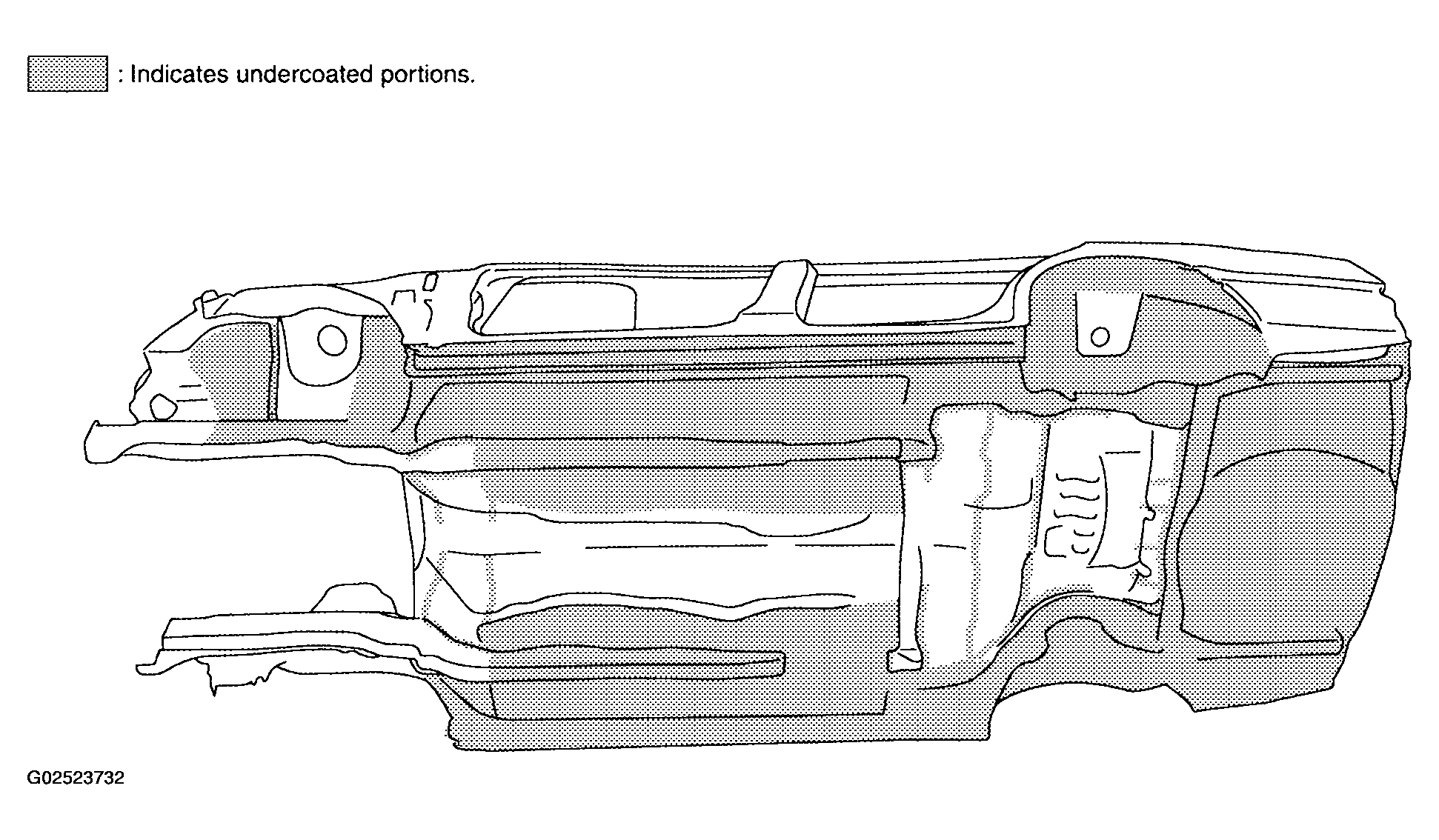

: Indicates undercoated portions.
