Rear Body
Rear Body

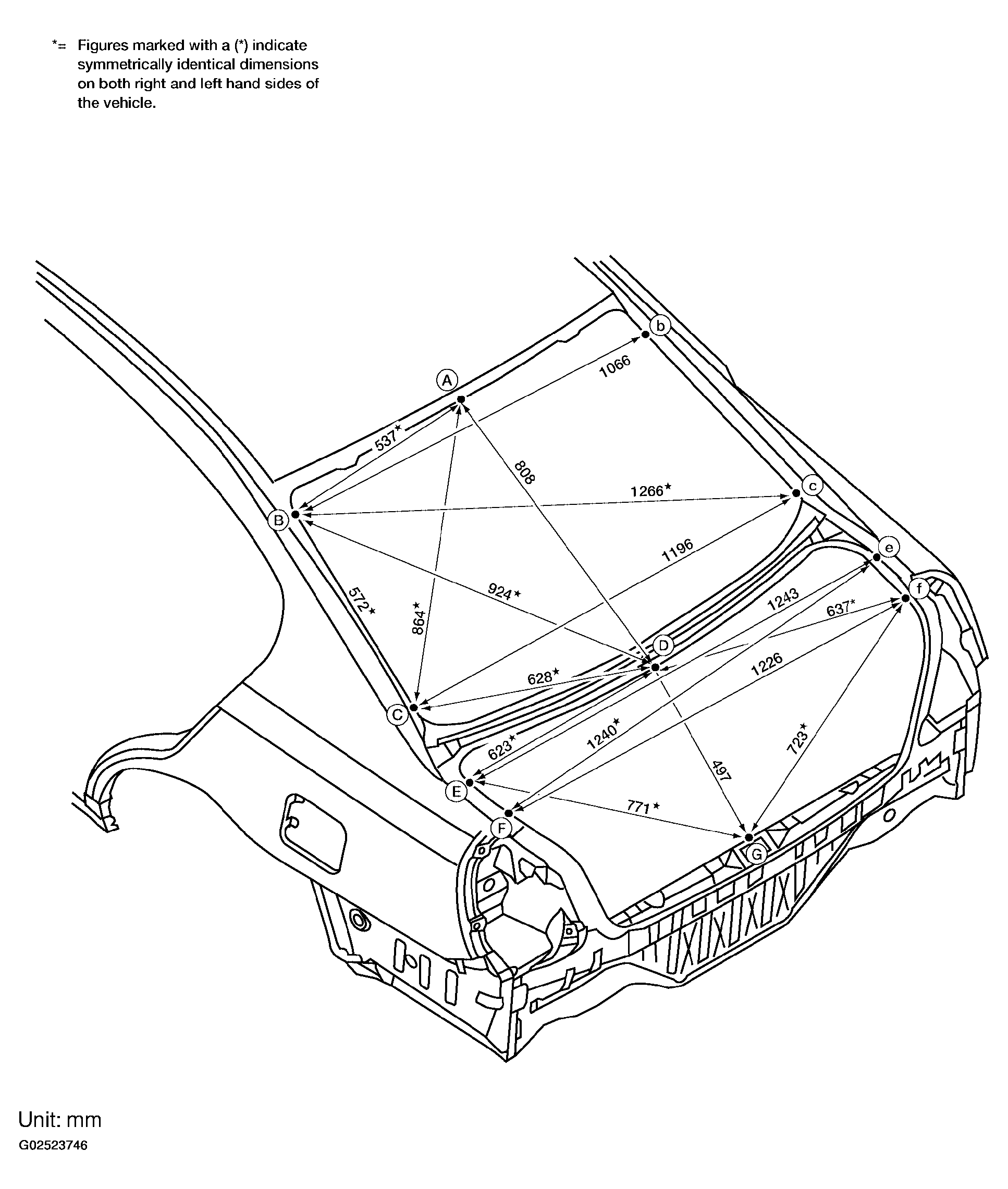

Fig 1: Measurement Of Rear Body
Courtesy of NISSAN MOTOR CO., U.S.A.

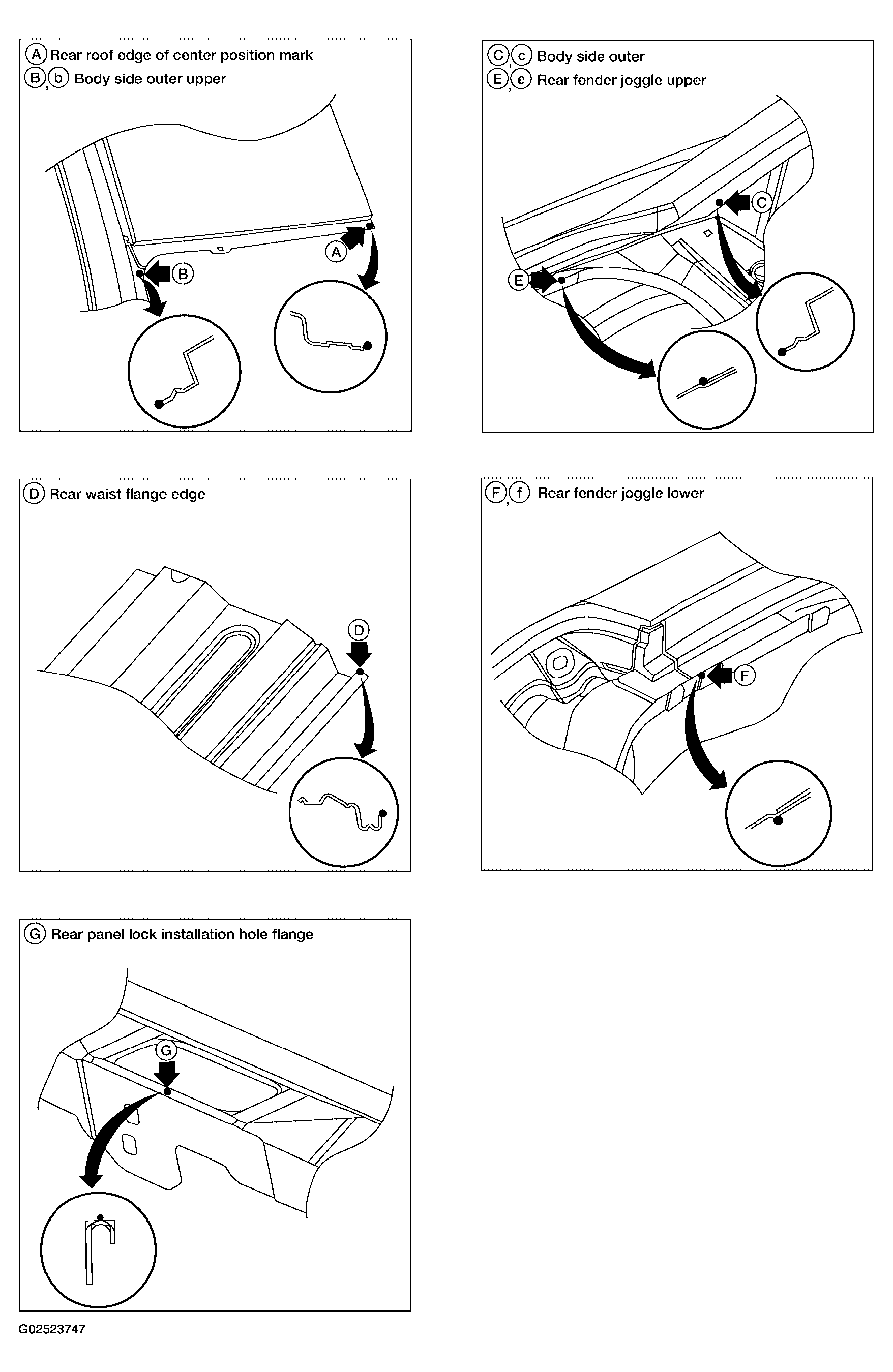

Fig 2: Identifying Measurement Points
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
