Engine Compartment

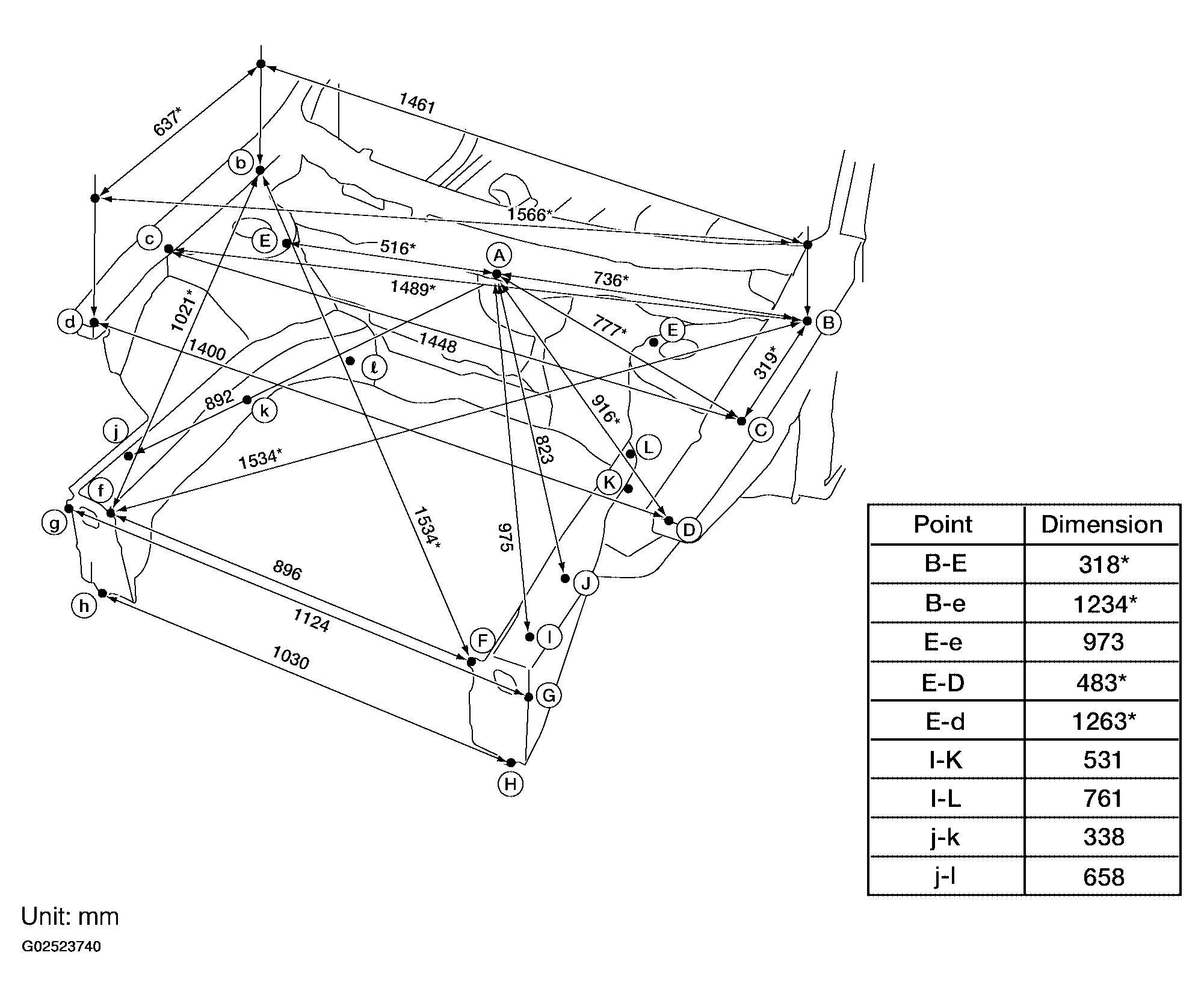

Fig 1: Measurement Of Engine Compartment
G02523740Courtesy of NISSAN MOTOR CO., U.S.A.

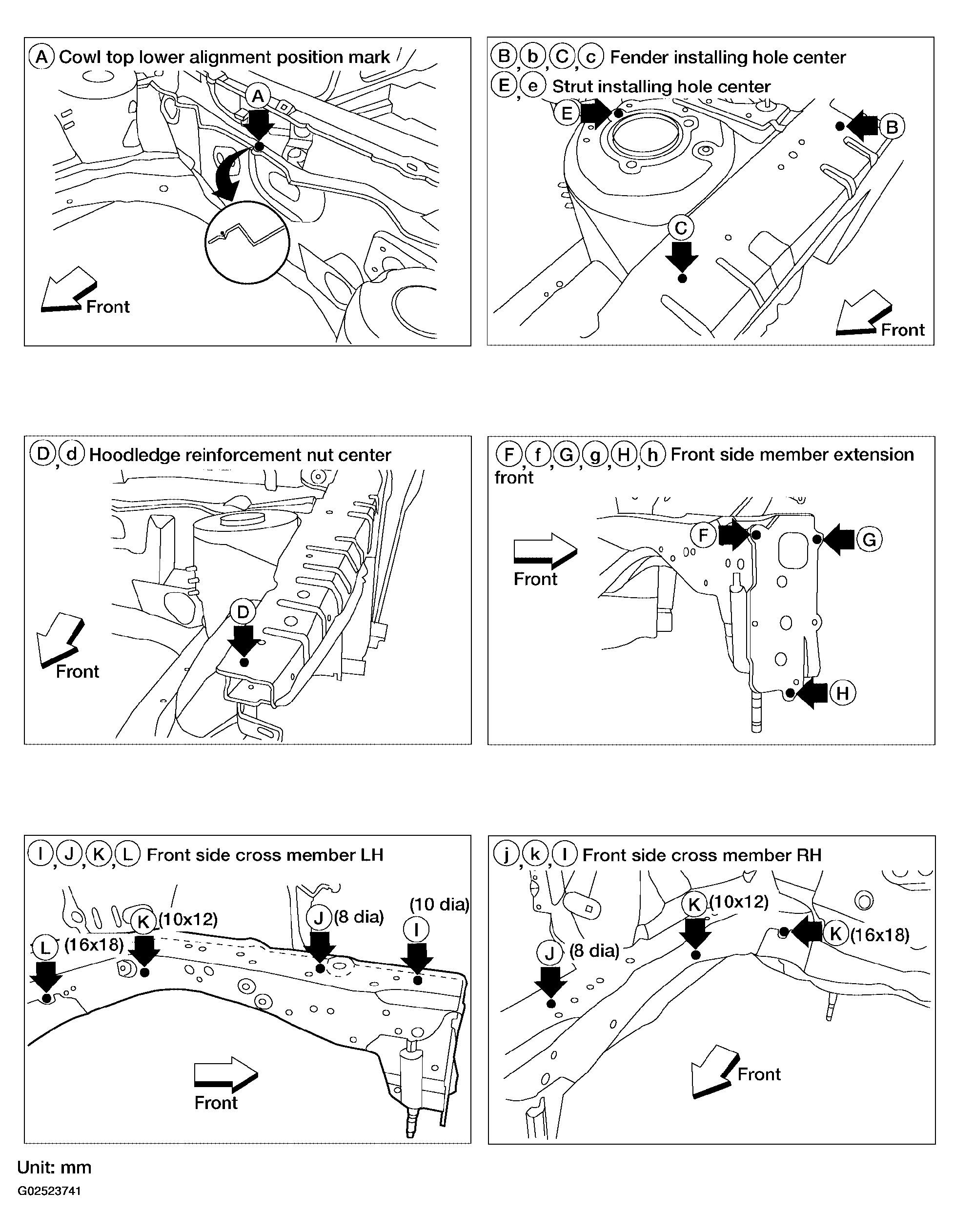

Fig 2: Identifying Measurement Points
G02523741Courtesy of NISSAN MOTOR CO., U.S.A.
