CONSULT-II Function (ENGINE): Function

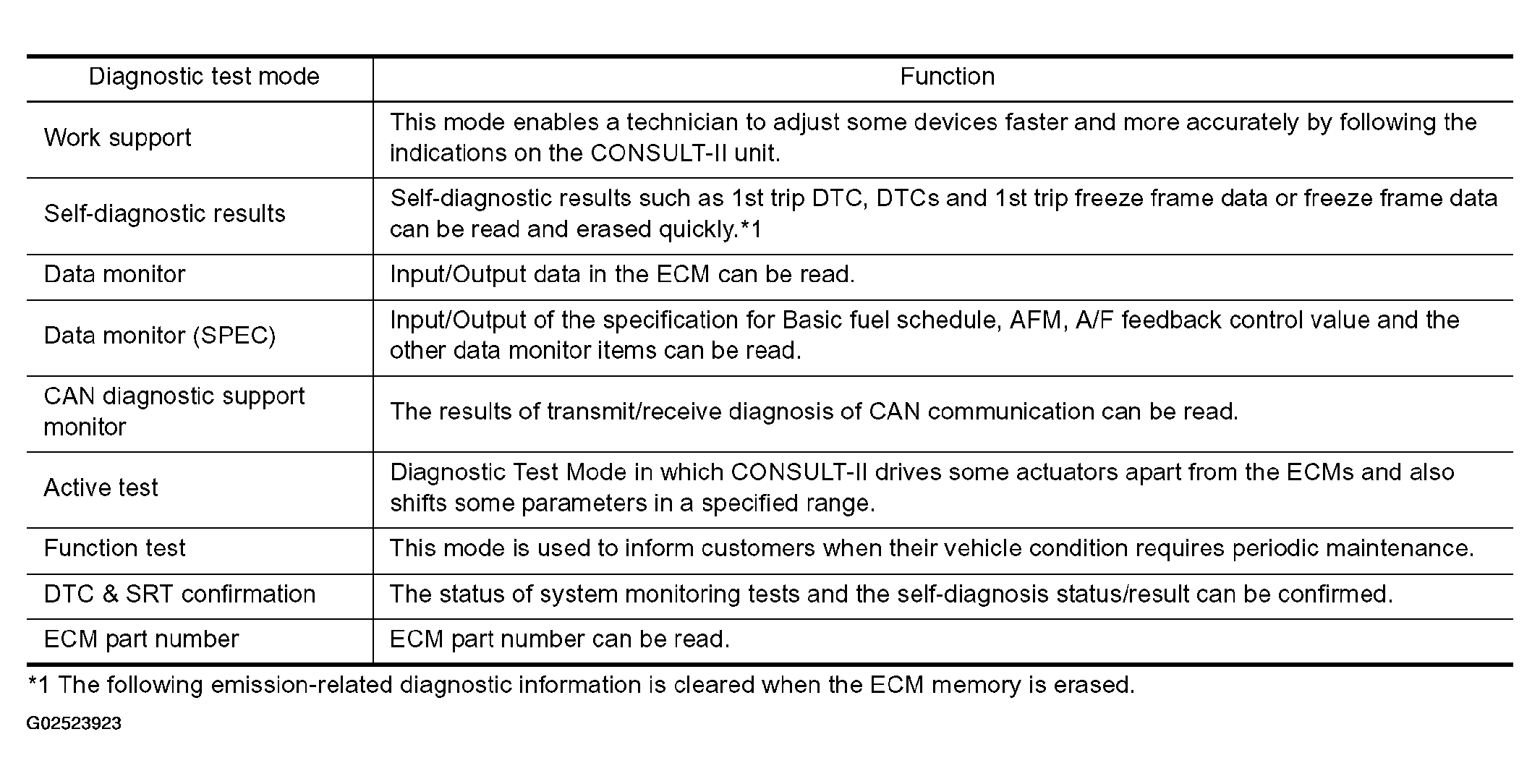

Fig 1: Consult-II Function (Engine) - Table
G02523923Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Diagnostic trouble codes
  2. 1st trip diagnostic trouble codes
  3. Freeze frame data
  4. 1st trip freeze frame data
  5. System readiness test (SRT) codes
  6. Test values
