Engine Control System - Qr25DE
>>
Preparation
>>
Special Service Tools
Special Service Tools

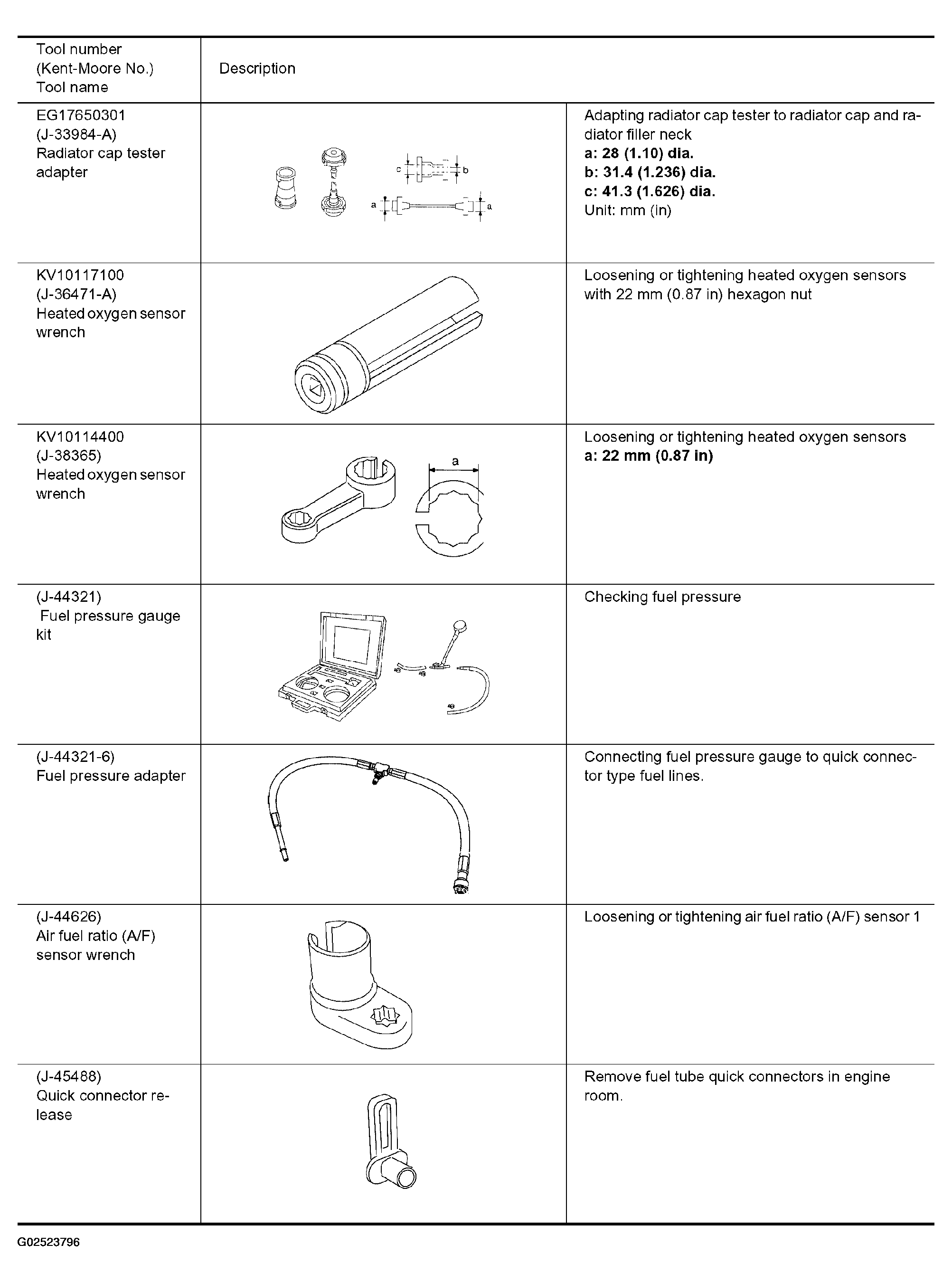

Fig 1: Special Service Tools - Specification (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

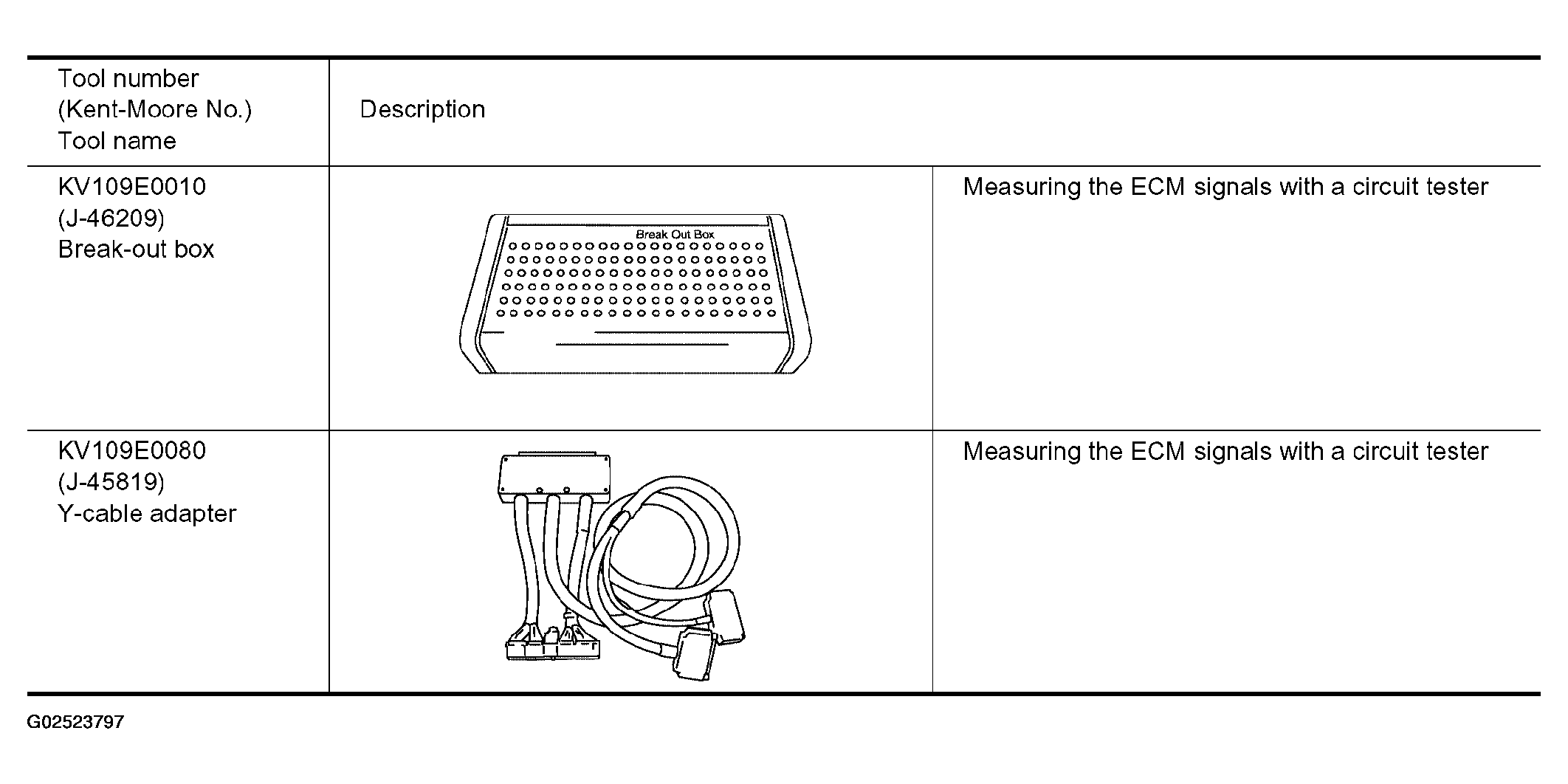

Fig 2: Special Service Tools - Specification (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
