ASCD Steering Switch

Disconnect ASCD steering switch.
Check continuity between ASCD steering switch terminals 1 and 2 with pushing each switch.

Fig 1: Checking Continuity Between ASCD Steering Switch Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.

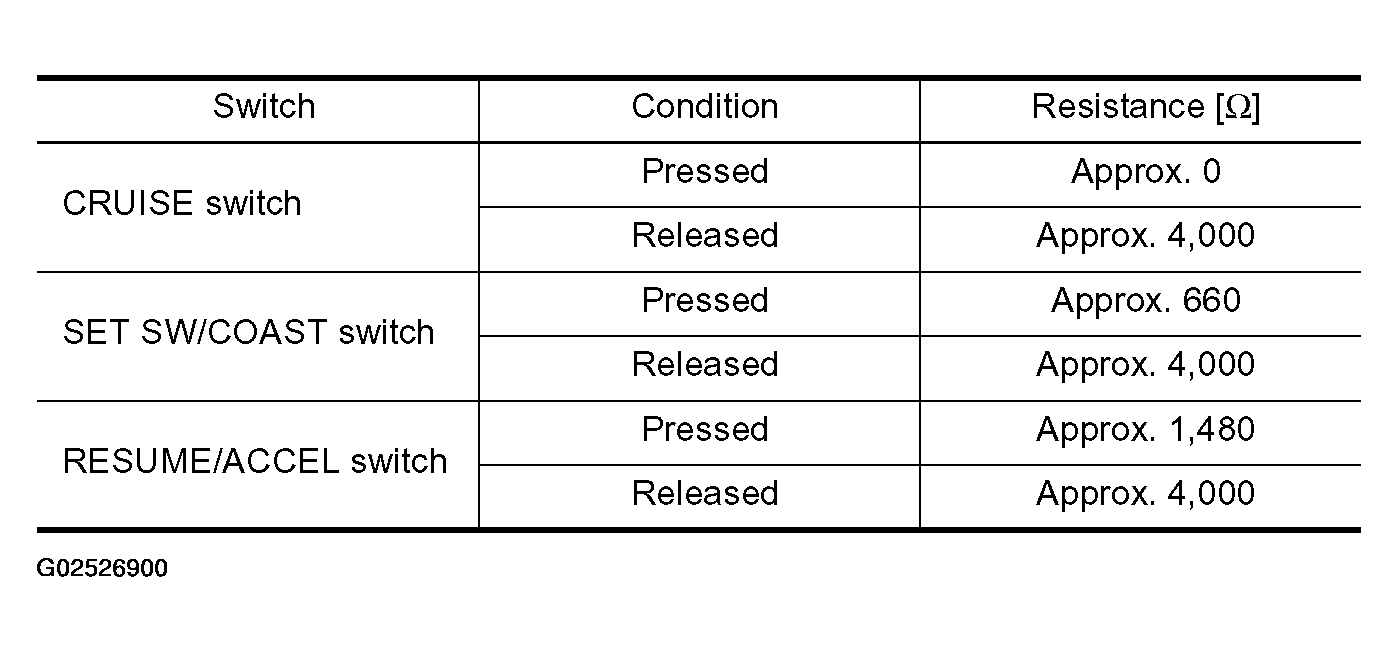

Fig 2: Switches Resistance Specification Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Switches Resistance Specification Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ASCD steering switch.
