Generic Scan Tool (GST) Function: Function

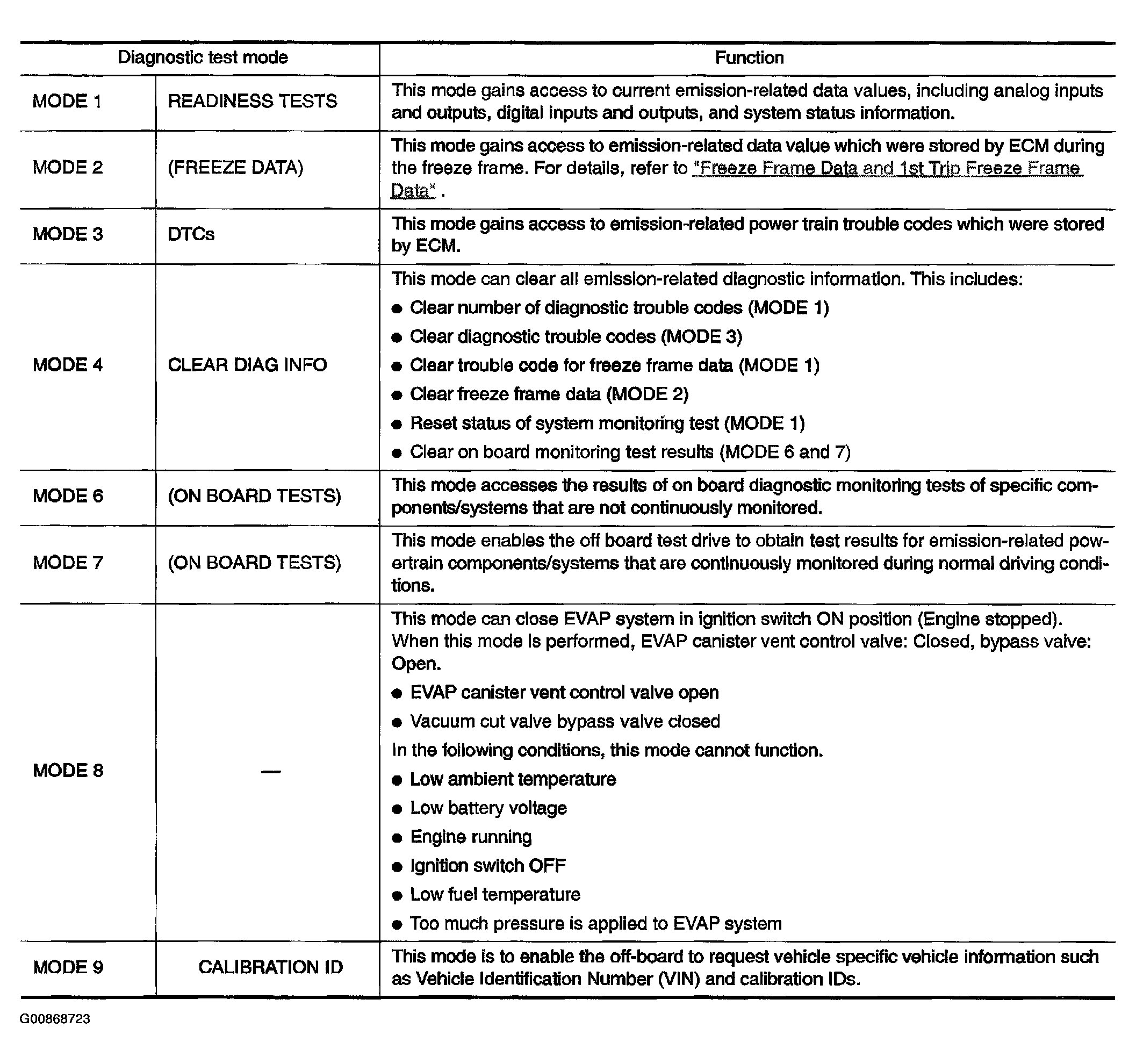

Fig 1: Function Chart

G00868723

Courtesy of NISSAN MOTOR CO., U.S.A.
