Home >> Nissan-Datsun >> 2004 >> Xterra SE, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - VG33E >> Trouble Diagnosis >> CONSULT-II Function >> Function

CONSULT-II Function: Function

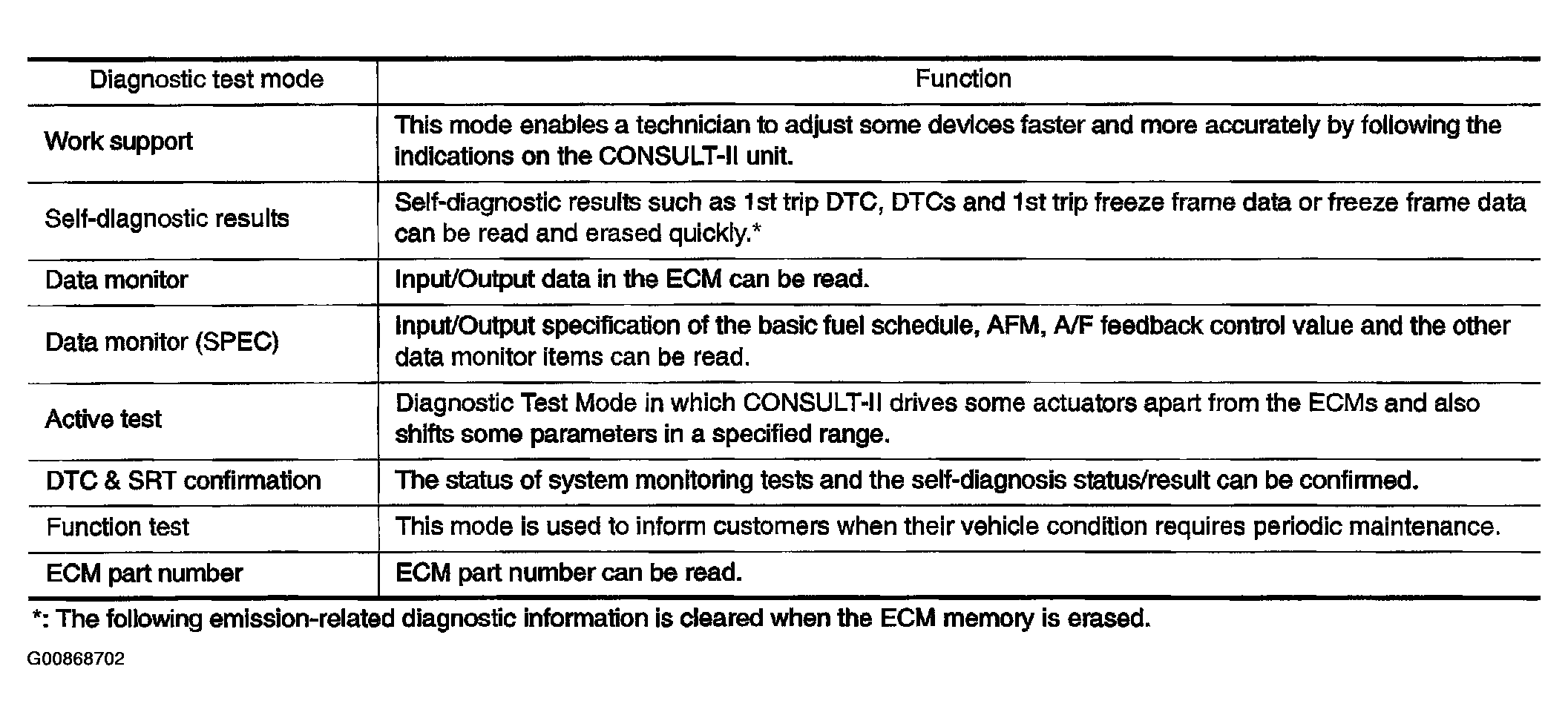

Fig 1: CONSULT-II Function

G00868702

Courtesy of NISSAN MOTOR CO., U.S.A.

1st trip freeze frame data
System readiness test (SRT) codes
Test values
Others
