Engine Control Component Parts/Control Systems Application

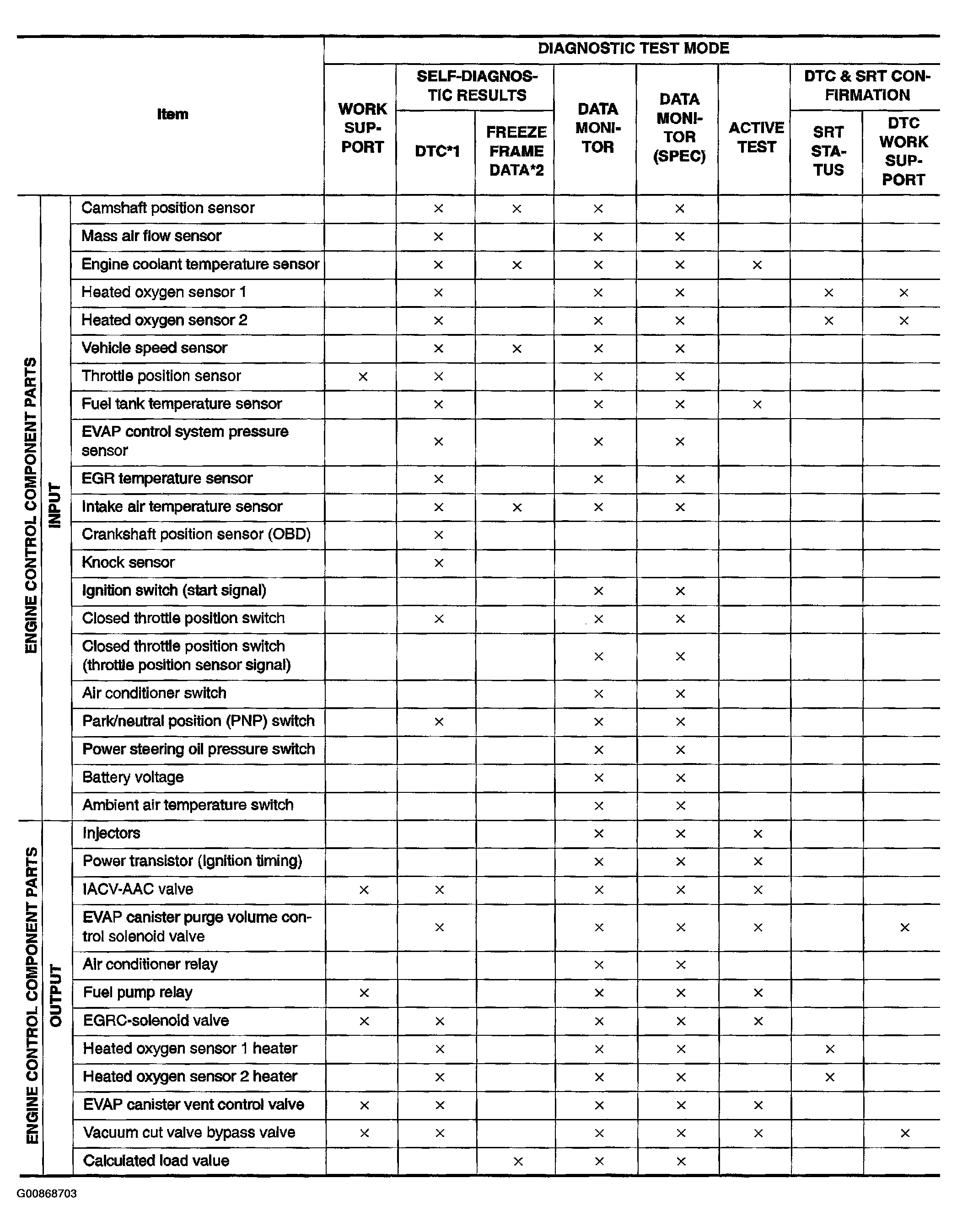

Fig 1: Engine Control Component Parts/Control Systems Application

G00868703

Courtesy of NISSAN MOTOR CO., U.S.A.
