Monitored Items

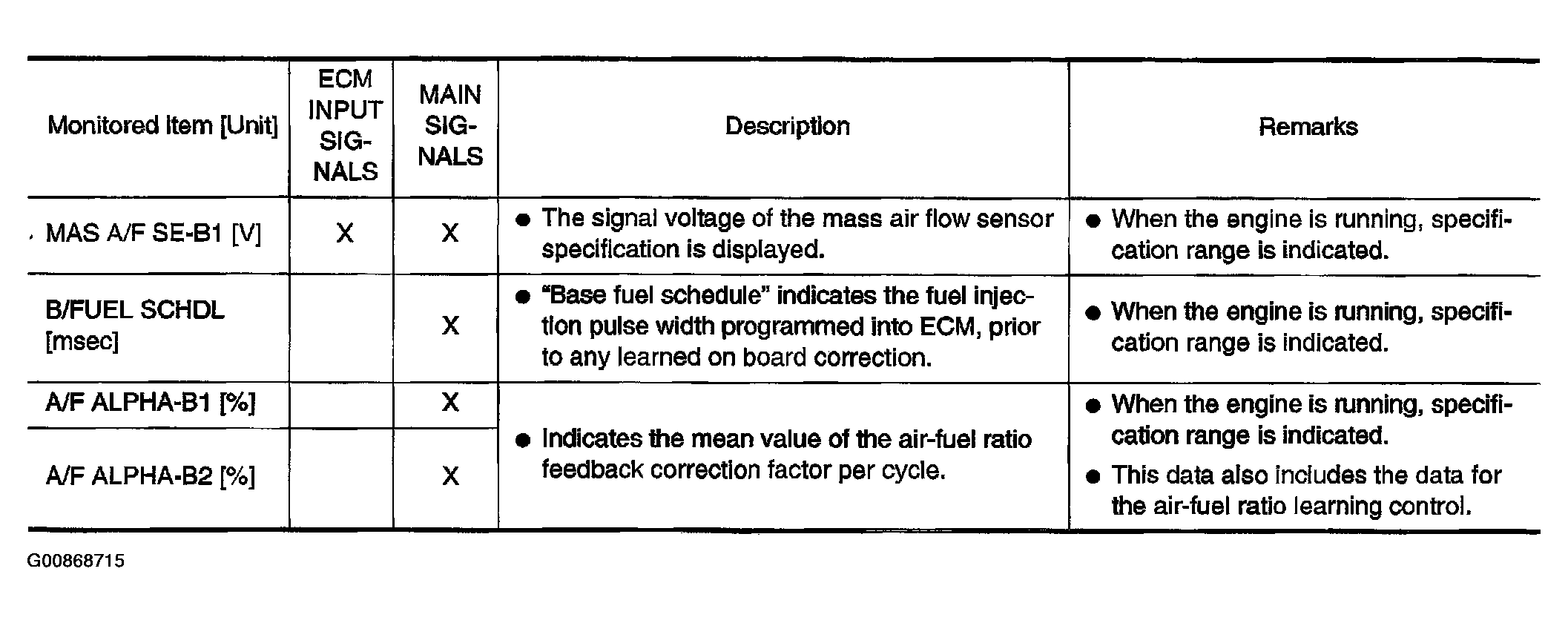

Fig 1: DATA MONITOR (SPEC) Mode (Monitored Items) Chart
G00868715Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
