Engine Control System - VG33E
>>
Trouble Diagnosis
>>
CONSULT-II Function
>>
Active Test Mode
>>
Test Item
Test Item

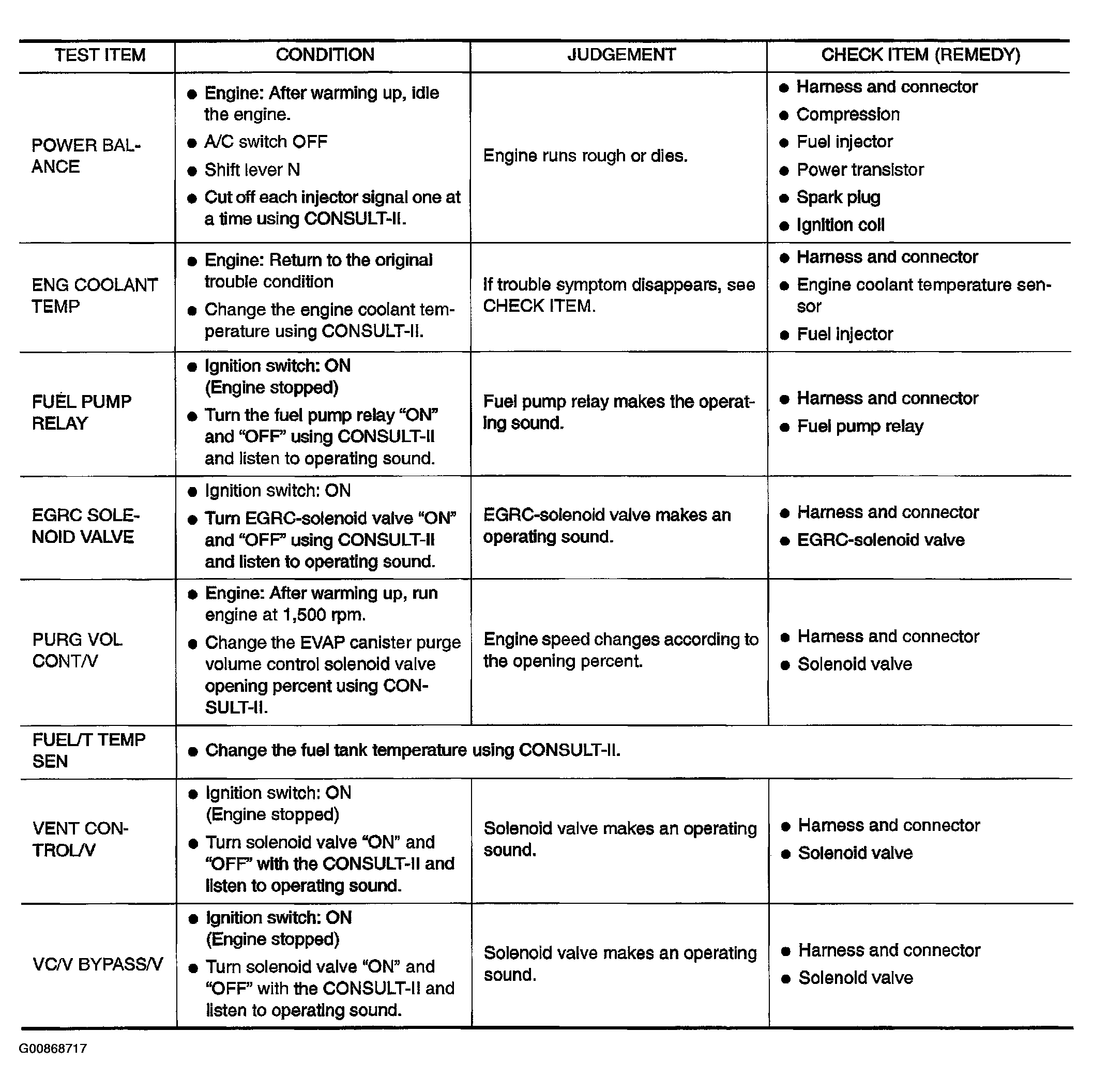

Fig 1: ACTIVE TEST MODE (Test Item) Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

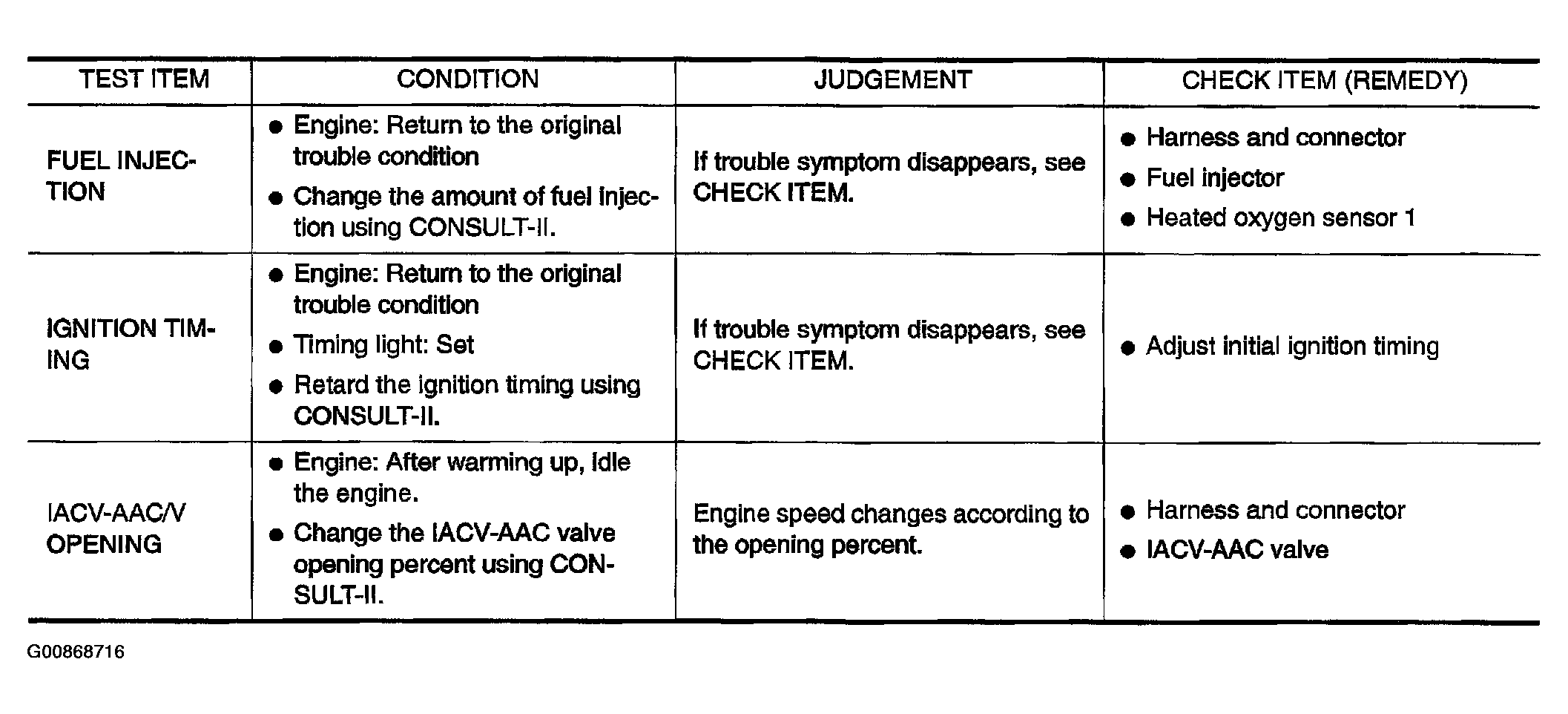

Fig 2: ACTIVE TEST MODE (Test Item) Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
