Engine Control System - VG33E
>>
Service Data And Specifications (SDS)
>>
Idle Speed and Ignition Timing
Idle Speed and Ignition Timing

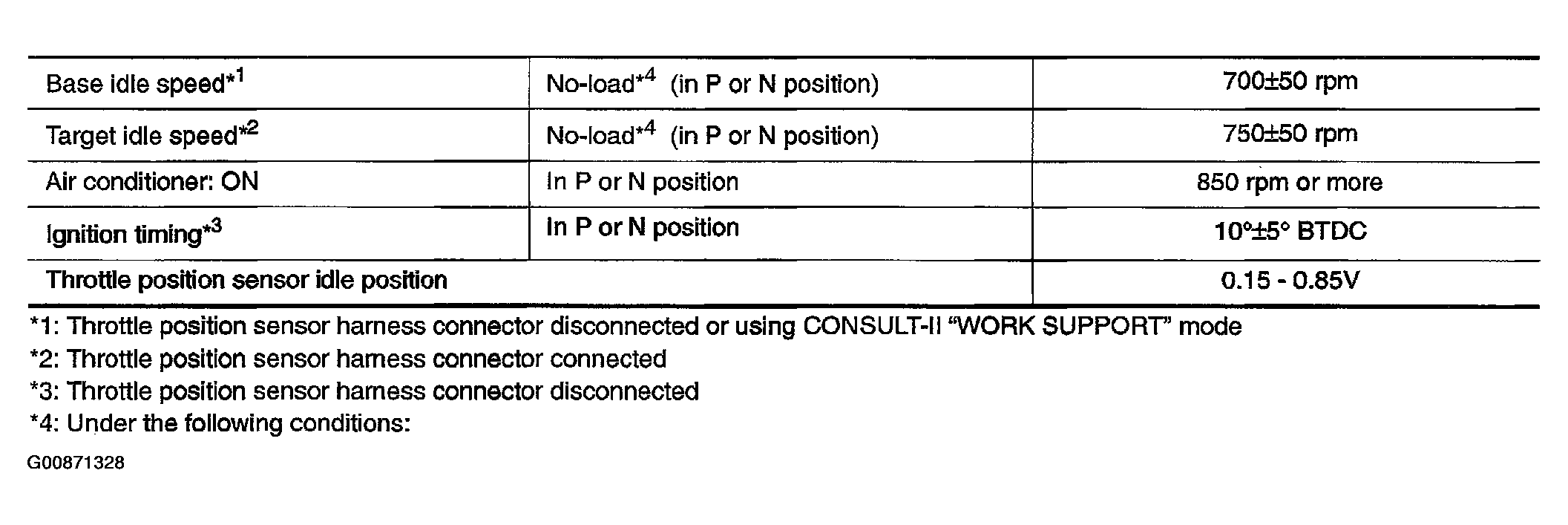

Fig 1: Idle Speed and Ignition Timing Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Air conditioner switch: OFF
Electric load: OFF (Lights, heater fan & rear window defogger)
Steering wheel: Kept in straight-ahead position
Courtesy of NISSAN MOTOR CO., U.S.A.
