CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

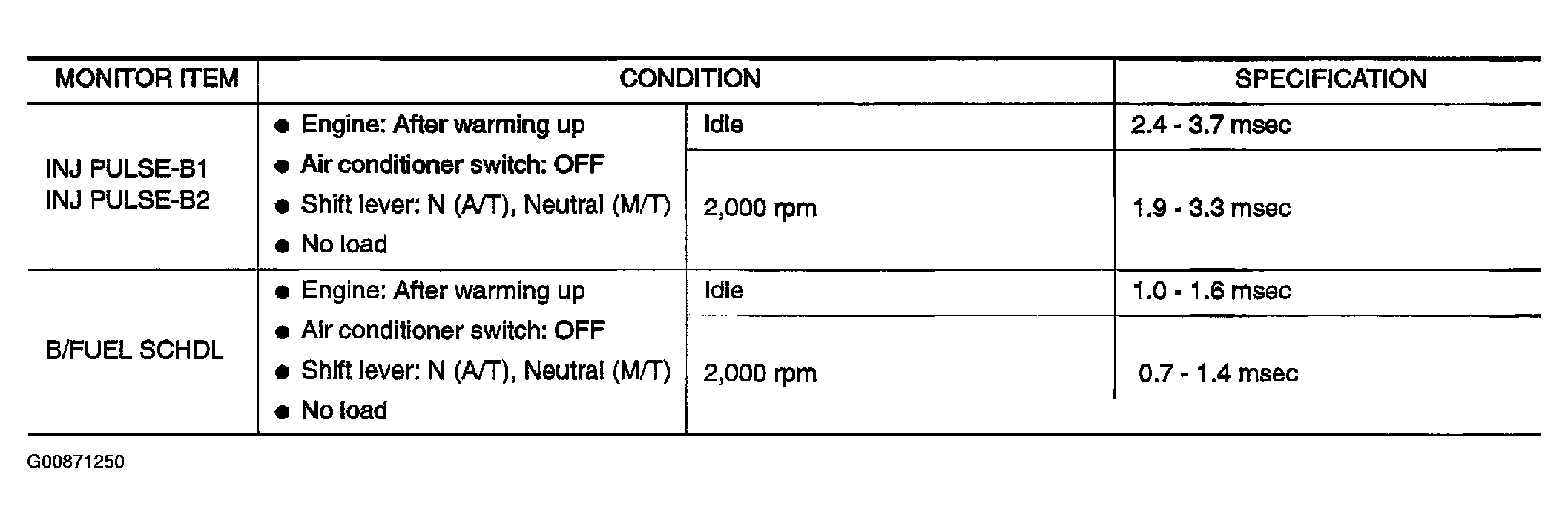

Fig 1: Monitor Item Specification

G00871250

Courtesy of NISSAN MOTOR CO., U.S.A.
