DTC No. Index

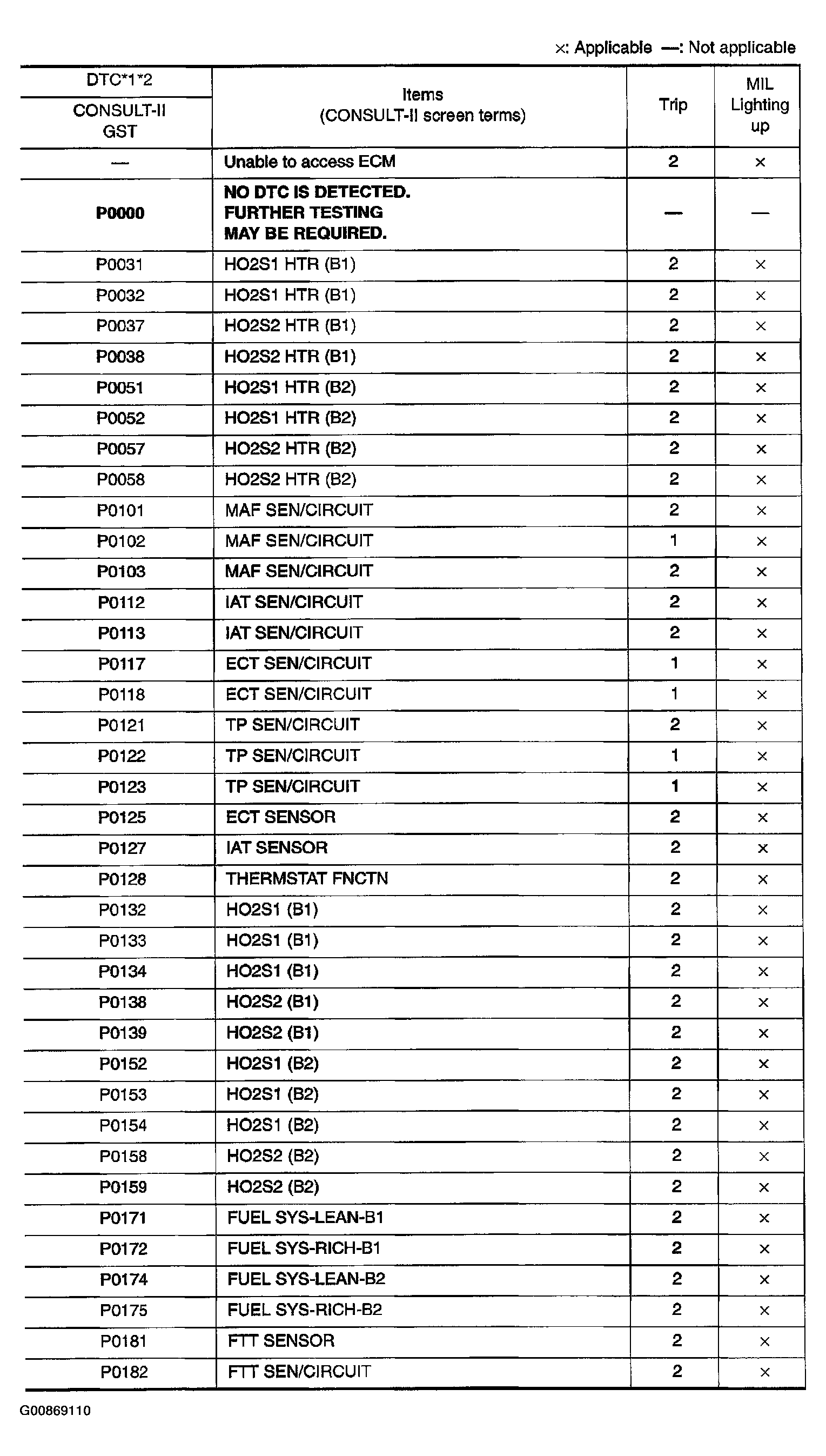

Fig 1: DTC No. Index (1 Of 3)
G00869110Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: DTC No. Index (2 Of 3)
G00869111Courtesy of NISSAN MOTOR CO., U.S.A.

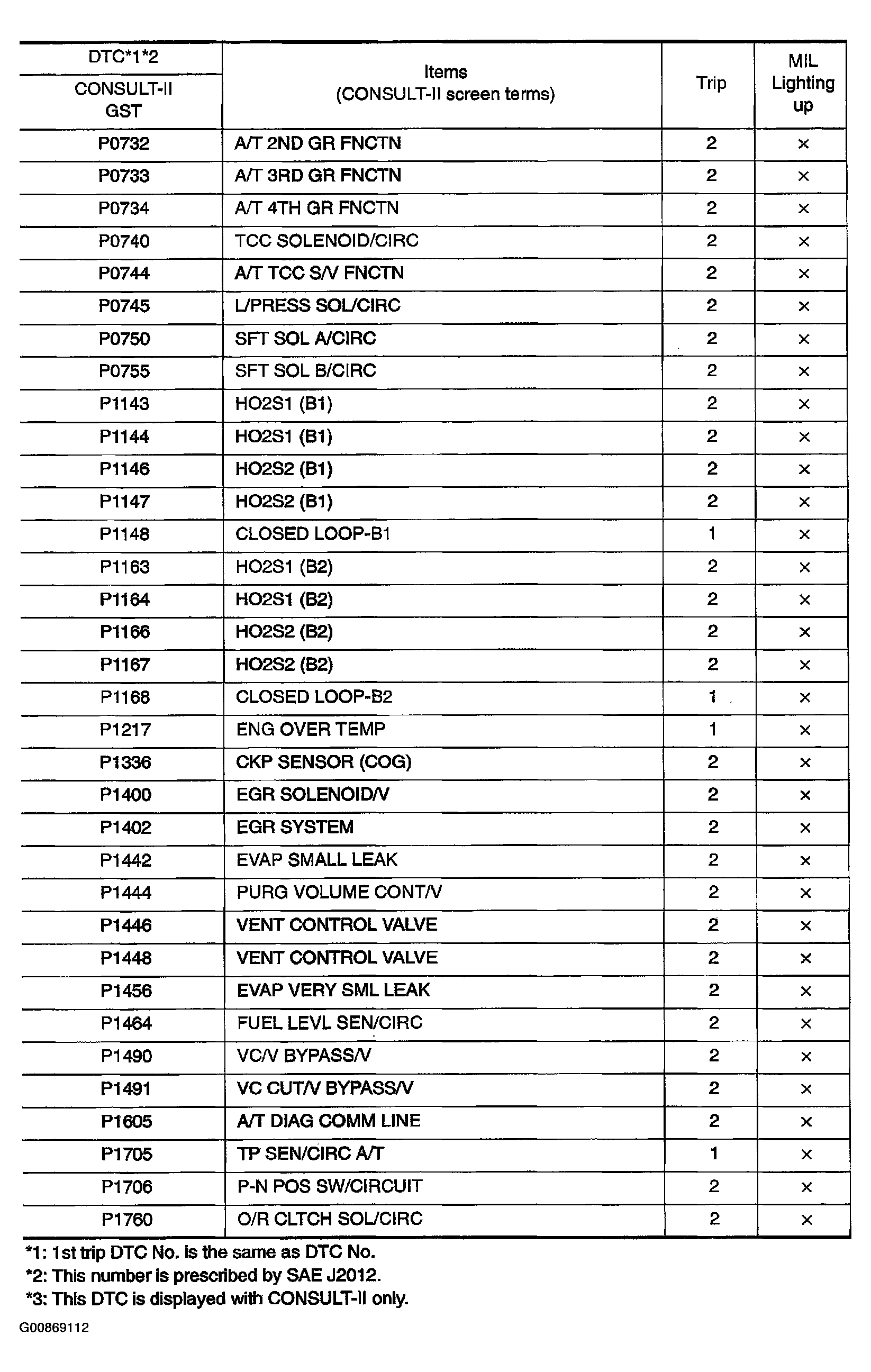

Fig 3: DTC No. Index (3 Of 3)
G00869112Courtesy of NISSAN MOTOR CO., U.S.A.
