Engine Control System - VG33E
>>
Engine Control System
>>
Vacuum Hose Drawing
Vacuum Hose Drawing

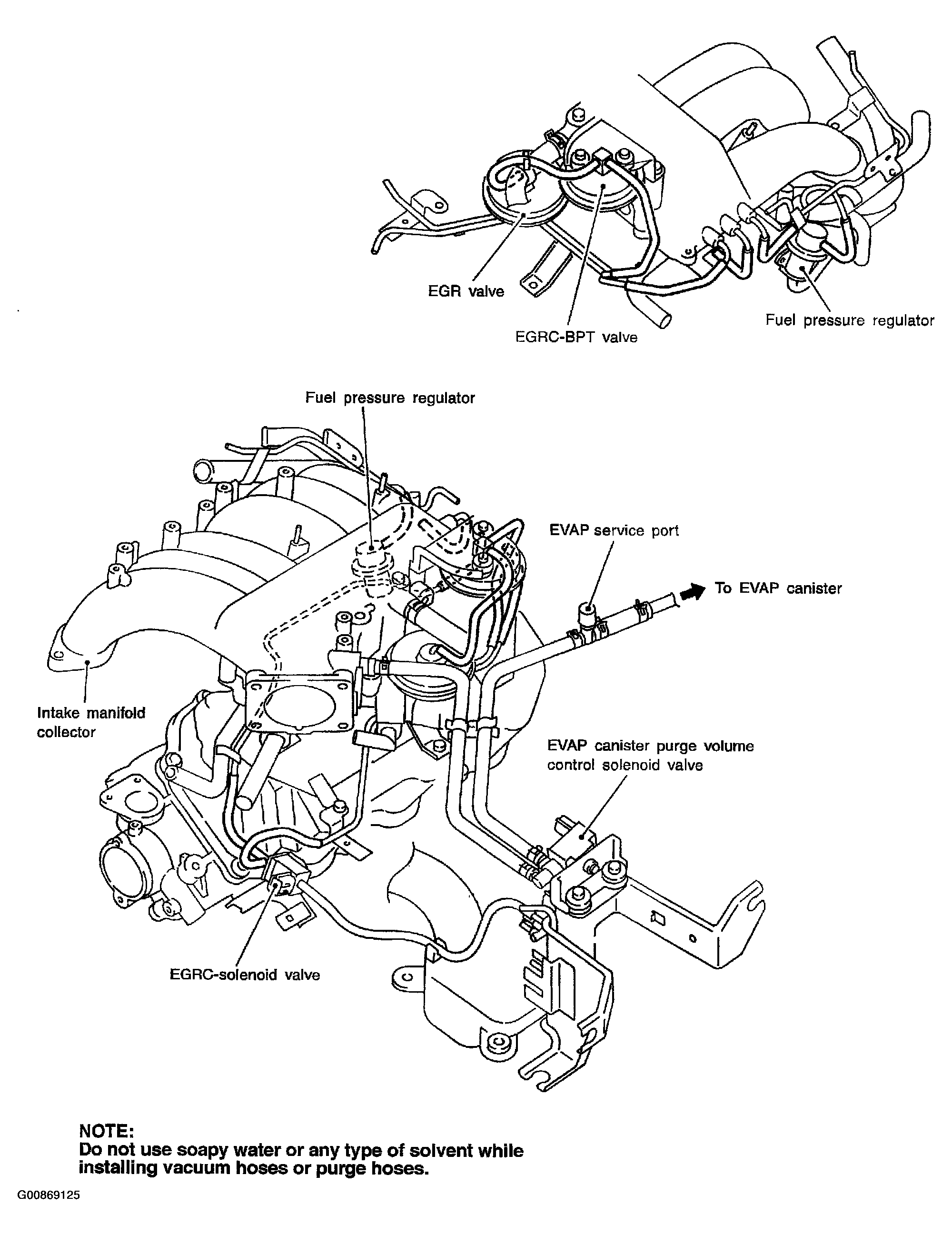

Fig 1: Identifying Vacuum Hose Routing
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
System Diagram
