Home >> Nissan-Datsun >> 2004 >> Xterra SE, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - VG33E >> DTC P0402: EGRC-BPT Valve Function >> Description >> Notes

DTC P0402: EGRC-BPT Valve Function: Description: Notes

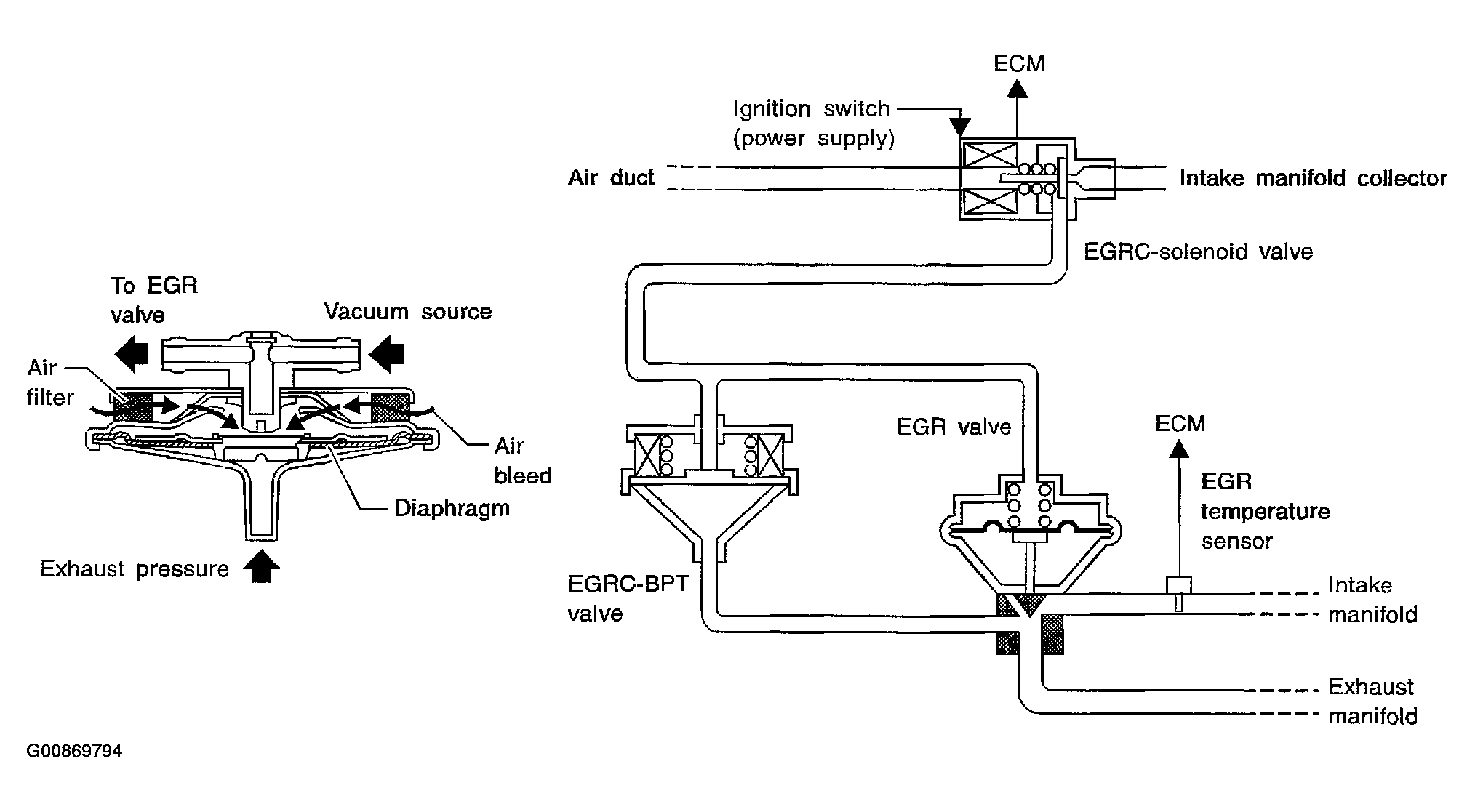

Fig 1: Valve Function Description

G00869794

Courtesy of NISSAN MOTOR CO., U.S.A.
