Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  3. Turn ignition switch ON.
  4. Touch "START" on display.

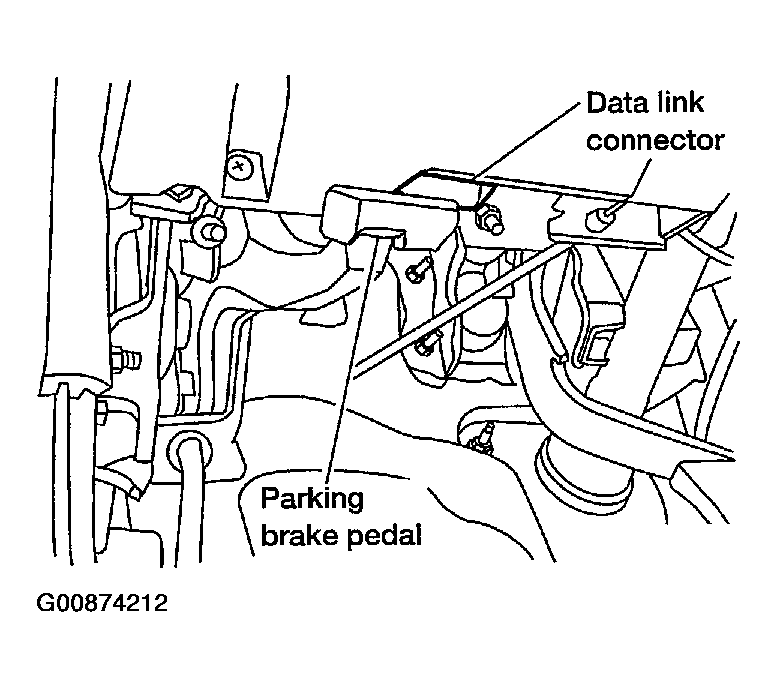

    Fig 1: Connecting Consult-II To Data Link Connector
    G00874212Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS" on display.
    Fig 2: Displaying ABS
    G00874213Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".
    Fig 3: Displaying Data Monitor
    G00874214Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Return to monitor item selection screen and touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU". Refer to Display Item List  .
  8. Touch "START".
  9. Screen of data monitor is displayed.
    Fig 4: Displaying Screen Of Data Monitor
    G00874215Courtesy of NISSAN MOTOR CO., U.S.A.
