Vehicle Speed When Shifting Gears Throttle Position

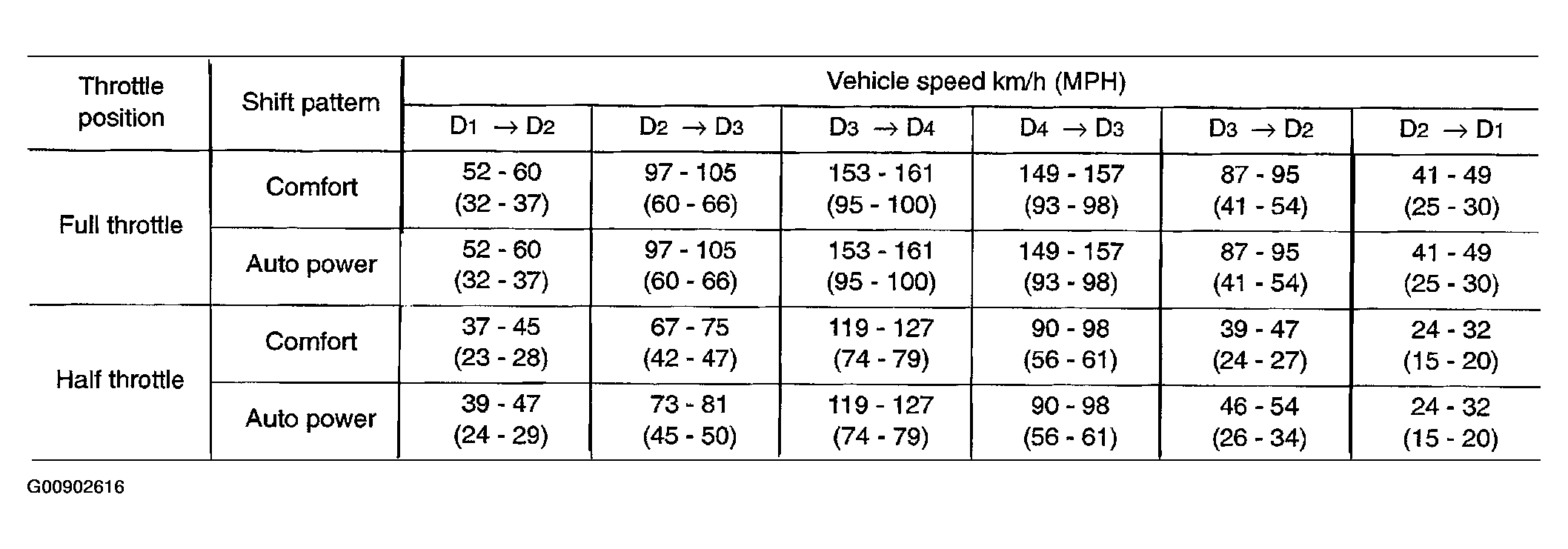

Fig 1: Shift Schedule Vehicle Speed When Shifting Gears Throttle Position Chart

G00902616

Courtesy of NISSAN MOTOR CO., U.S.A.
