Service Data And Specifications (SDS): Accumulator: O-Ring

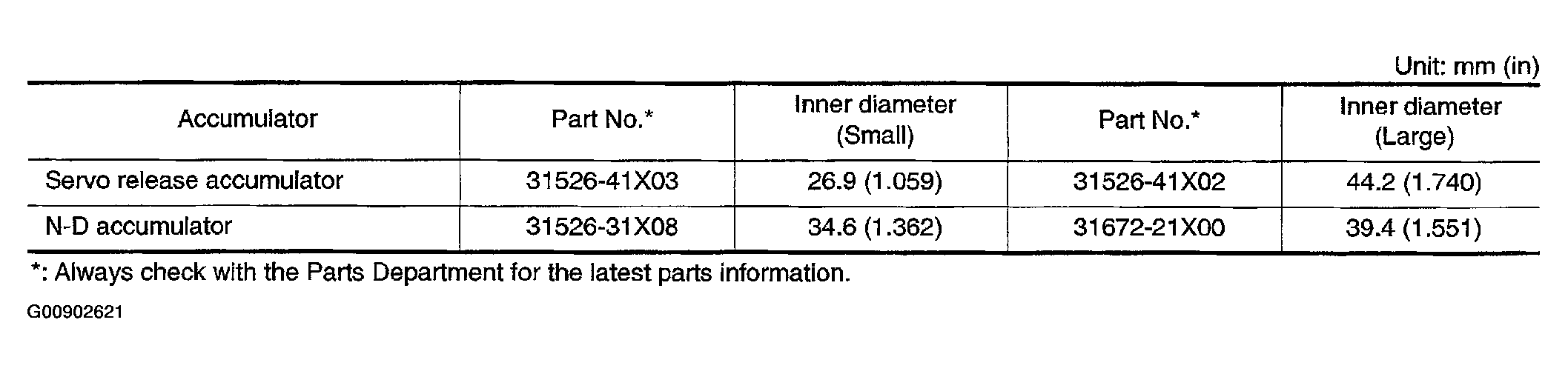

Fig 1: Accumulator O-Ring Specifications

G00902621

Courtesy of NISSAN MOTOR CO., U.S.A.
