Retainer Plate (Upper Body)

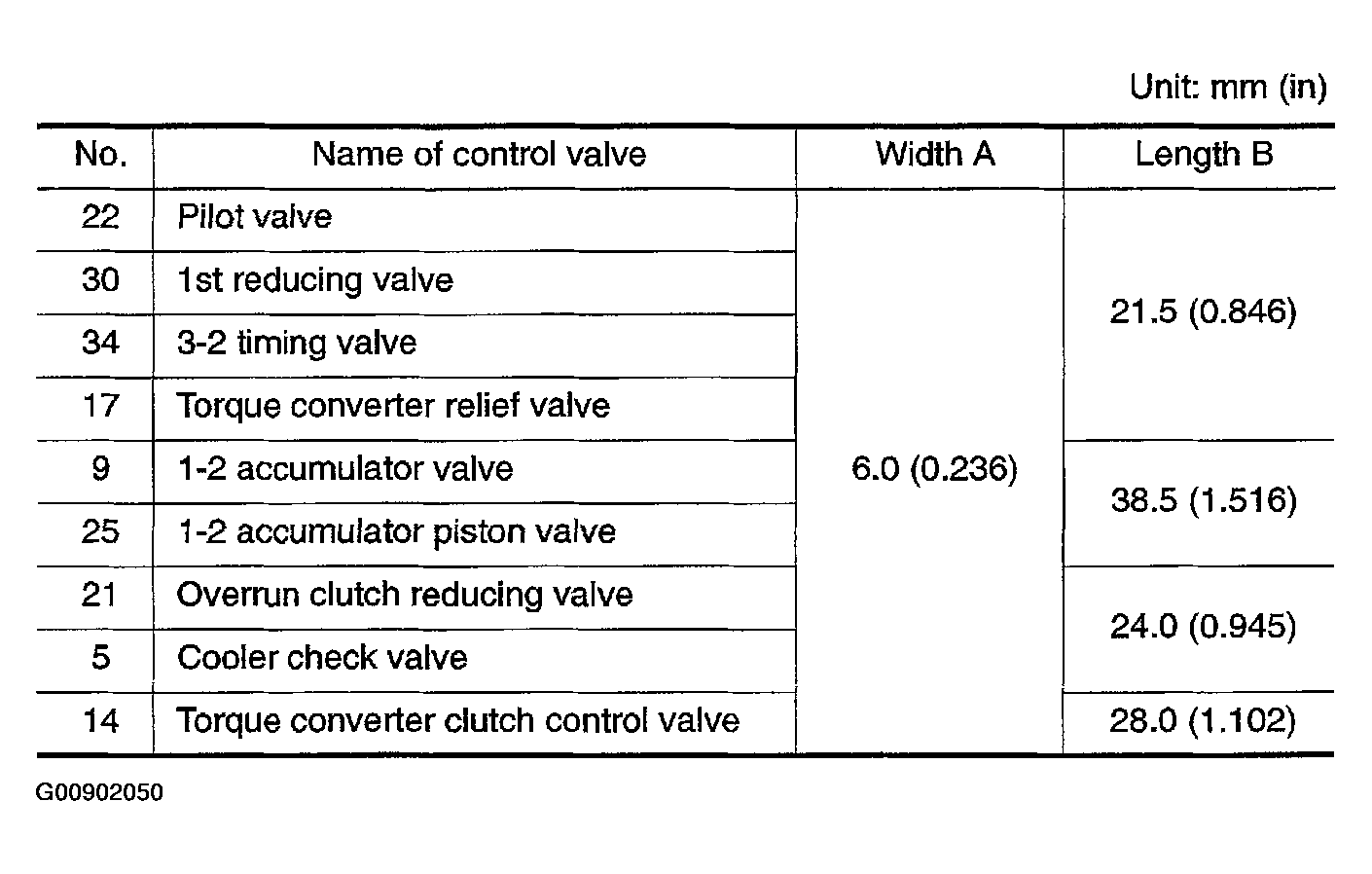

Fig 1: Retainer Plate Dimensions (For Control Valve Upper Body)
G00902050Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Retainer Plate Dimensions
G00902051Courtesy of NISSAN MOTOR CO., U.S.A.
