Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

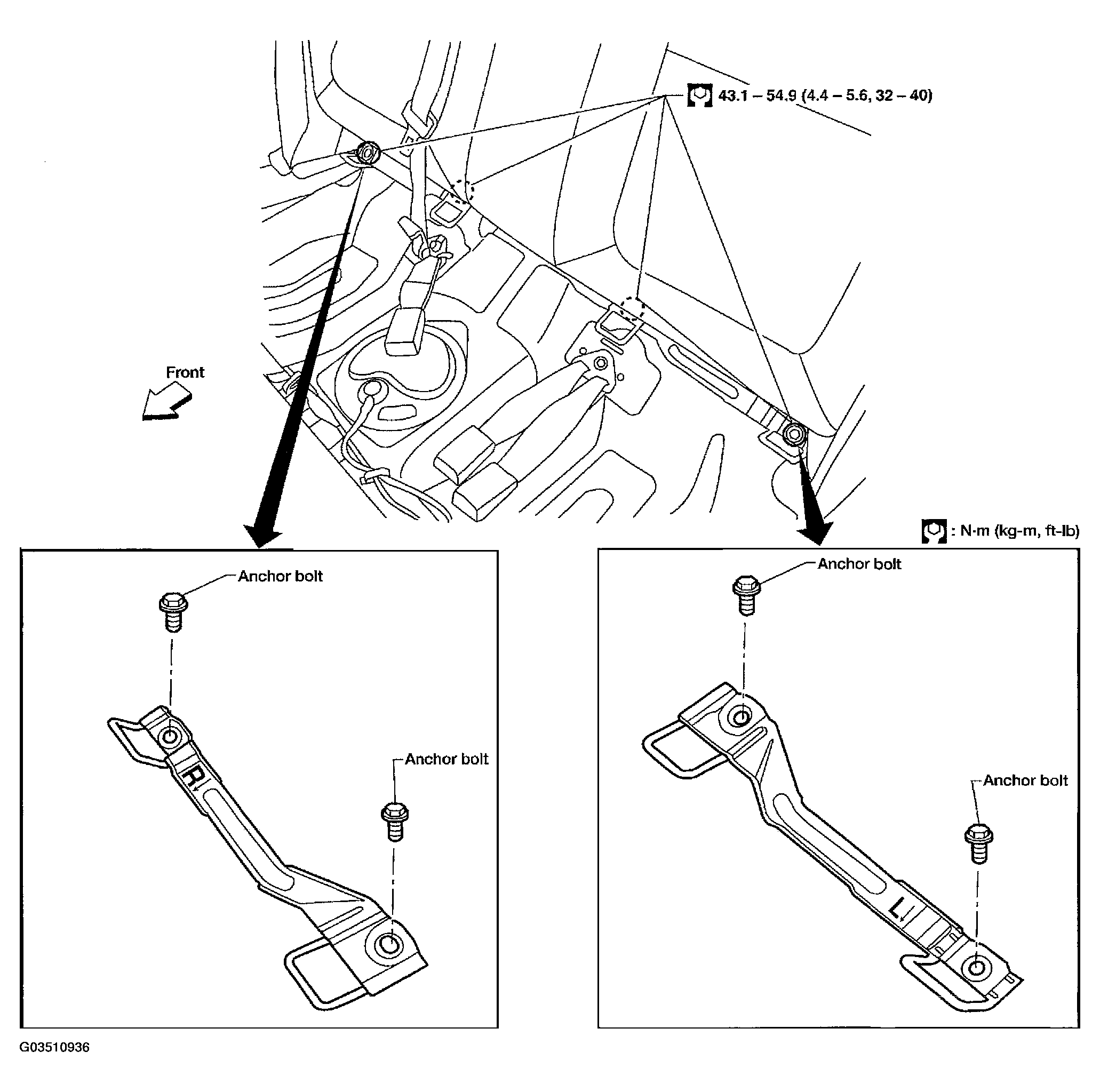

Fig 1: Removing Latch (Lower Anchors And Tether For Children) System
G03510936Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove rear seat cushion. Refer to "REAR SEAT " for details.
  2. Remove LH and RH LATCH System anchors.
NOTE: LH and RH LATCH System anchors are different.
Install with arrow facing forward.
