High Clutch: Assembly

• Take care with the direction of the oil seal.
• Apply ATF to both parts.

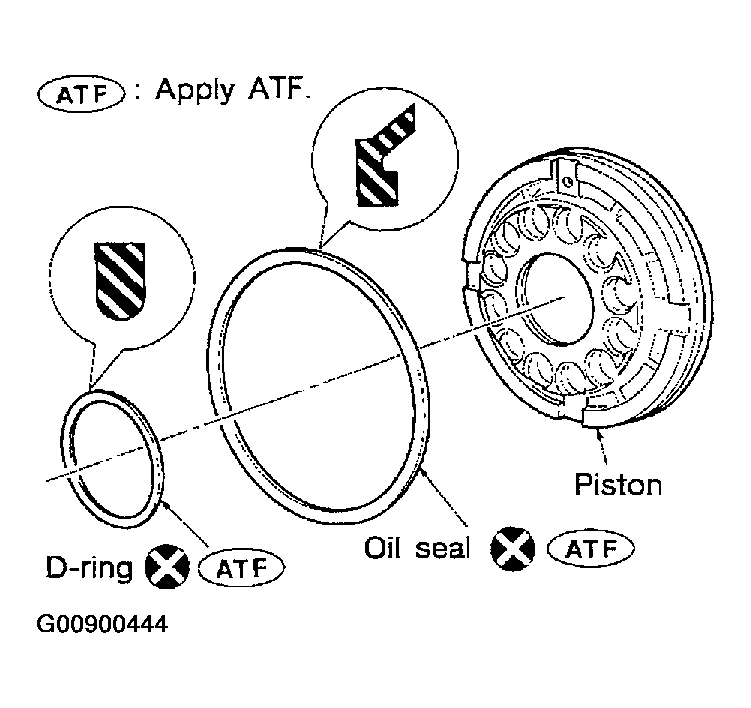

Fig 1: Installing D-Ring And Oil Seal On Piston

Courtesy of NISSAN MOTOR CO., U.S.A.

• Apply ATF to inner surface of drum.

Fig 2: Installing Piston Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Return spring:  Refer to "CLUTCH AND BRAKE RETURN SPRINGS ".

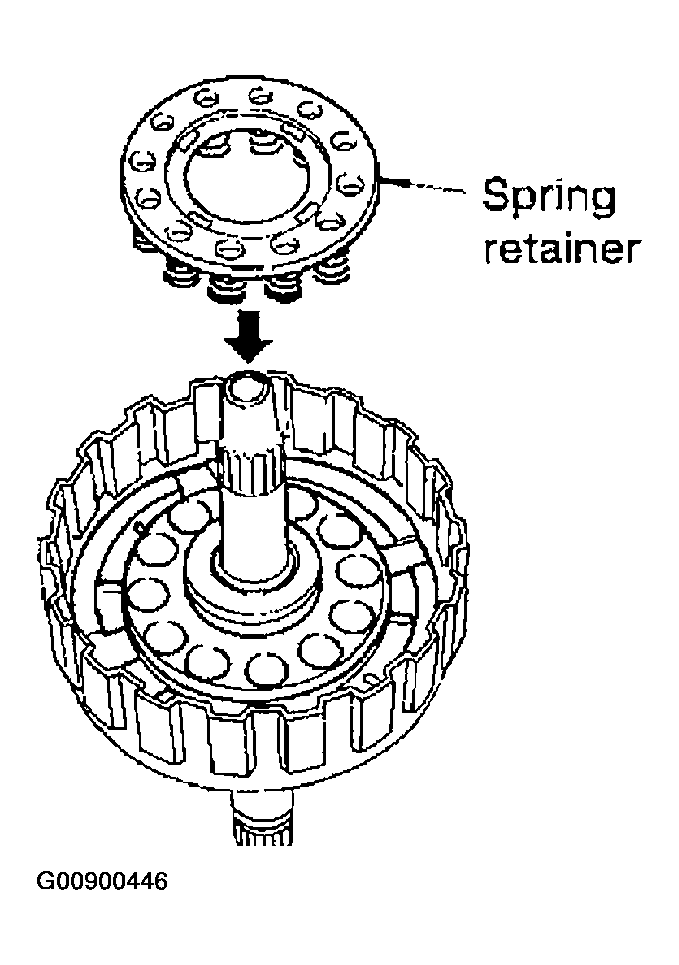

Fig 3: Installing Return Springs And Spring Retainer On Piston

Courtesy of NISSAN MOTOR CO., U.S.A.

• Set Tool directly above return springs.
• Do not expand snap ring excessively.
  Fig 4: Installing Snap Ring

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Do not align snap ring gap with spring retainer stopper.

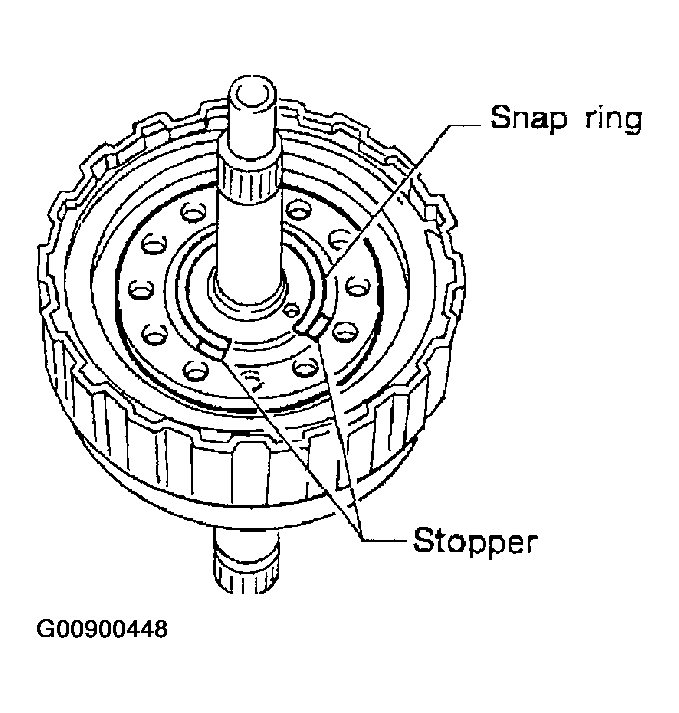

Fig 5: Identifying Snap Ring And Stopper

Courtesy of NISSAN MOTOR CO., U.S.A.

Take care with the order and direction of plates.

• Do not expand snap ring excessively.

Fig 6: Installing Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Specified clearance
2. Standard: 1.4 - 1.8 mm (0.055 - 0.071 in)
3. Allowable limit: 2.4 mm (0.094 in)
4. Retaining plate:  Refer to "HIGH CLUTCH ".

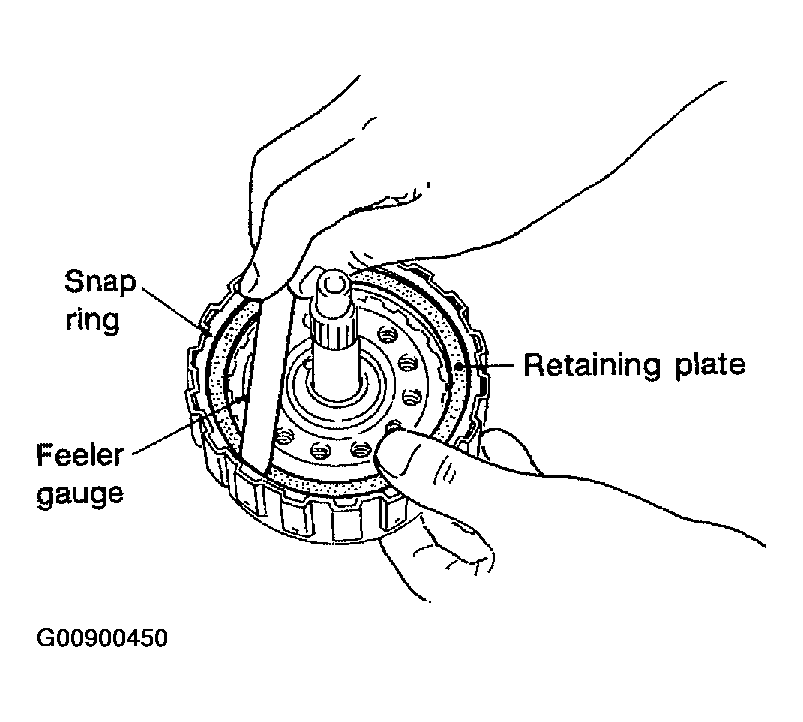

Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "HIGH CLUTCH ".

Fig 8: Checking Operation Of High Clutch

Courtesy of NISSAN MOTOR CO., U.S.A.

• Apply petroleum jelly to seal rings.
  Fig 9: Installing Seal Rings To Input Shaft

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Roll paper around seal rings to prevent seal rings from spreading.

Fig 10: Protecting Seal Rings

Courtesy of NISSAN MOTOR CO., U.S.A.
