Adjustment (2): Notes

WARNING: This page is about a different variant/trim than selected.

When any parts listed below are replaced, adjust total end play and reverse clutch end play.

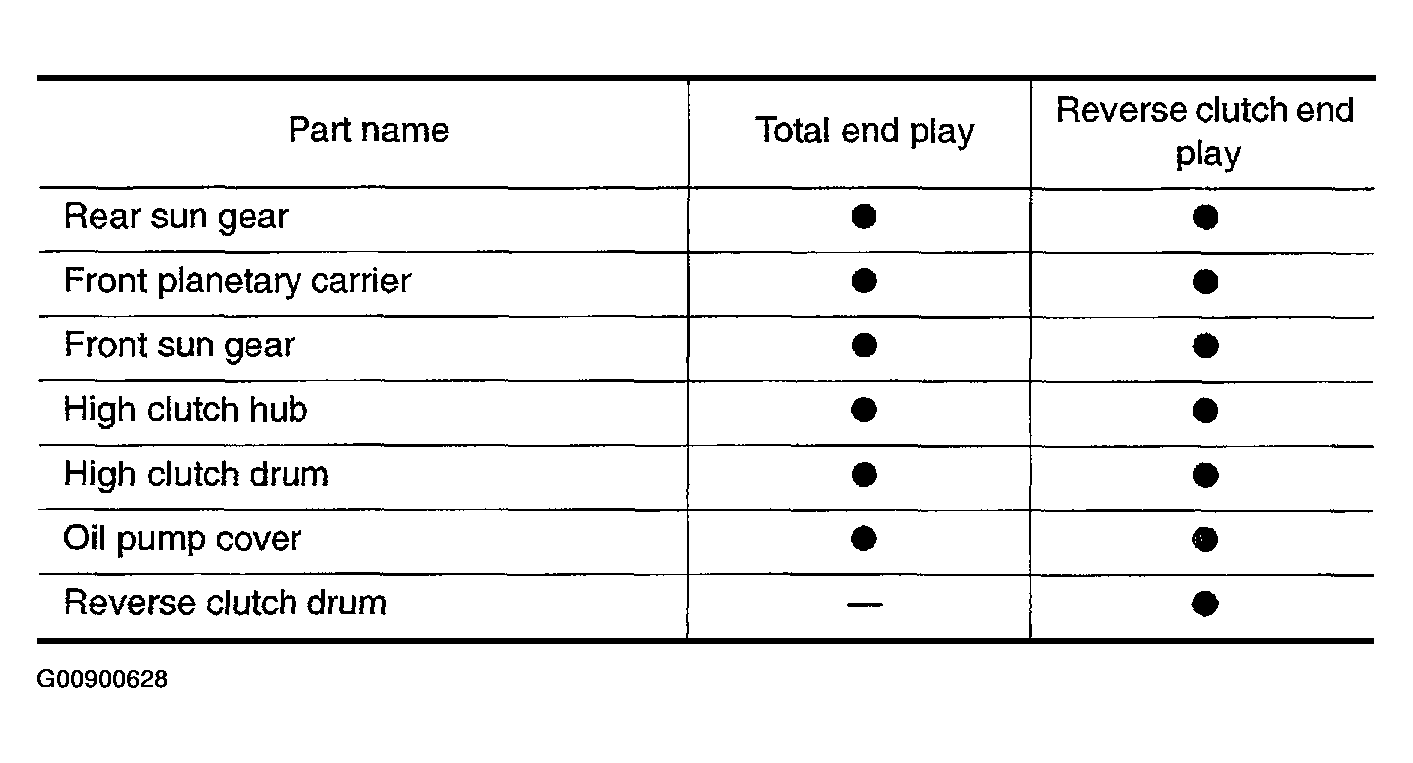

Fig 1: Total And Reverse Clutch End Play Adjustment Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Total And Reverse Clutch End Play Adjustment Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
