Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

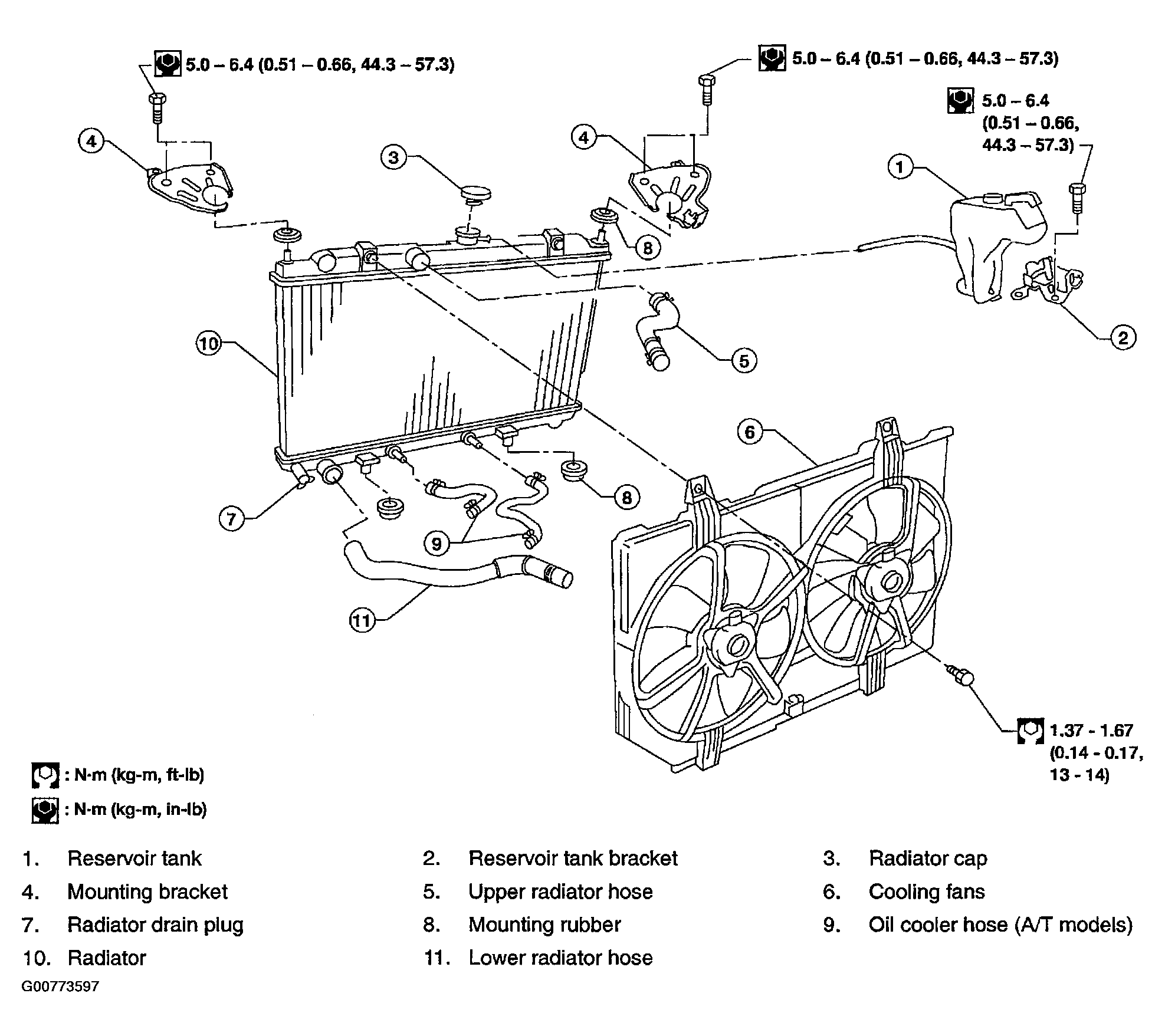

Fig 1: Identifying Radiator & Cooling Fans Components

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Never remove the radiator cap when the engine is hot. Serious burns can occur from high pressure coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and turn it a quarter of a turn to allow the built-up pressure to escape. Carefully remove the cap by pushing down and turning it the rest of the way.
