Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

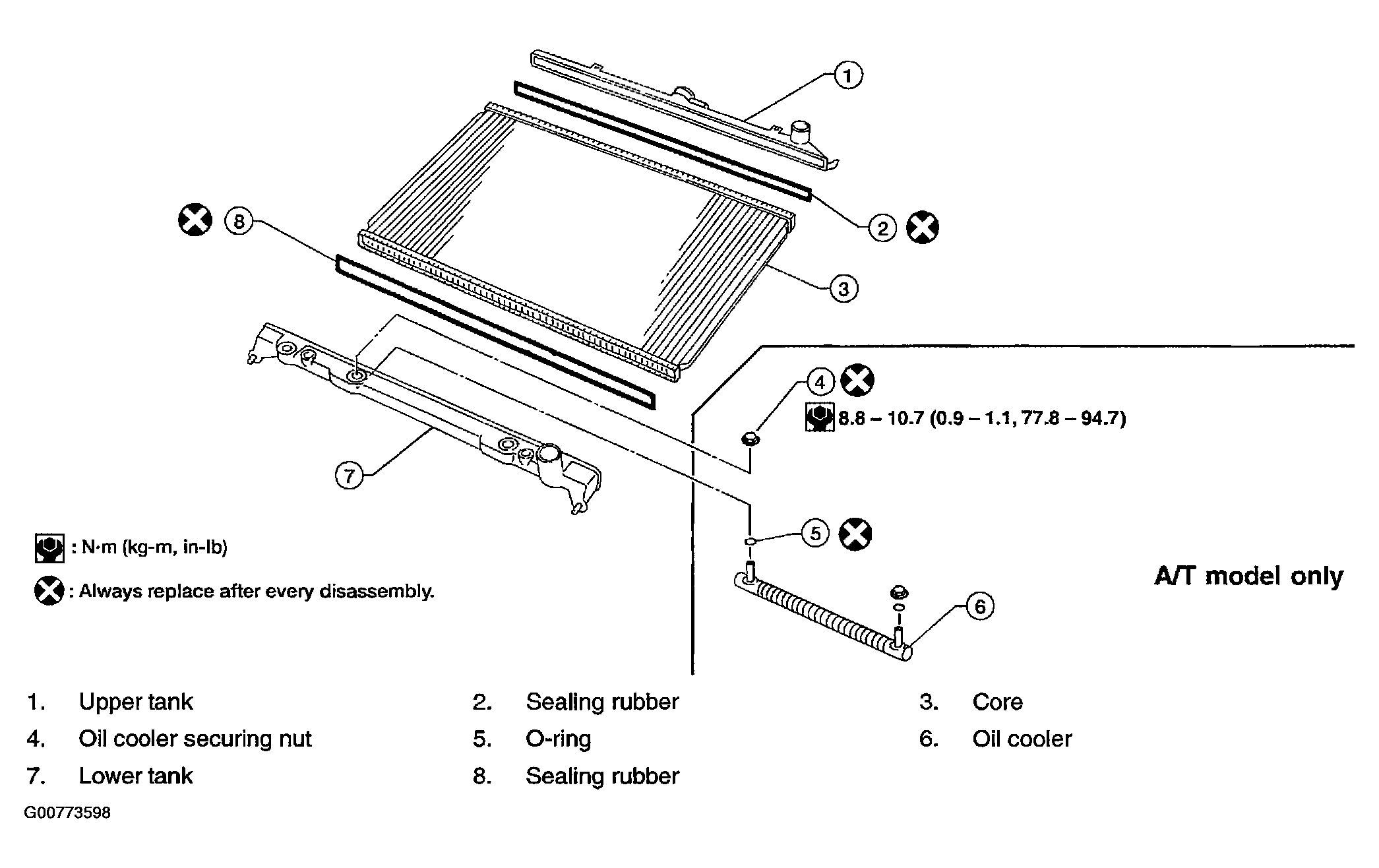

Fig 1: Identifying Radiator Assembly

G00773598

Courtesy of NISSAN MOTOR CO., U.S.A.
