Section 2 (Engine Lubrication - QG18DE)
>>
Lubrication System
>>
Lubrication Circuit
Lubrication Circuit
WARNING:
This page is about a different variant/trim than selected.

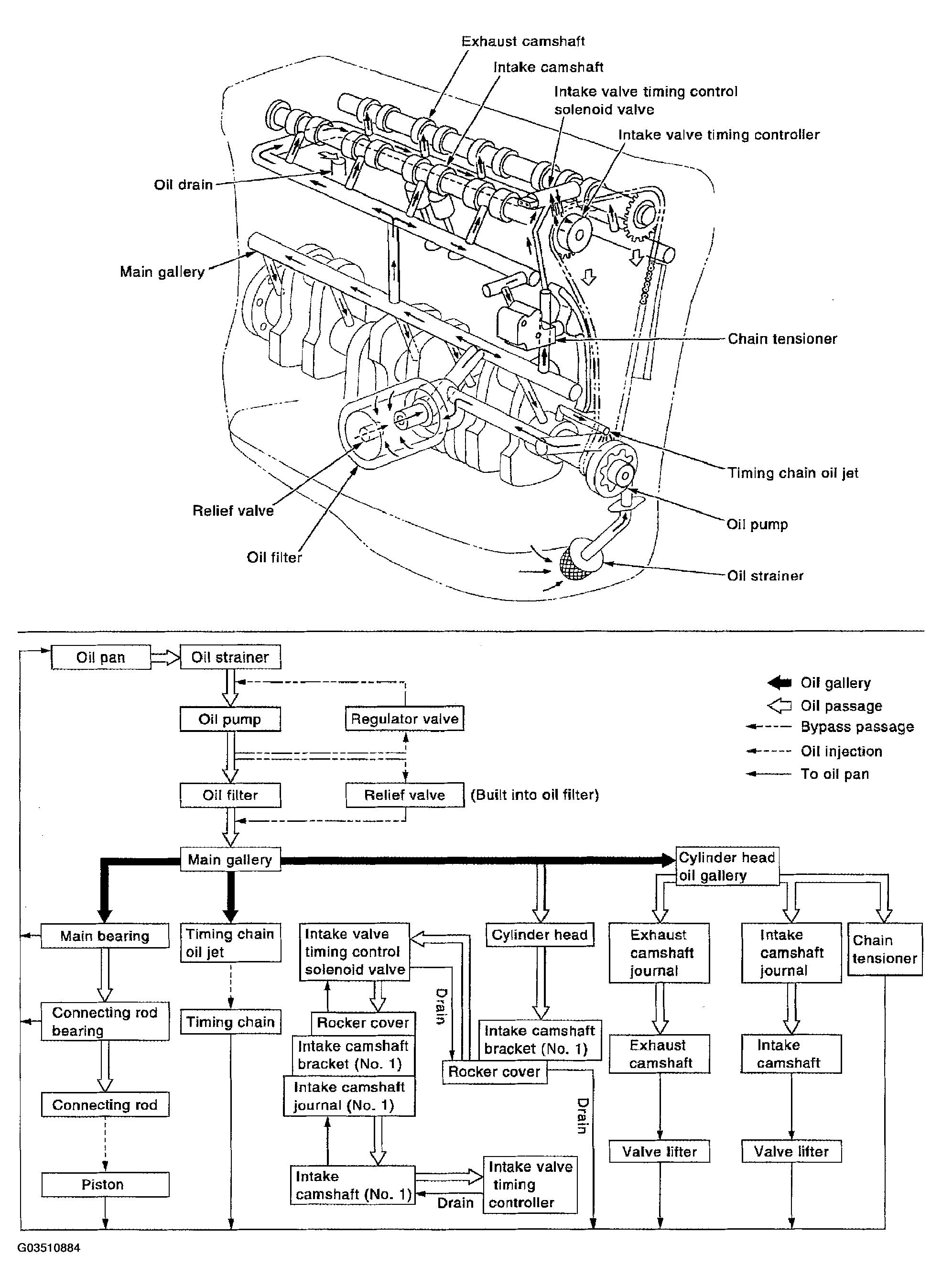

Fig 1: Identifying Lubrication Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
