Input/Output Signal Chart

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

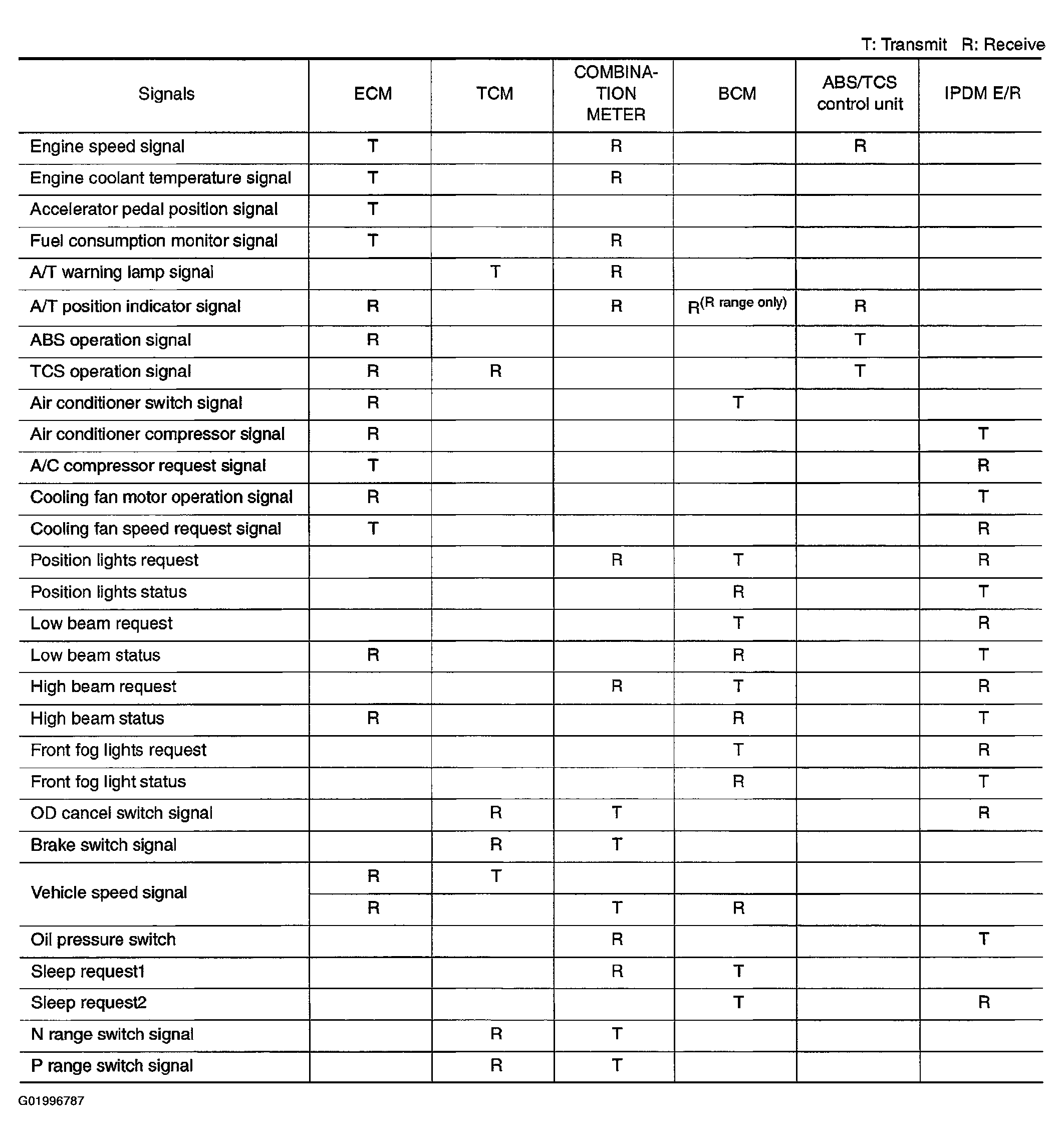

Fig 1: Input/Output Signal Chart (1 Of 2)
G01996787Courtesy of NISSAN MOTOR CO., U.S.A.

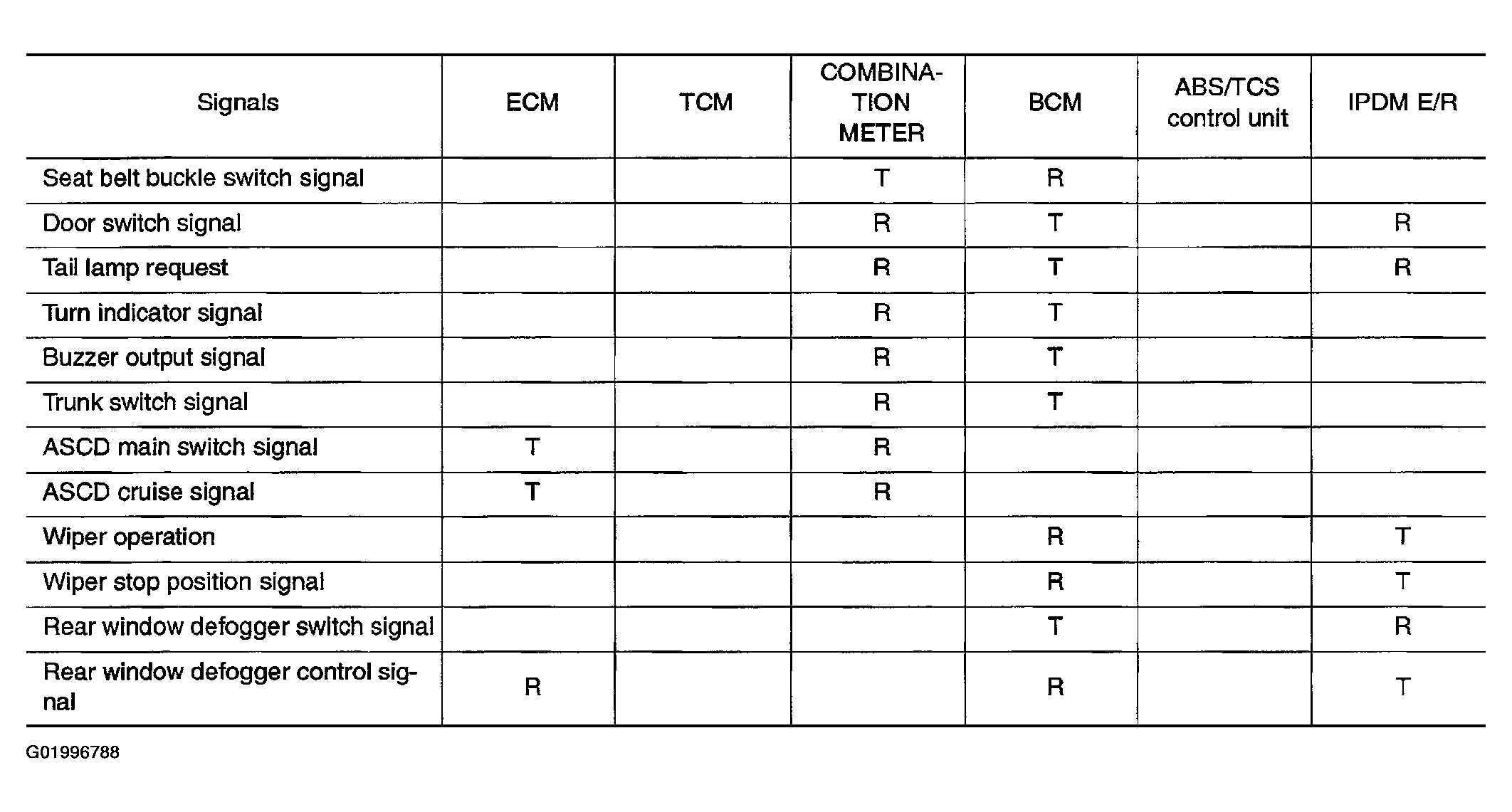

Fig 2: Input/Output Signal Chart (2 Of 2)
G01996788Courtesy of NISSAN MOTOR CO., U.S.A.
