Emission Control System (3MZ-FE): Location

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

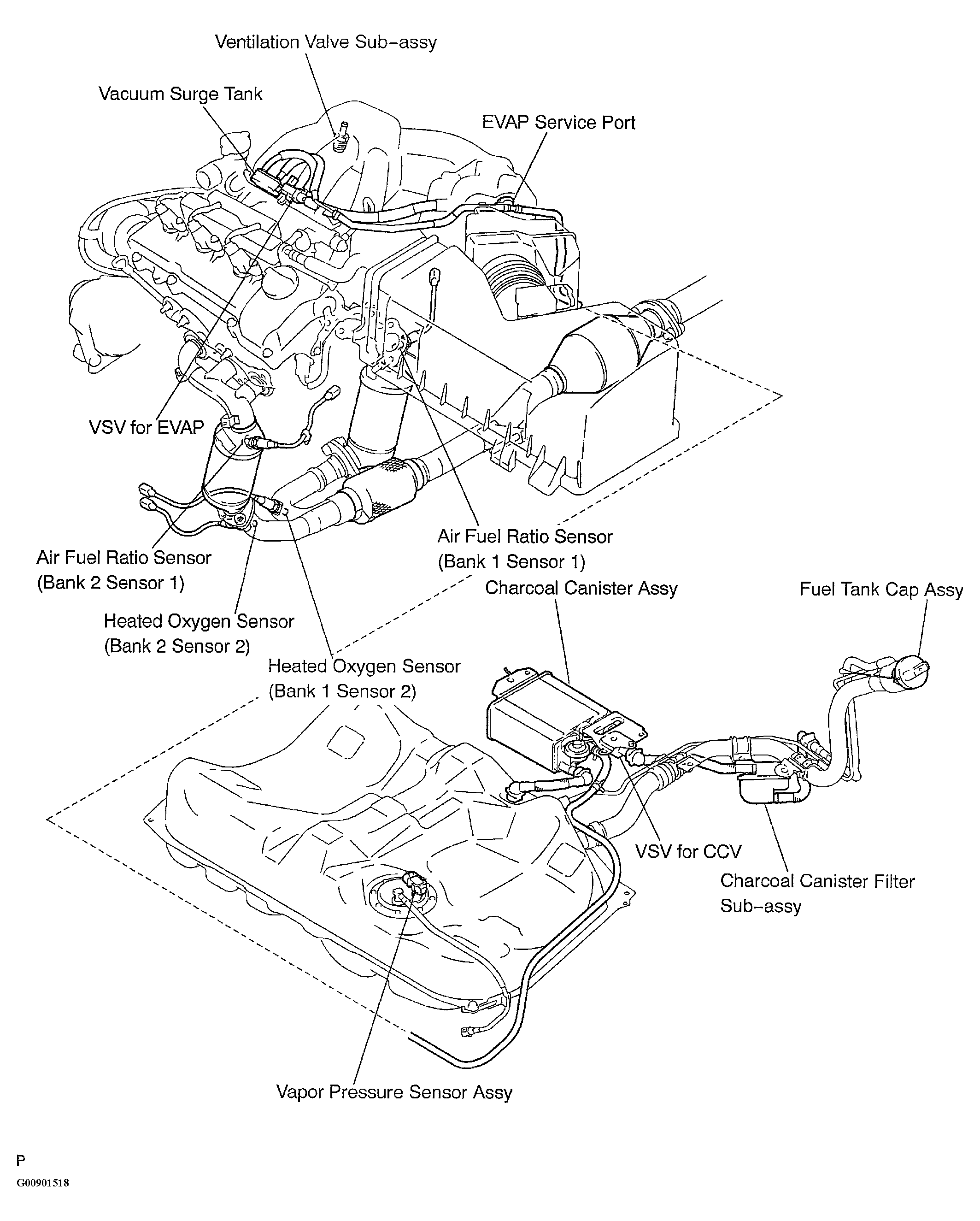

Fig 1: Identifying Emission Control System (3MZ-FE) Component (1 Of 2)
G00901518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

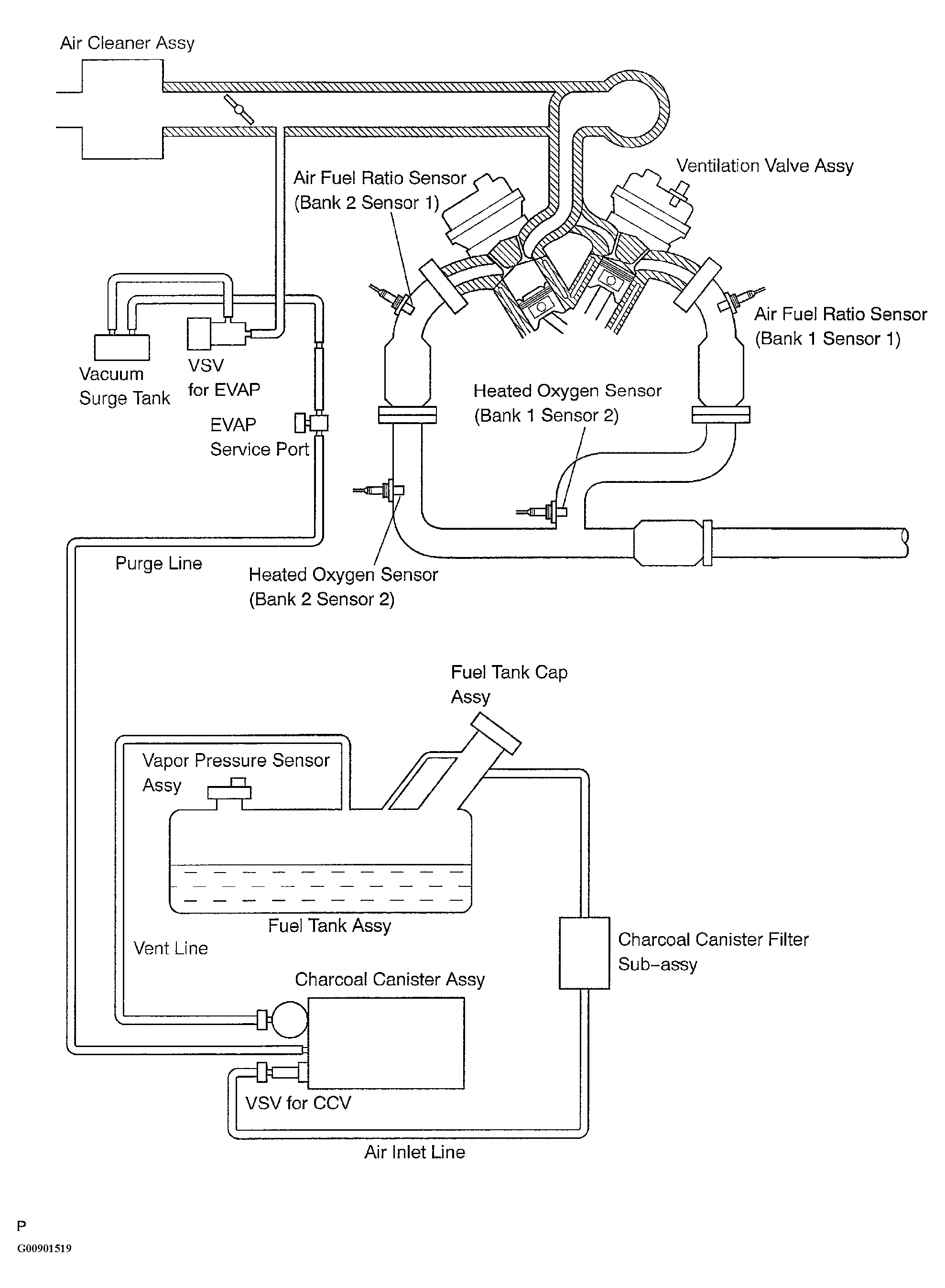

Fig 2: Identifying Emission Control System (3MZ-FE) Component (2 Of 2)
G00901519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
