Removal And Installation Of Combination Meter: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver's instrument lower cover. Refer to REMOVAL AND INSTALLATION .
  2. Remove column cover. Refer to REMOVAL AND INSTALLATION .
  3. Remove screws (2) and remove combination meter.

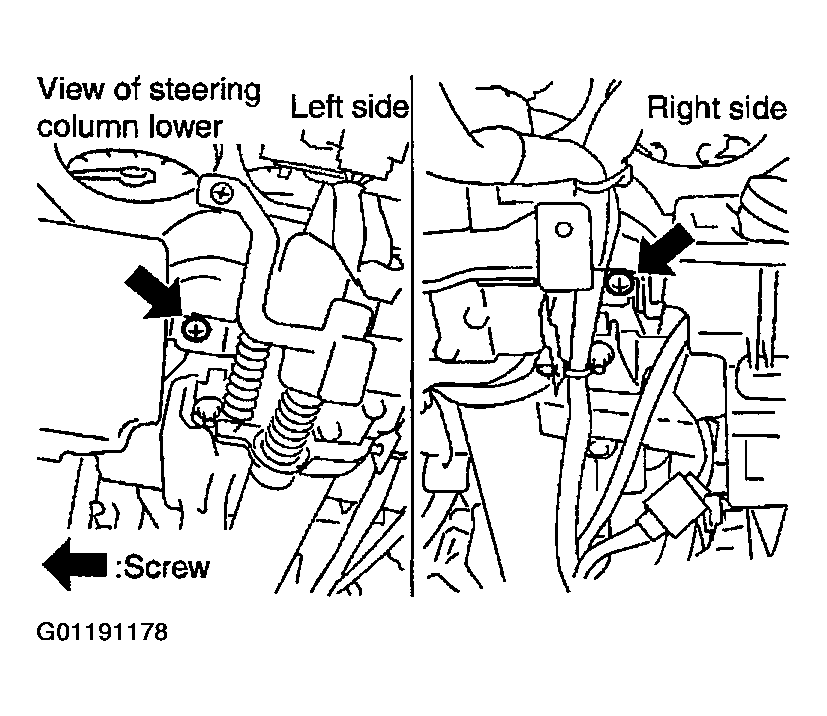

Fig 1: Locating Steering Column Lower Screw
G01191178Courtesy of NISSAN MOTOR CO., U.S.A.
