ODO/Trip Meter And Illumination Control Switch Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ODO/TRIP METER AND ILLUMINATION CONTROL SWITCH
1. Remove combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER .
2. Remove meter lid. Refer to DISASSEMBLY AND ASSEMBLY OF COMBINATION METER .
3. Check continuity between odo/trip meter and illumination control switch harness connector M303 terminals 3, 4 or 5 and 6.

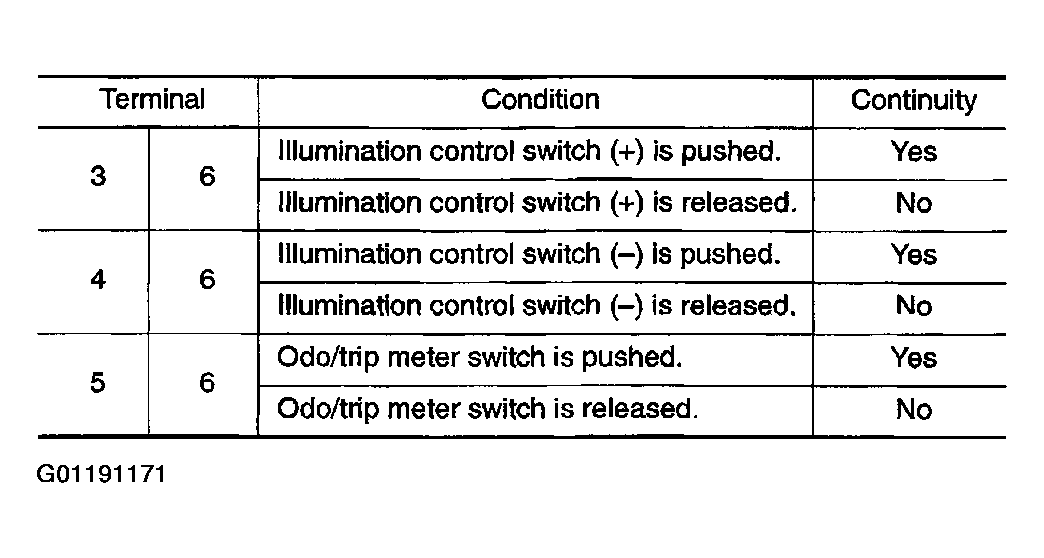

  Fig 1: Terminal Continuity Based On Conditions
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace the combination meter.
2. NG : Replace the odo/trip meter and illumination control switch.
Fig 2: Checking Continuity Between Odo/Trip Meter And Illumination Control Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
