CAN Communication System

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Checking procedure

INSPECTION START
WITH CONSULT-II

Check the self-diagnosis results with CONSULT-II.

Fig 1: CONSULT-II SELF-DIAG Results Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Status of CAN communications is OK?
1. YES: After printing out self-diagnosis results, go to 2.
2. NO: INSPECTION END
SYMPTOM CHECK
Check CAN diagnosis support monitor on data monitor.

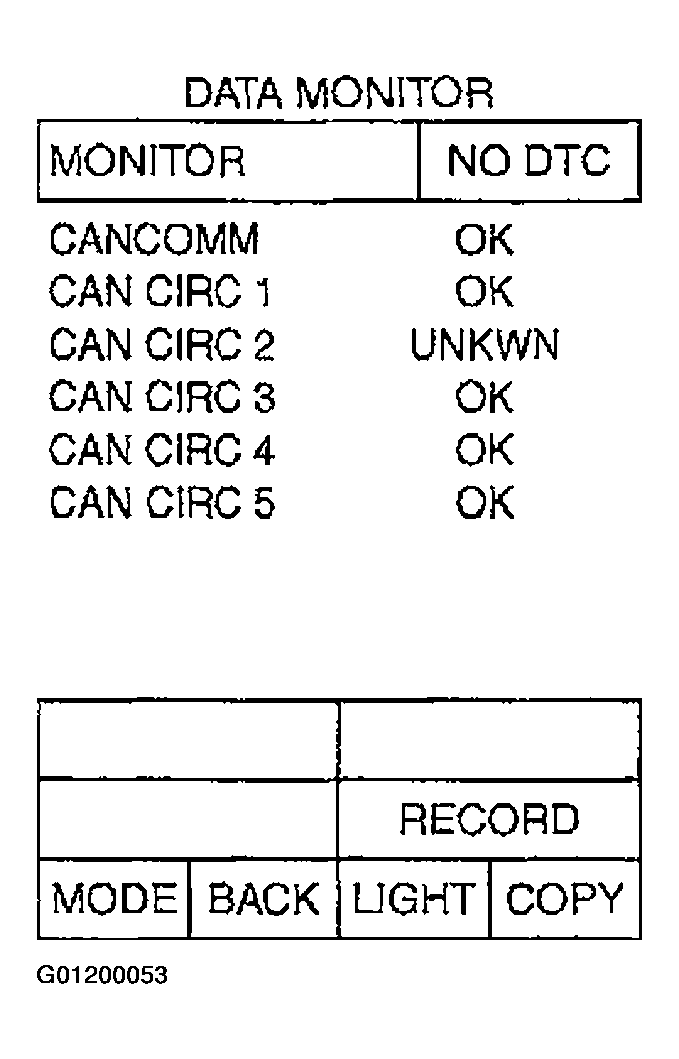

Fig 2: Symptom Check Table
Courtesy of NISSAN MOTOR CO., U.S.A.
1. After printing out monitor items, refer to PRECAUTIONS WHEN USING CONSULT-II .
