Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove undercover.
  2. Drain engine coolant.
    CAUTION:
    • Perform when the engine is cold.
  3. Remove air duct and radiator cover grills. Refer to REMOVAL AND INSTALLATION .
  4. Disconnect CVT fluid cooler hoses.
    • Install plug to avoid leakage of CVT fluid.
  5. Remove reservoir tank and bracket.
  6. Disconnect upper and lower radiator hoses.
  7. Remove battery and battery tray, and move fuse box aside.
  8. Remove radiator cooling fan assembly.
  9. Remove radiator upper clips by pulling the tabs outside to release the lock.

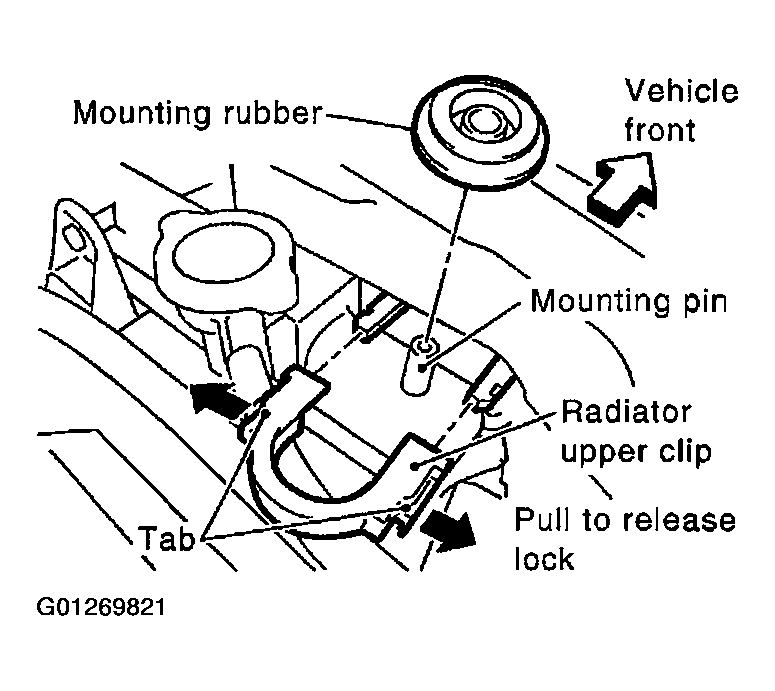

    Fig 1: Removing Radiator Upper Clips
    G01269821Courtesy of NISSAN MOTOR CO., U.S.A.

    Do not pull the tabs outside excessively to prevent it from damaging.

  10. Remove mounting rubbers from the mounting pins on the radiator.
  11. Lift up and remove the radiator.
    CAUTION:
    • Do not damage or scratch air conditioner condenser and radiator core when removing.
