Band Servo Piston Assembly: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install O-rings onto servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to position of each O-ring.

  Fig 1: Installing O-Rings Onto Servo Piston Retainer And Applying ATF
  Courtesy of NISSAN MOTOR CO., U.S.A.

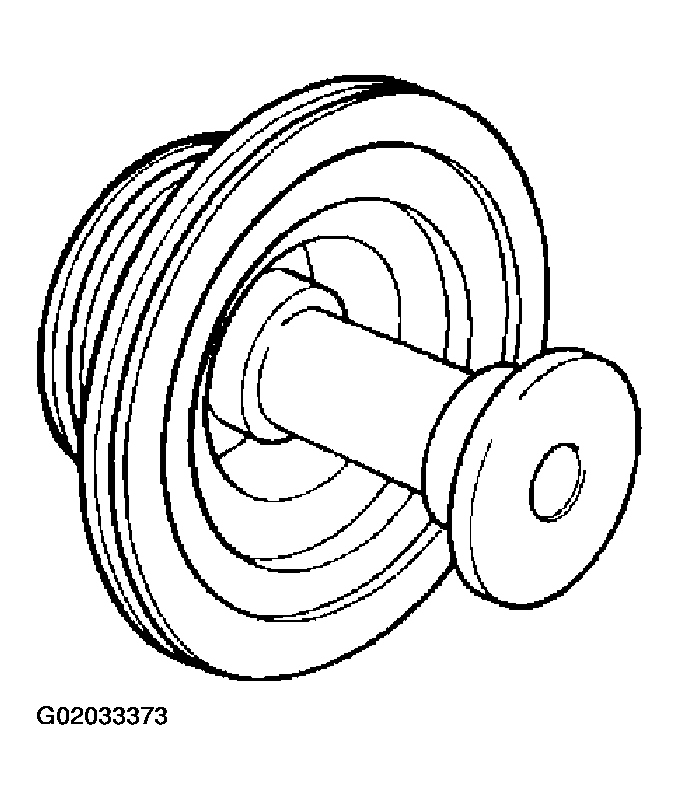

Install servo cushion spring retainer onto band servo piston.

Fig 2: Installing Servo Cushion Spring Retainer Onto Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install E-ring onto servo cushion spring retainer.

Fig 3: Installing E-Ring Onto Servo Cushion Spring Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

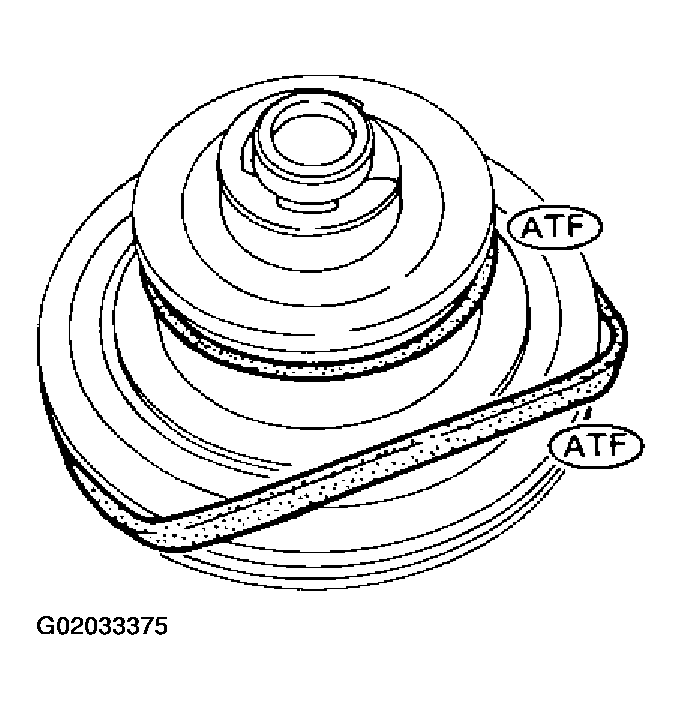

Install D-rings onto band servo piston.
- Apply ATF to D-rings.

  Fig 4: Installing D-Rings Onto Band Servo Piston And Applying ATF
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install servo piston spring retainer, return spring C and piston stem onto band servo piston.

Fig 5: Installing Servo Piston Spring Retainer, Return Spring C And Piston Stem Onto Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

Fig 6: Installing E-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

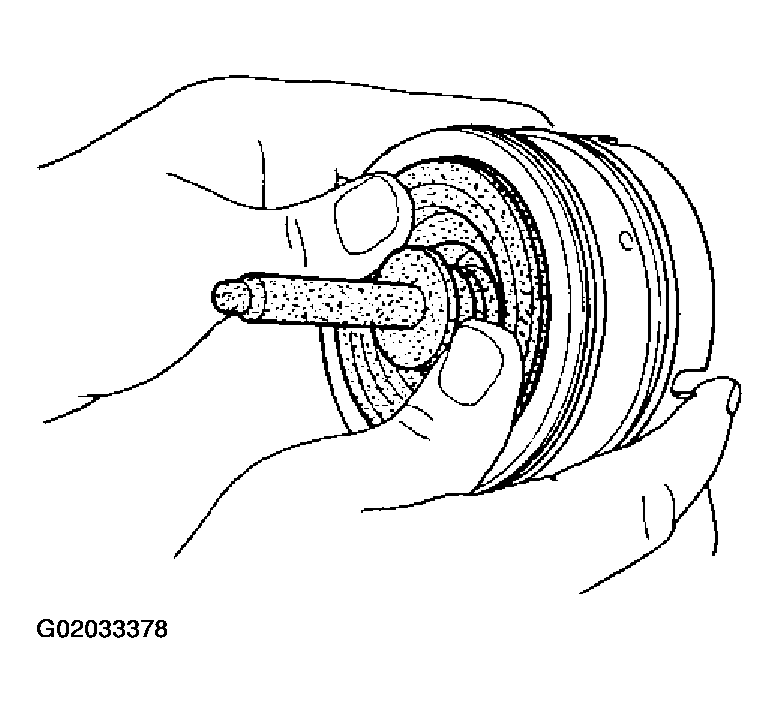

Install band servo piston assembly onto servo piston retainer by pushing it inward.

Fig 7: Installing Band Servo Piston Assembly Onto Servo Piston Retainer By Pushing It Inward
Courtesy of NISSAN MOTOR CO., U.S.A.
Install D-ring on OD band servo piston.
- Apply ATF to D-ring.

  Fig 8: Install D-Ring On OD Band Servo Piston And Applying ATF
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install OD band servo piston onto servo piston retainer by pushing it inward.

Fig 9: Installing OD Band Servo Piston Onto Servo Piston Retainer By Pushing It Inward
Courtesy of NISSAN MOTOR CO., U.S.A.
