Contents of Switch Working: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Priority of each switch is as follows.

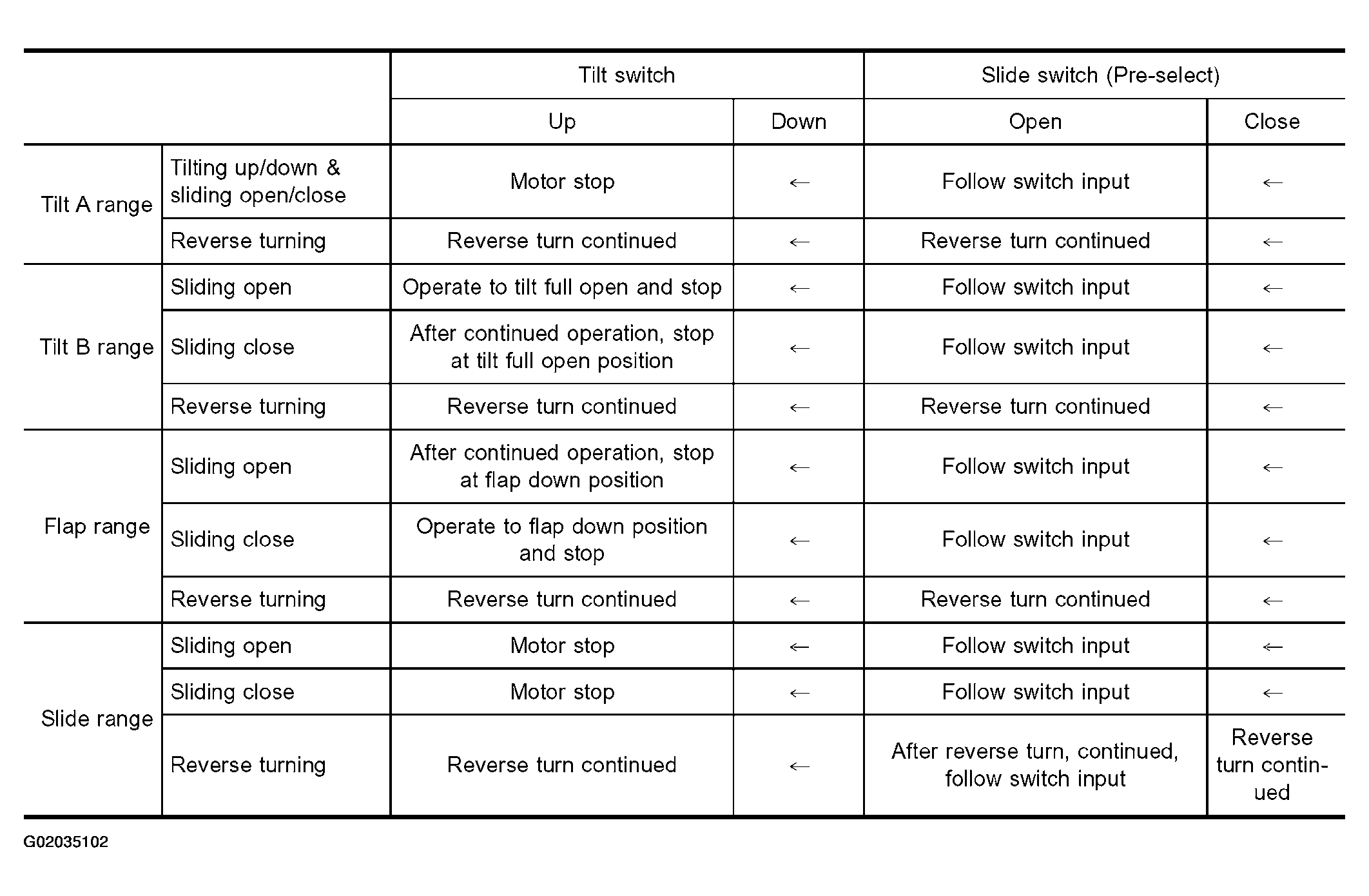

Fig 1: Contents Of Switch Working Chart
G02035102Courtesy of NISSAN MOTOR CO., U.S.A.
