Transfer Switch Assembly Sub-Harness Connector

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals shown in the figure.

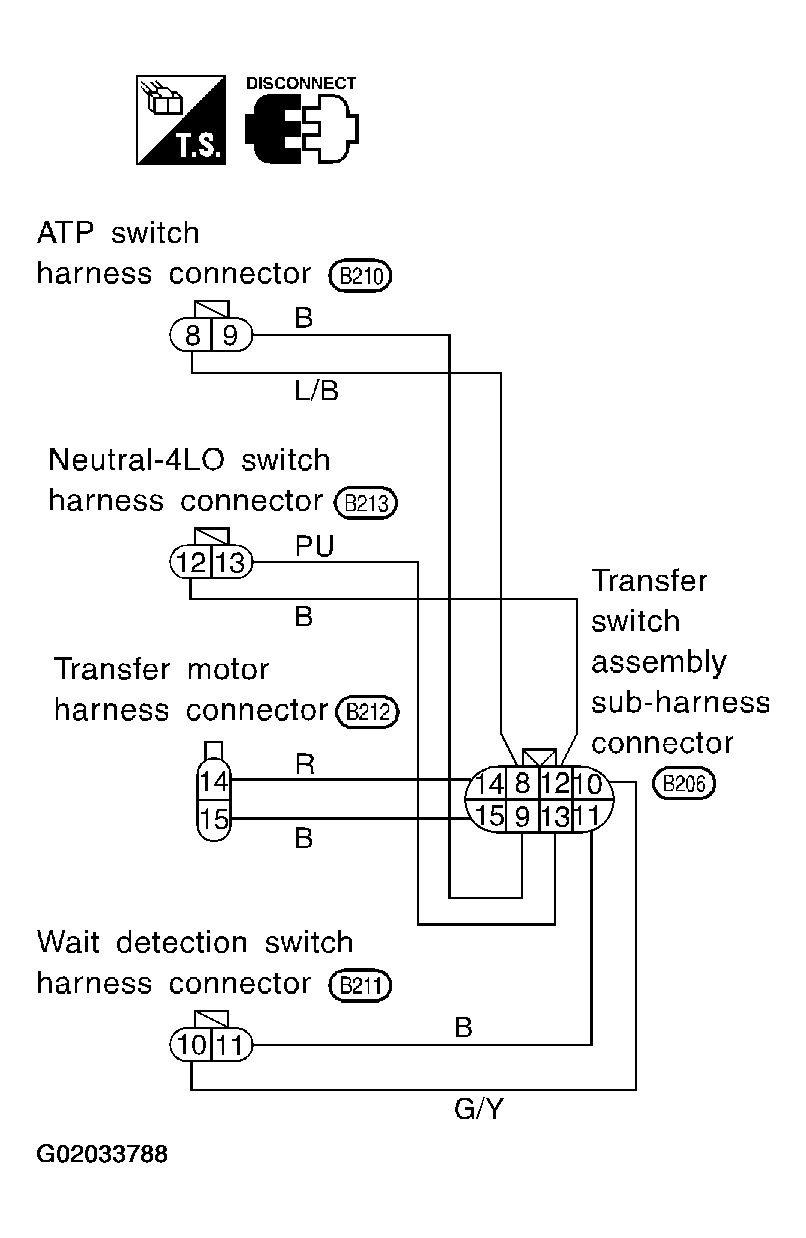

Fig 1: Checking Continuity Between Transfer Switch Assembly Sub-Harness Connector Terminals
G02033788Courtesy of NISSAN MOTOR CO., U.S.A.
