Hydraulic Control Circuits

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

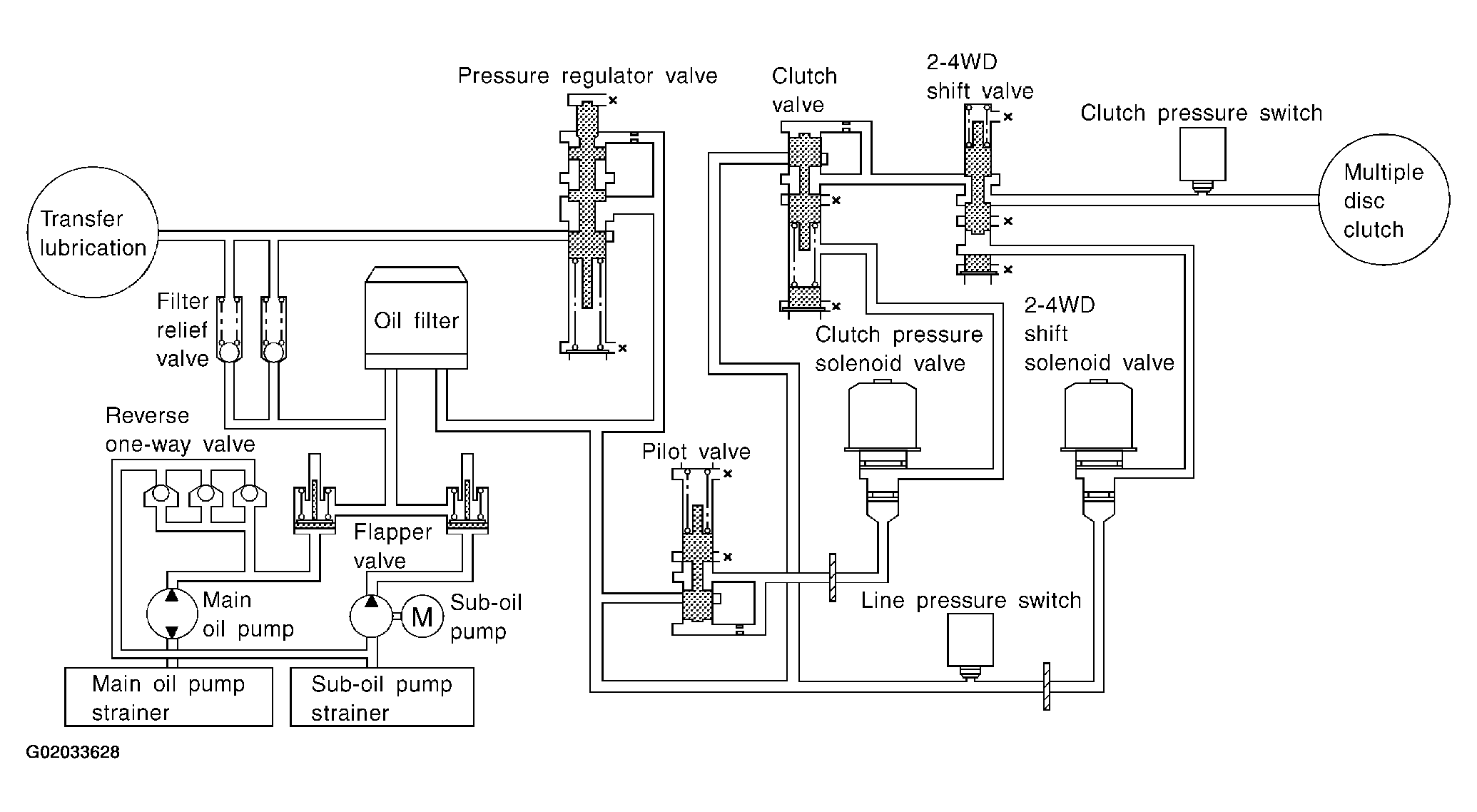

Fig 1: All-Mode 4WD System Hydraulic Control Circuits
G02033628Courtesy of NISSAN MOTOR CO., U.S.A.
