Tweeter Speaker

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove windshield garnish molding. Refer to "BODY SIDE TRIM ".
  2. Remove tweeter speaker by gently prying away from A pillar.
  3. Disconnect tweeter speaker connector.

    Install in the reverse order of removal.

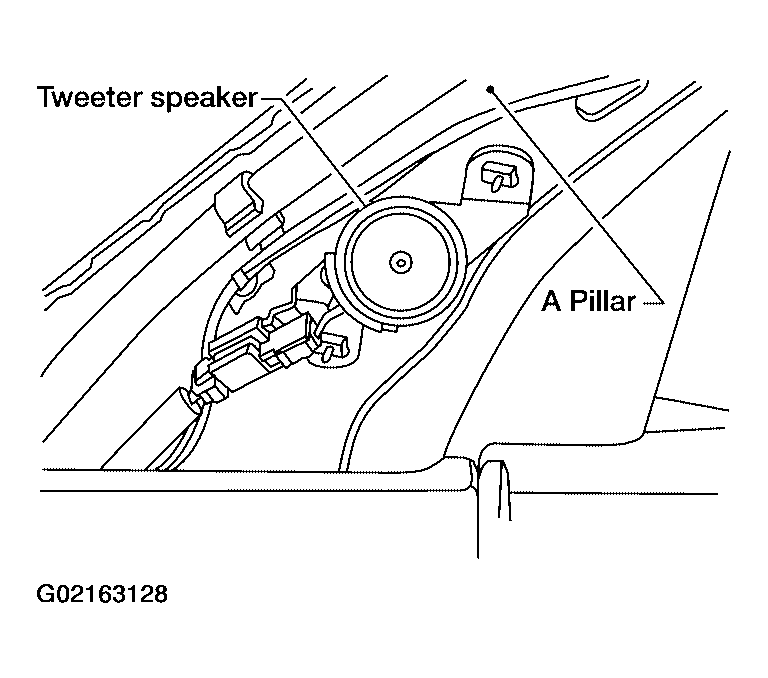

    Fig 1: Removing/Installing Tweeter Speaker
    G02163128Courtesy of NISSAN MOTOR CO., U.S.A.
