Overview of Control system

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The control system consists of input sensors, switches, the automatic amplifier (microcomputer) and outputs. The relationship of these components is shown in Fig 1:

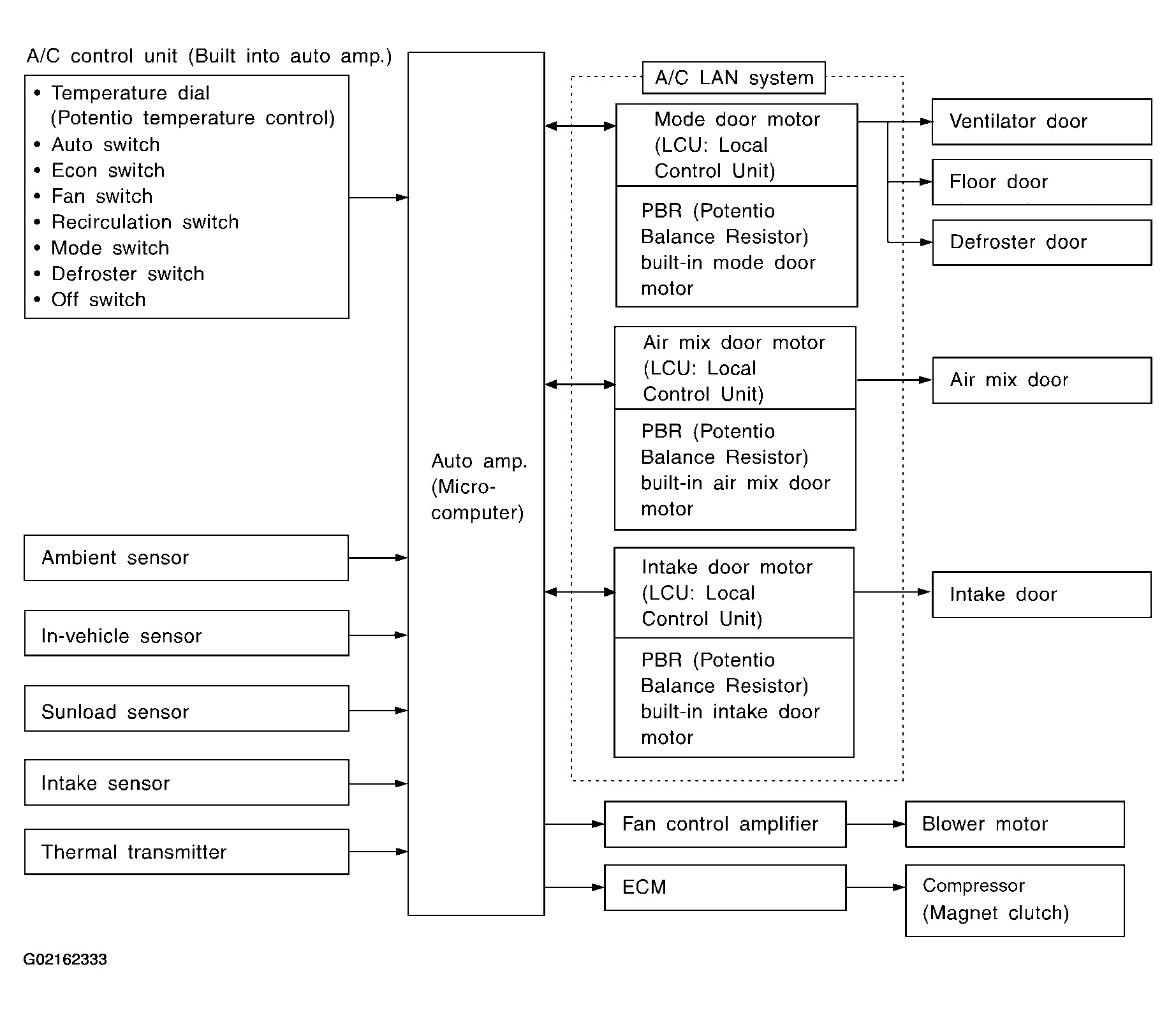

Fig 1: Components Relationship Diagram
G02162333Courtesy of NISSAN MOTOR CO., U.S.A.
