Final Drive: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

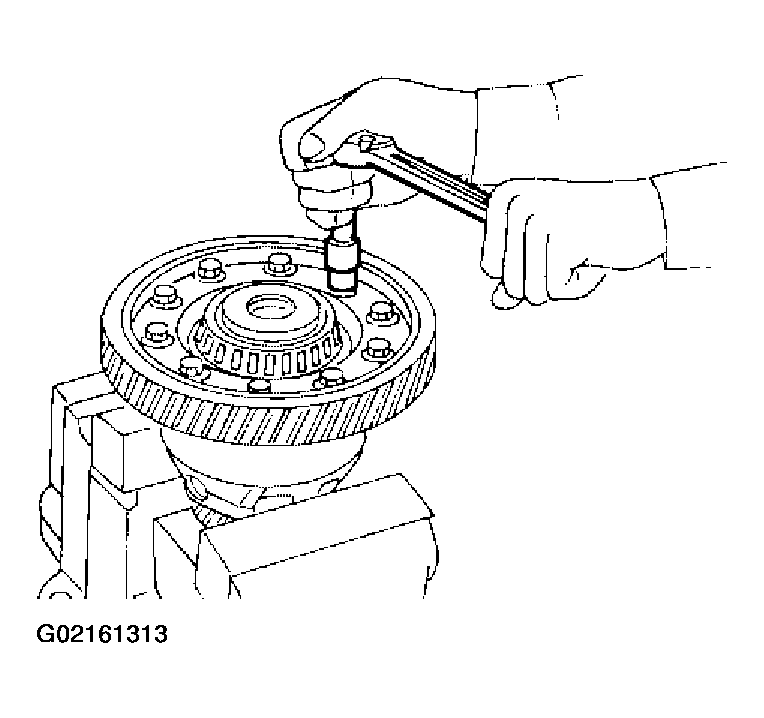

Remove final gear.

Fig 1: Removing Final Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Press out differential side bearings.
- Be careful not to mix up the right and left bearings.
Fig 2: Pressing Out Differential Side Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing outer race and side bearing adjusting shim from transmission case.

Fig 3: Removing Differential Side Bearing Outer Race And Side Bearing Adjusting Shim From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

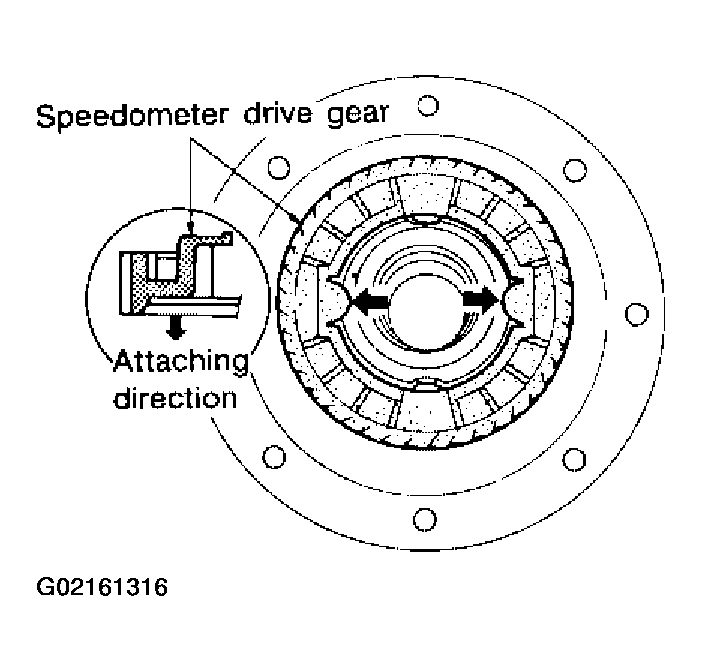

Remove speedometer drive gear.

Fig 4: Removing Speedometer Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out pinion mate shaft lock pin.

Fig 5: Driving Out Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Draw out pinion mate shaft lock pin.
Remove pinion mate gears and side gears.

Fig 6: Removing Pinion Mate Gears And Side Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
