Band Servo Piston Assembly: Assembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install D-rings to servo piston retainer.
    • Apply ATF to D-rings.
    • Pay attention to position of each O-ring.
    Fig 1: Installing D-Rings To Servo Piston Retainer
    G02161301Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.
    Fig 2: Installing Band Servo Piston Stem, Band Servo Thrust Washer, O/D Servo Return Spring And Spring Retainer To Band Servo Piston
    G02161302Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.
    Fig 3: Installing E Ring
    G02161303Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
    Fig 4: Installing O-Rings To Servo Piston Retainer
    G02161304Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.
    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G02161305Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to O/D servo piston.
    • Apply ATF to D-ring.
    Fig 6: Installing D-Ring To O/D Servo Piston
    G02161306Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install O-rings to O/D servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
    Fig 7: Installing O-Rings To O/D Servo Piston Retainer
    G02161307Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install O/D servo piston to O/D servo piston retainer.
    Fig 8: Installing O/D Servo Piston To O/D Servo Piston Retainer
    G02161308Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

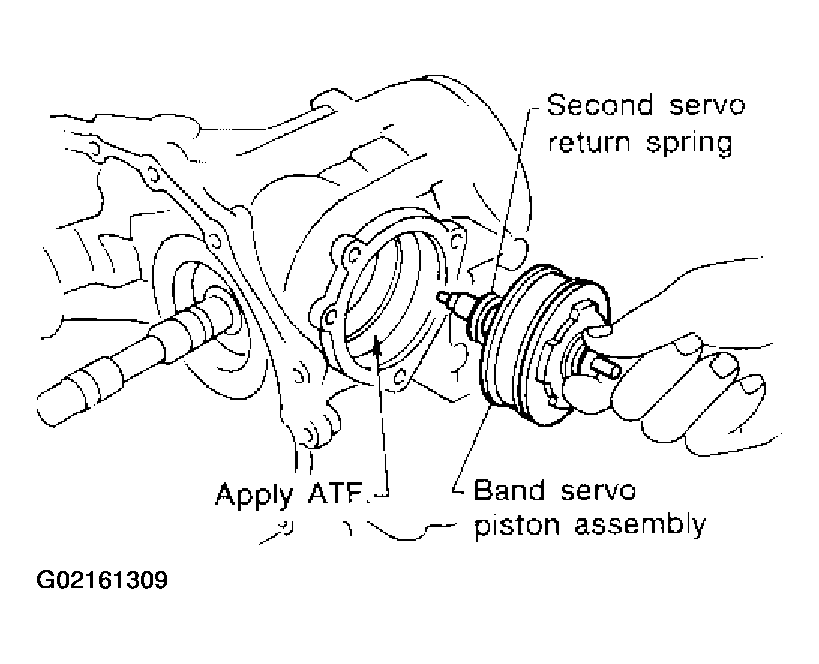

    Fig 9: Installing Band Servo Piston Assembly And 2nd Servo Return Spring To Transmission Case
    G02161309Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install O/D servo piston assembly to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

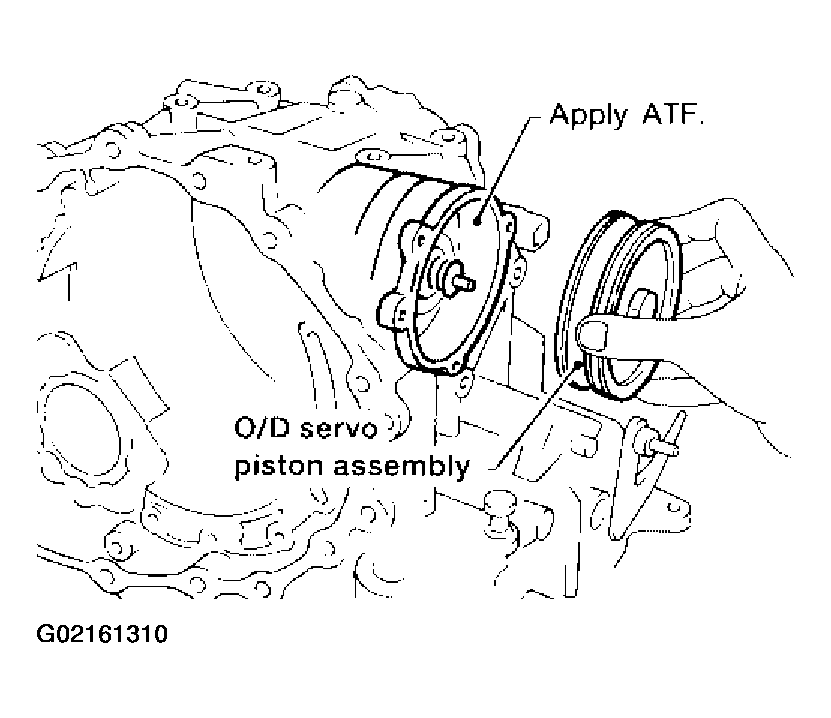

    Fig 10: Installing O/D Servo Piston Assembly To Transmission Case
    G02161310Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install O/D servo piston retainer to transmission case. Refer to "COMPONENTS ".

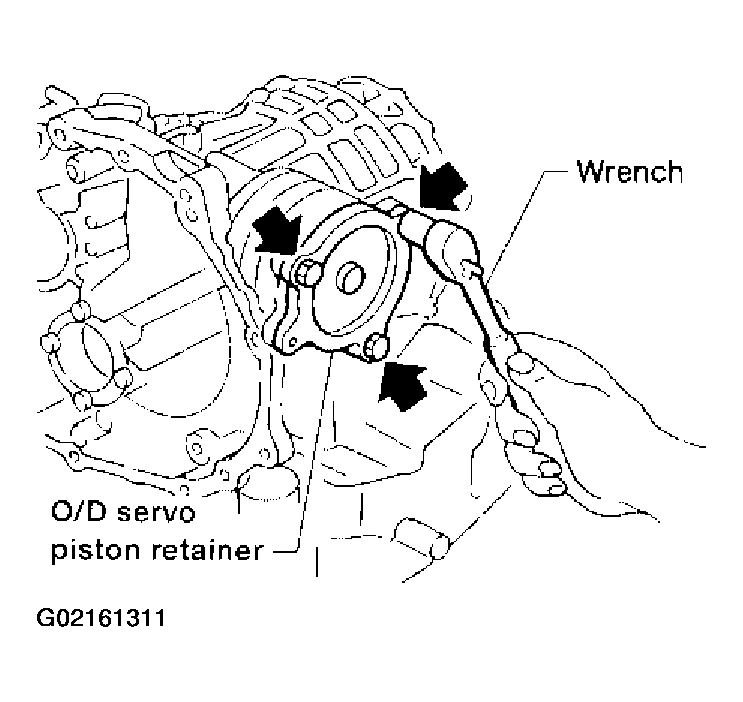

    Fig 11: Installing O/D Servo Piston Retainer To Transmission Case
    G02161311Courtesy of NISSAN MOTOR CO., U.S.A.
