Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil cooler (A/T model only).

Fig 1: Identifying Oil Cooler & Components
Courtesy of NISSAN MOTOR CO., U.S.A.

Pay attention to direction of conical washer.
Clean the contact portion of the tank.

Fig 2: Cleaning Contact Portion Of Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
Install sealing rubber.

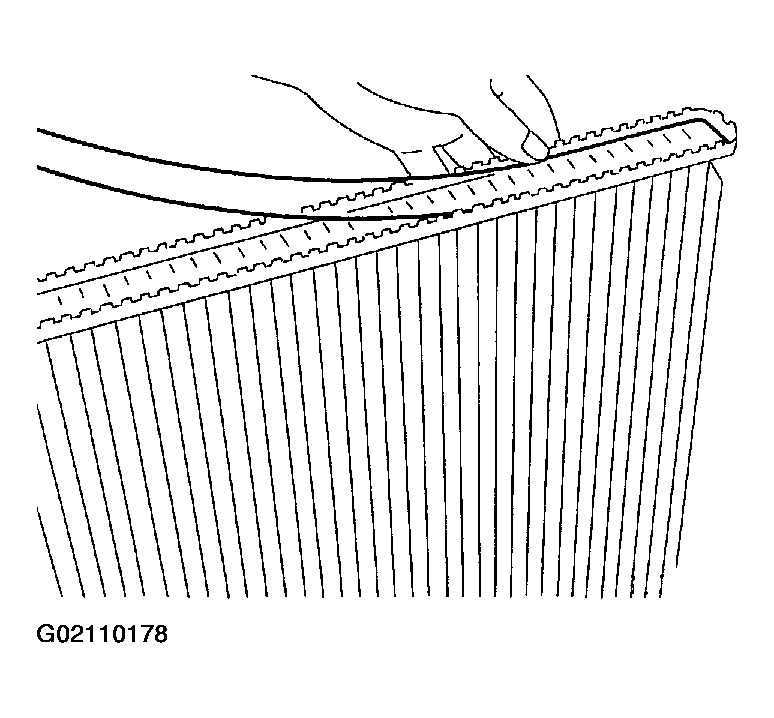

Fig 3: Installing Sealing Rubber
Courtesy of NISSAN MOTOR CO., U.S.A.

Push it in with fingers.

Be careful not to twist sealing rubber.
Caulk tank in specified sequence with Tool.

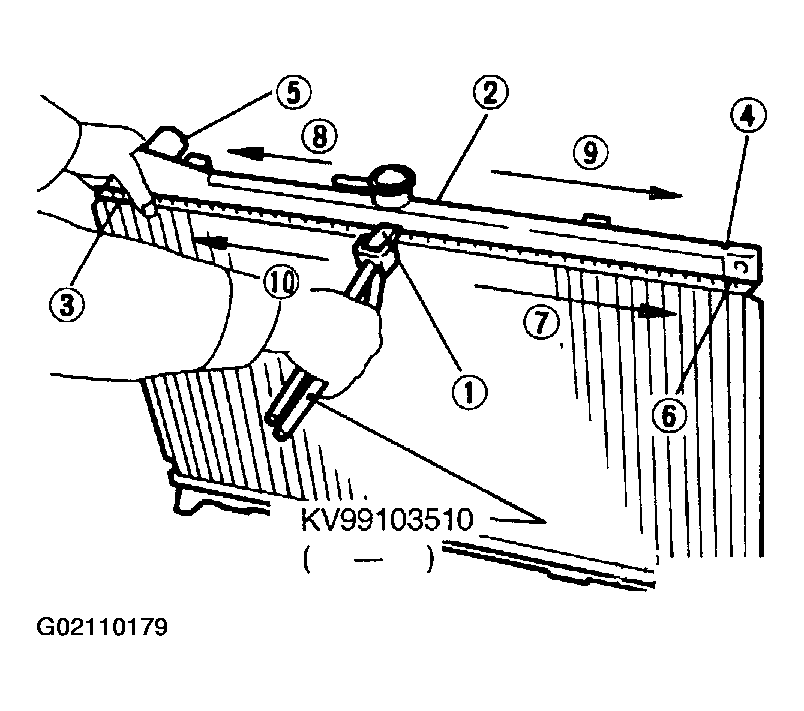

Fig 4: Caulking Tank In Specified Sequence With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

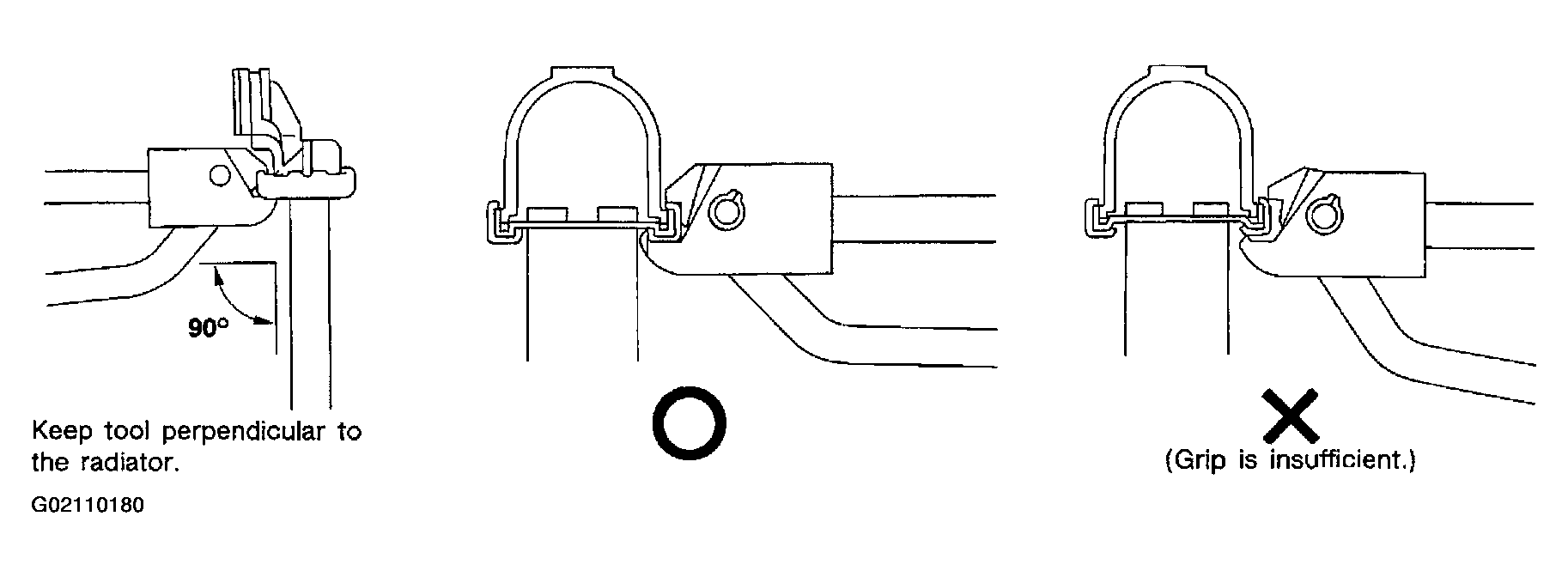

Fig 5: Keeping Tool Perpendicular To Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.
- Use pliers in the locations where Tool cannot be used.

  Fig 6: Using Pliers Where Tool Cannot Be Used.
  Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the rim is completely crimped down.

Fig 7: Making Sure That Rim Is Completely Crimped Down
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Standard height H: 8.0 - 8.4 mm (0.315 - 0.331 in)
Confirm that there is no leakage.
Refer to INSPECTION .
