Removal And Installation: Notes

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

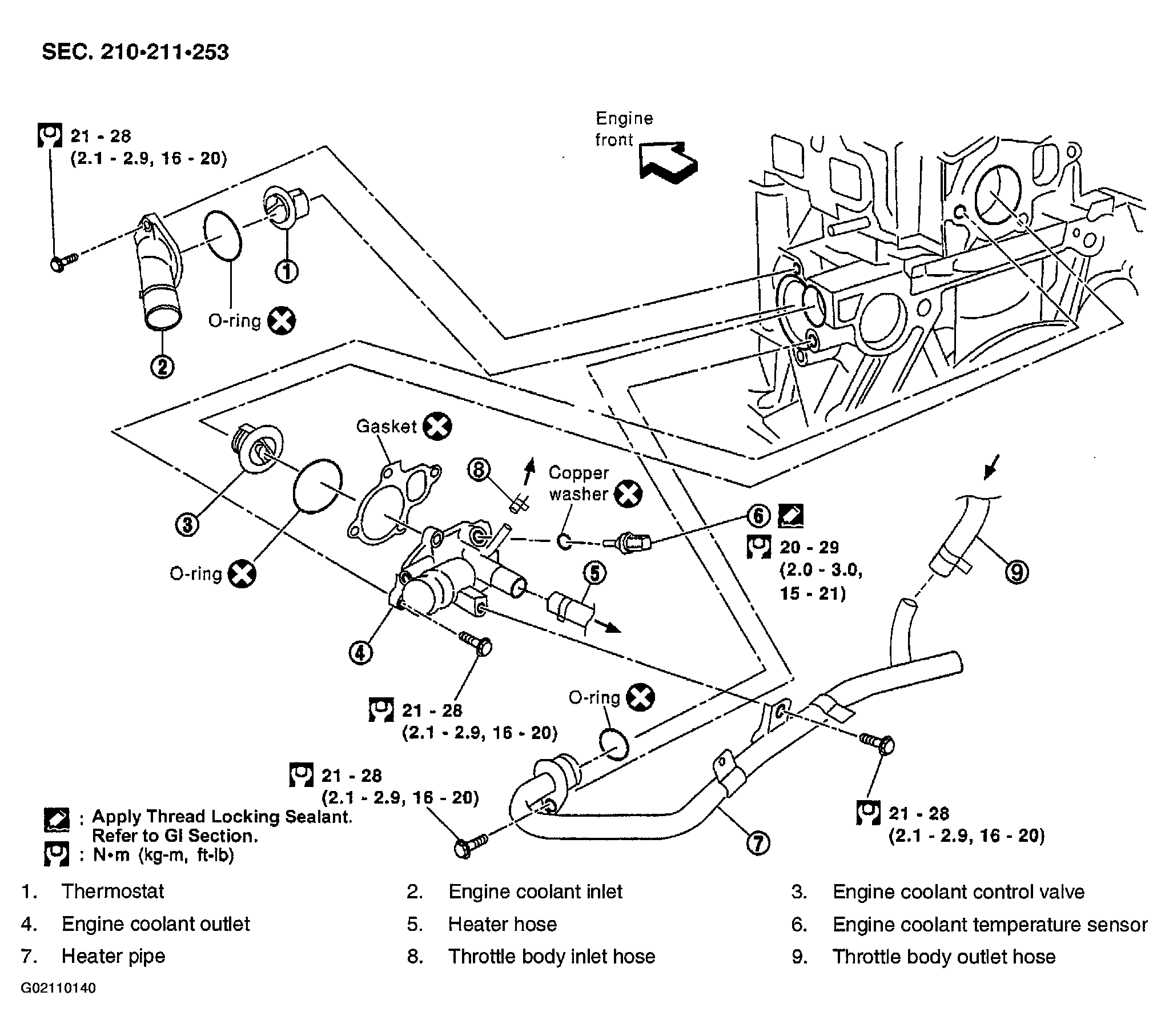

Fig 1: Removing /Installing Water Control Valve
G02110140Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.
