Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install oil cooler into the tank (A/T model only).
Pay attention to direction of conical washer.

Fig 1: Identifying Oil Cooler & Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Clean contact portion of tank.

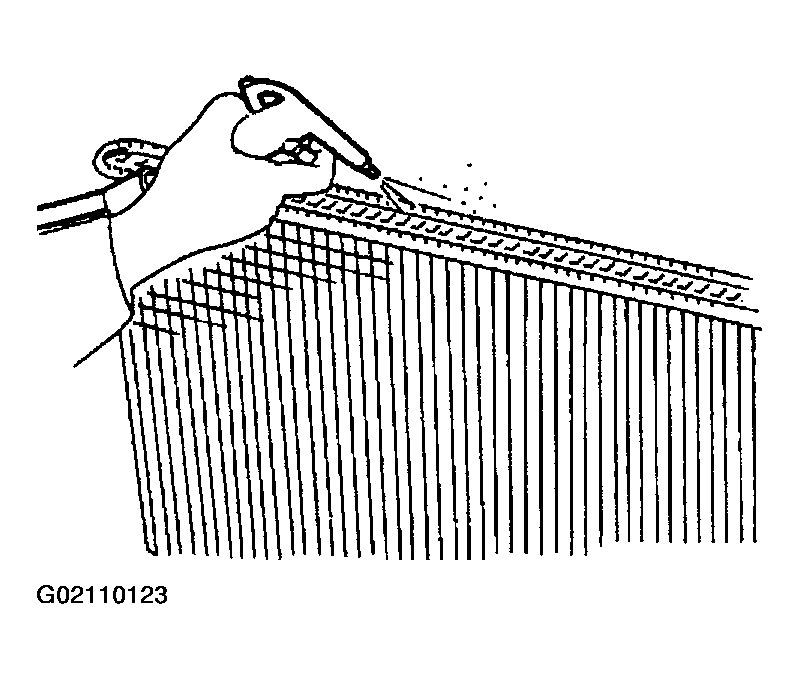

Fig 2: Cleaning Contact Portion Of Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
Install sealing rubber gasket.
Push it into the tank groove with your fingers. Be careful not to twist sealing rubber gasket.

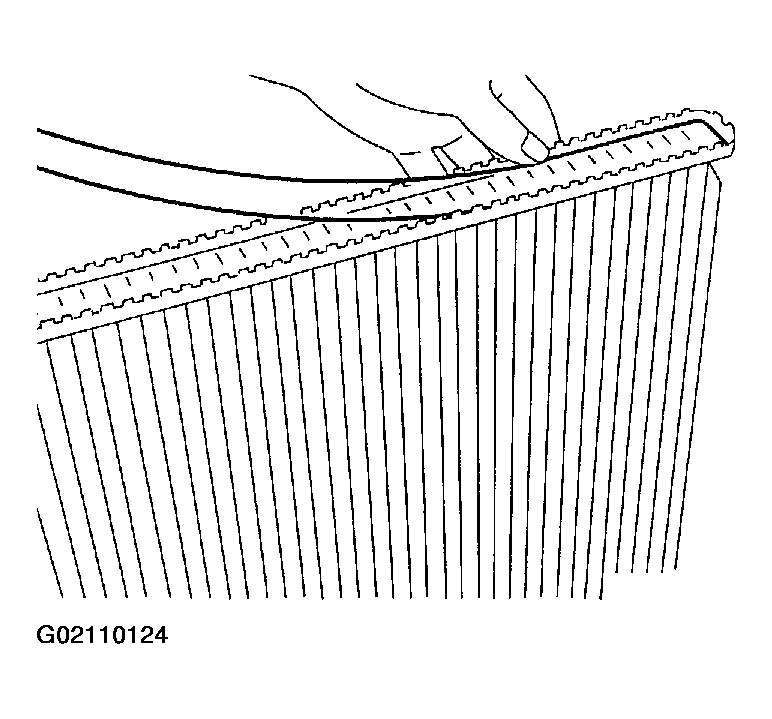

Fig 3: Installing Sealing Rubber Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Caulk tank in specified sequence with Tool.

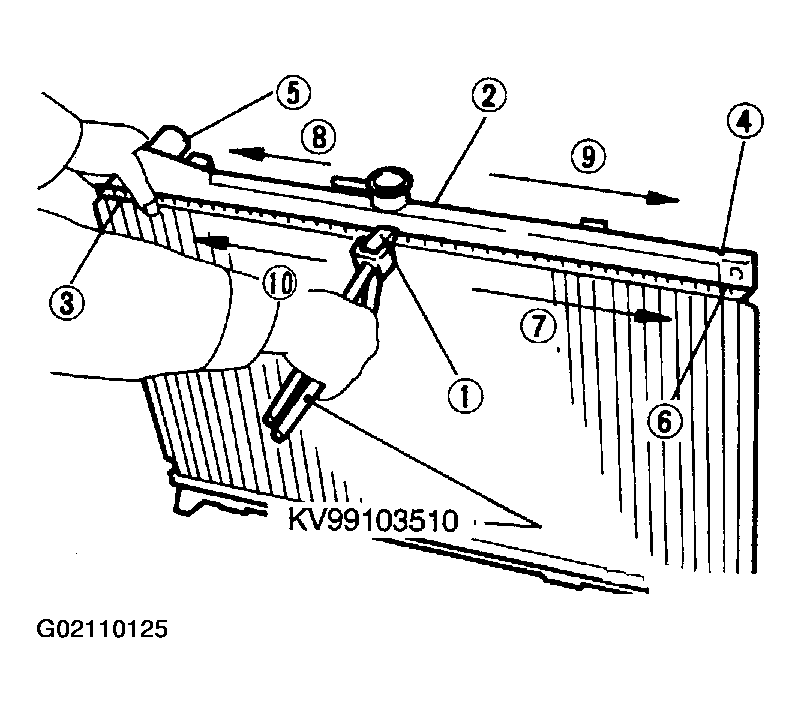

Fig 4: Caulking Tank In Specified Sequence With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

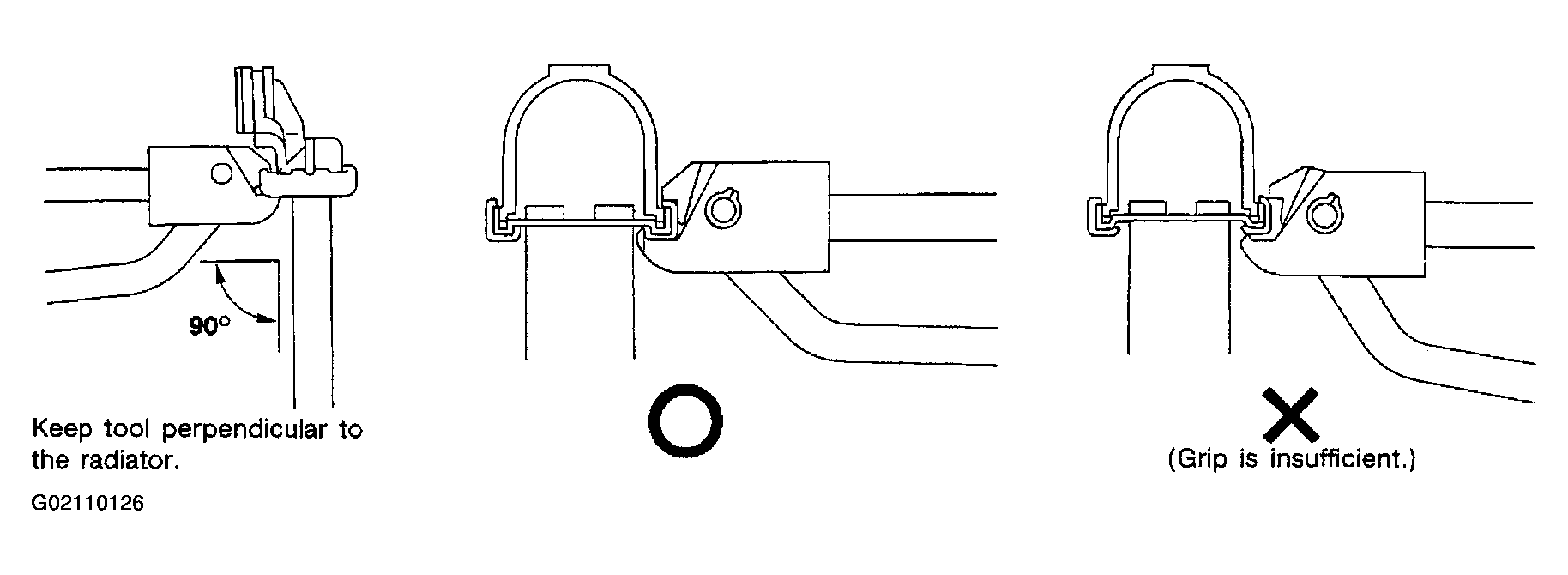

Fig 5: Keeping Tool Perpendicular To Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.
- Use pliers in the locations where Tool cannot be used.

  Fig 6: Using Pliers Where Tool Cannot Be Used
  Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the rim is completely crimped down.

Fig 7: Ensuring Rim Is Completely Crimped Down
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Standard height H: 8.0 - 8.4 mm (0.315 - 0.331 in)
Confirm that there is no leakage.
1. Refer to INSPECTION .
