Rear Cooling Unit: Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT:

At the time of installation, please refer to the following item. Evacuate air from refrigeration system.

Charge system with refrigerant and inspect the leakage of refrigerant.

Specified Amount:

Dual A/C: 900 +/- 50 g (31.74 +/- 1.76 oz.)
REMOVE REAR SEAT CUSHION
REMOVE REAR SEAT BACK
REMOVE REAR DOOR SCUFF PLATE LH, RH
REMOVE REAR SEAT SIDE GARNISH LH, RH
REMOVE REAR DOOR OPENING TRIM LH, RH
REMOVE ROOF SIDE INNER GARNISH LH, RH
REMOVE PACKAGE TRAY TRIM PANEL
REMOVE ROOM PARTITION TRIM
REMOVE LUGGAGE COMPARTMENT FLOOR MAT
REMOVE DECK SIDE BOARD LH, RH
REMOVE LUGGAGE COMPARTMENT TRIM
DISCONNECT LIQUID AND SUCTION TUBES.
Remove the 2 bolts and disconnect the both tubes.

Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:

At the time of installation, please refer to the following item. Lubricate 2 new O-rings with compressor oil and install them to the tubes.

Fig 1: Disconnecting Liquid & Suction Tubes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR COOLING UNIT
1. W/ Cool box models:
  Remove the 4 cool box set bolts.

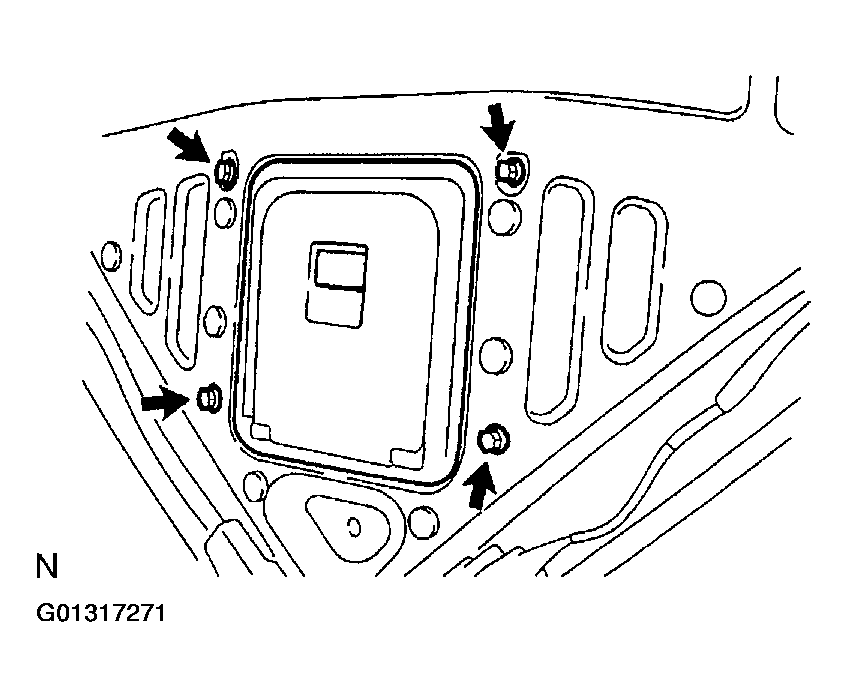

  Fig 2: Removing Cool Box Set Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the duct No. 3.

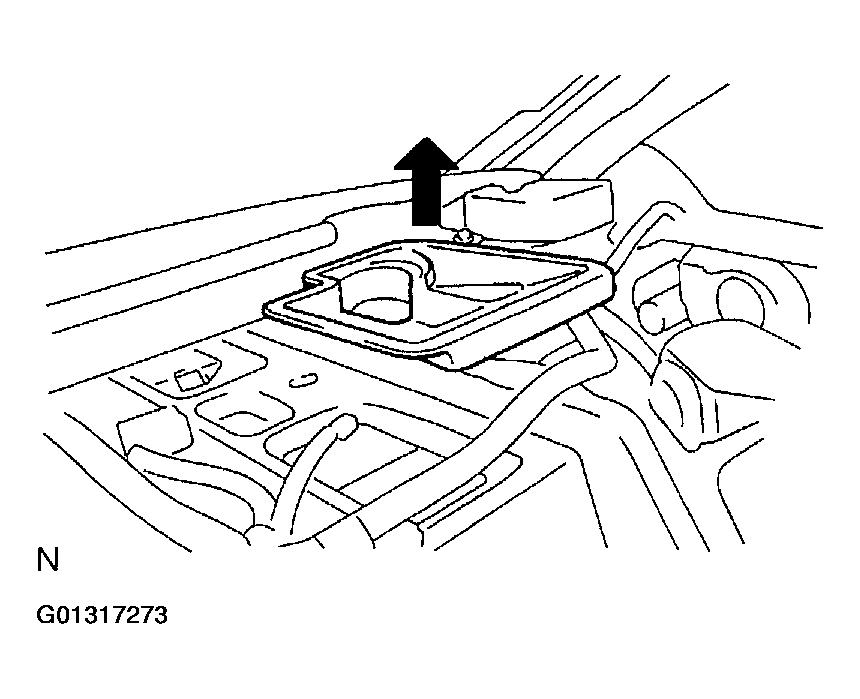

  Fig 3: Removing Duct No. 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the duct No. 5.

  Fig 4: Removing Duct No. 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the duct No. 1, 2, 4.

  Fig 5: Removing Duct No. 1, 2, 4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the connector.
6. Remove the 2 nuts and 2 bolts.
7. Remove the rear cooling unit.

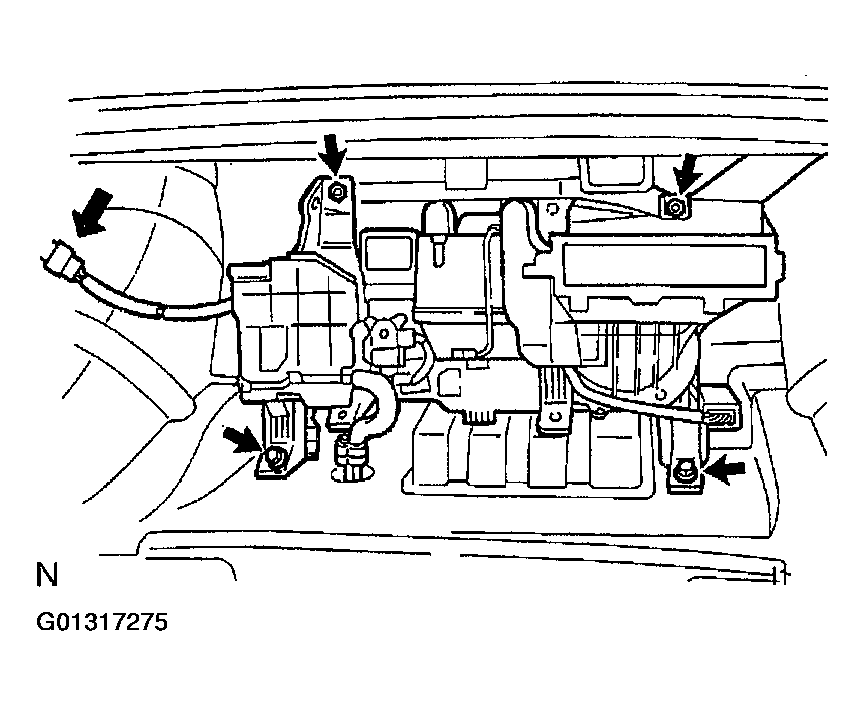

  Fig 6: Removing Rear Cooling Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
