Compressor And Magnetic Clutch: Components

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

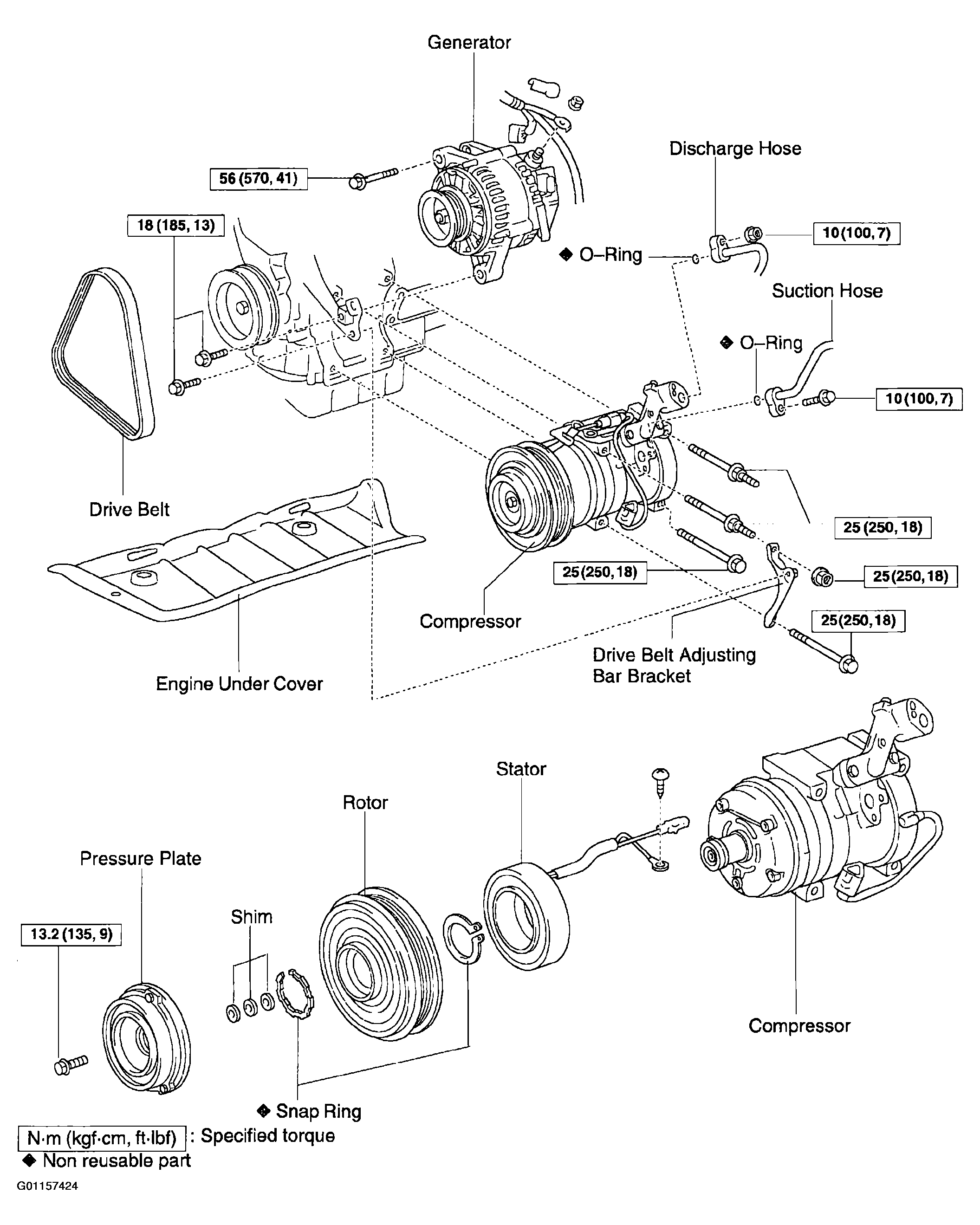

Fig 1: Compressor And Magnetic Clutch Replacement Components With Torque Specifications
G01157424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
