Removal and Installation: Removal
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
- Drain engine coolant from the radiator. Refer to "CHANGING ENGINE COOLANT ".
- Remove cooling fan shroud. Refer to "REMOVAL AND INSTALLATION ".
- Remove A/T oil cooler hoses.
- Install blind plug to avoid leakage of A/T fluid.
- Remove bolts of both right/left end of radiator core (2 bolts for each).

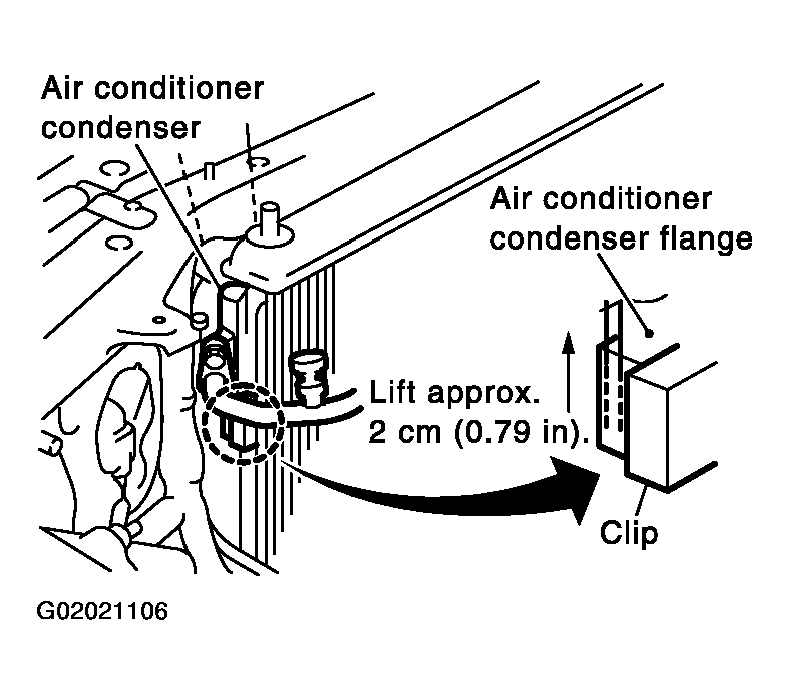

- Lift the air conditioner condenser up approximately 2 cm (0. 79 in).
Remove the clips from the right and left flange parts of the air conditioner condenser.
- Lift up and remove the radiator. CAUTION:
- Do not damage or scratch radiator core when removing.
- After removing the radiator, fix the air conditioner condenser on the vehicle side with a rope or similar means. This is to prevent a load being applied to the air conditioner piping.
CAUTION:
Perform when the engine is cold.
CAUTION:
To avoid putting a load on the air conditioner piping, be careful not to lift too much.
