Wiring Diagram - WINDOW -

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: These are circuit specific wiring diagrams. For system wiring diagrams, see SYSTEM WIRING DIAGRAMS . For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION . For component locations, see ELECTRICAL COMPONENT LOCATOR .

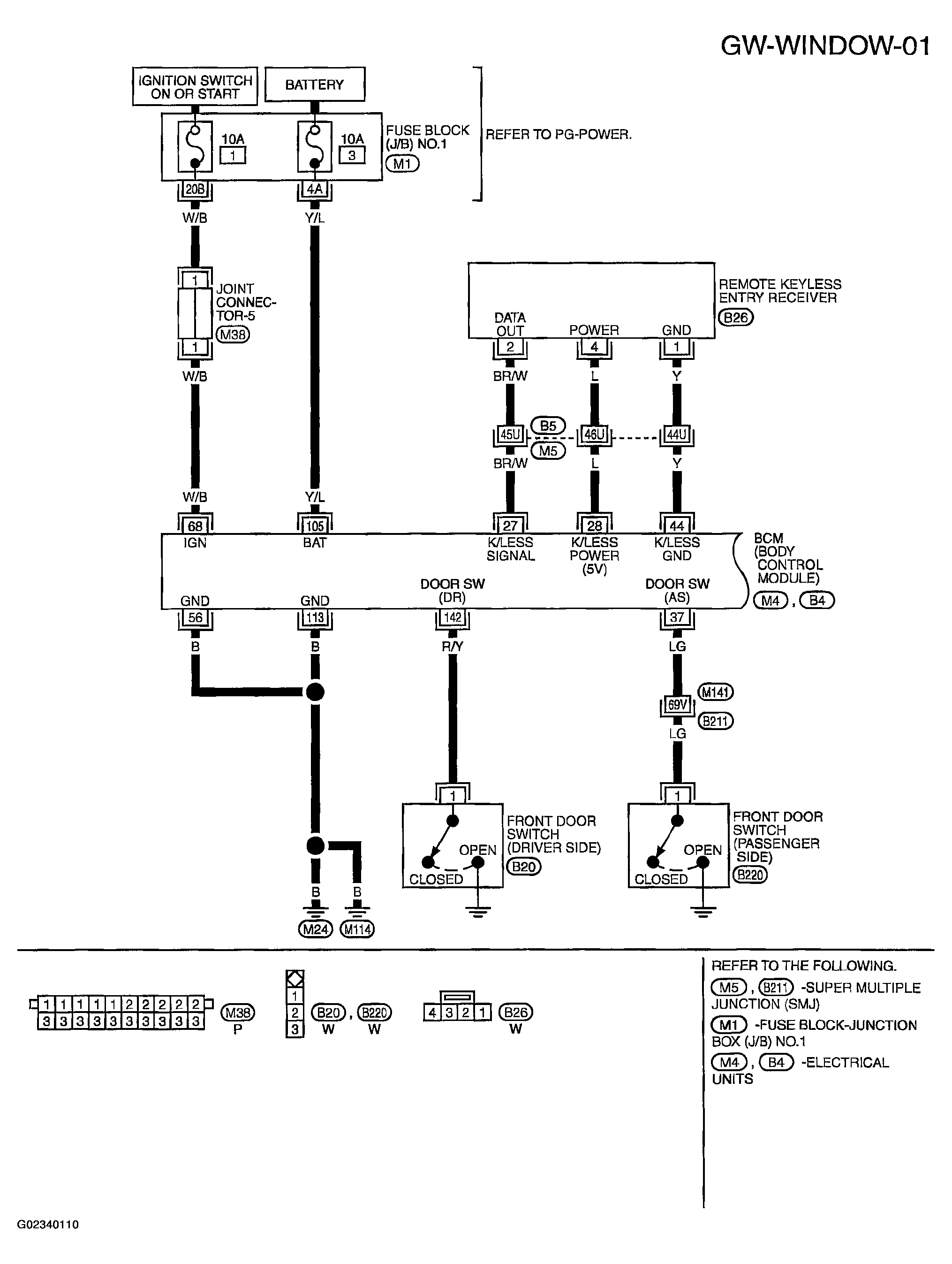

Fig 1: Power Window System Wiring Diagram GW-WINDOW-01

G02340110

Courtesy of NISSAN MOTOR CO., U.S.A.

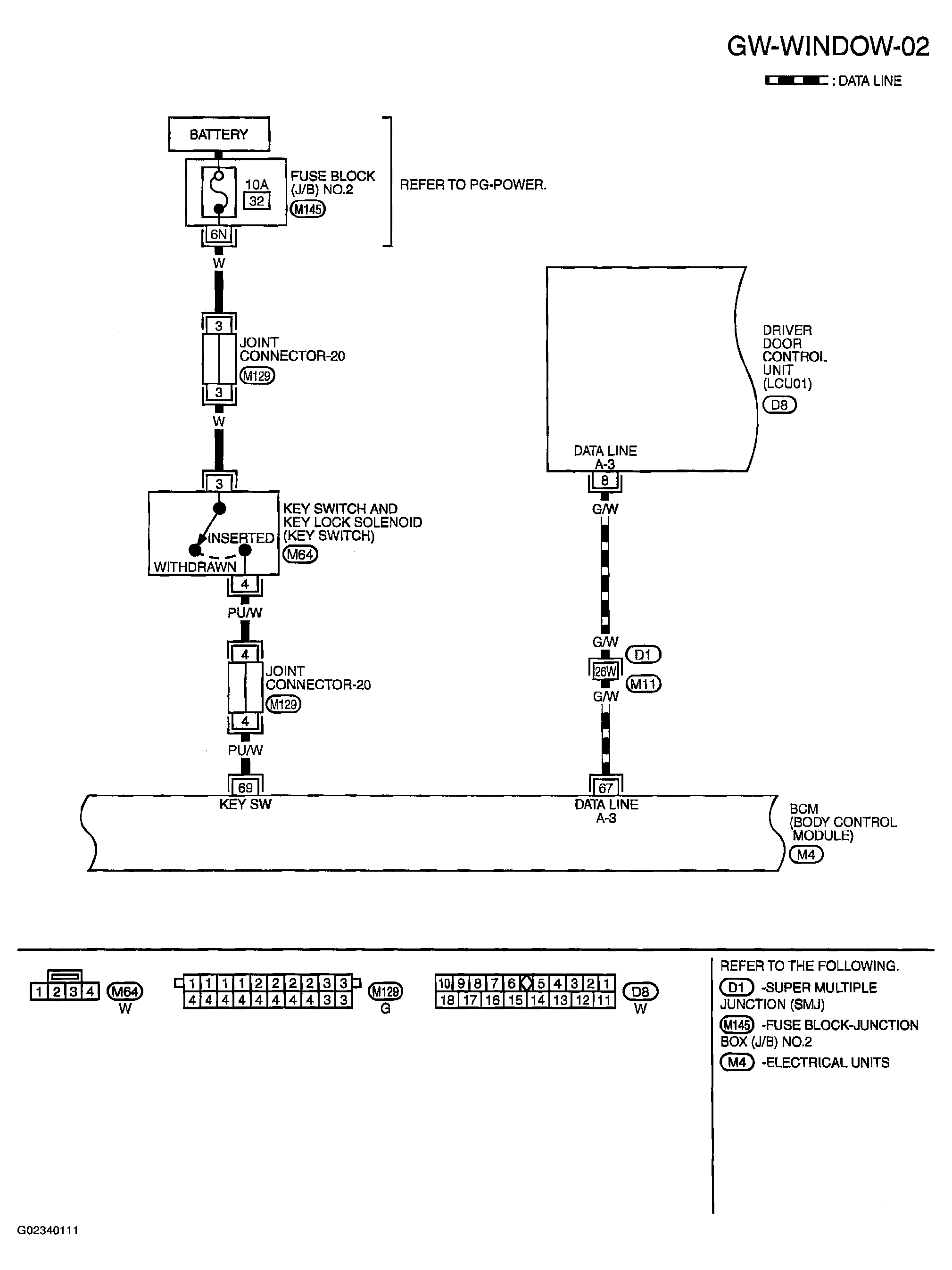

Fig 2: Power Window System Wiring Diagram GW-WINDOW-02

G02340111

Courtesy of NISSAN MOTOR CO., U.S.A.

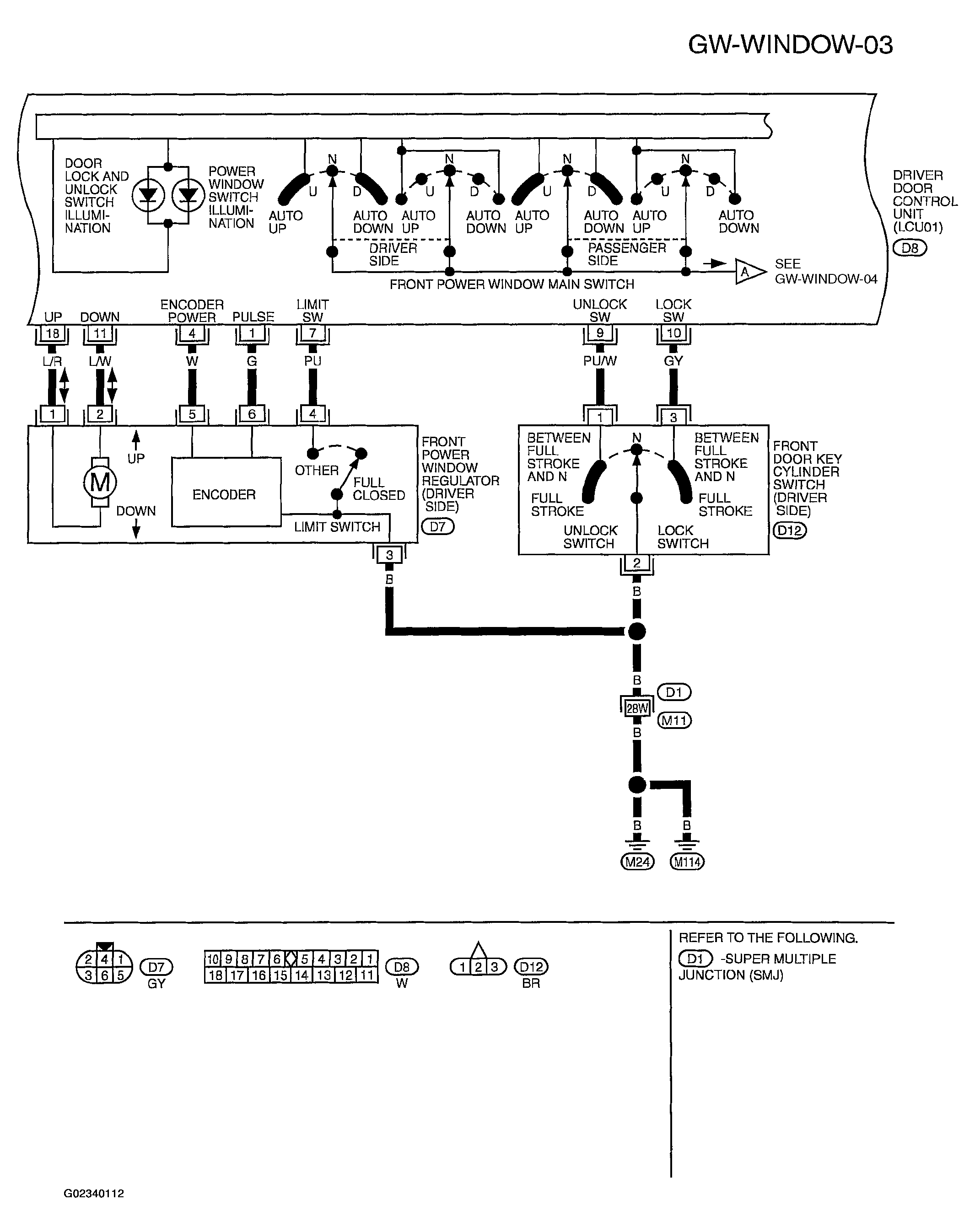

Fig 3: Power Window System Wiring Diagram GW-WINDOW-03

G02340112

Courtesy of NISSAN MOTOR CO., U.S.A.

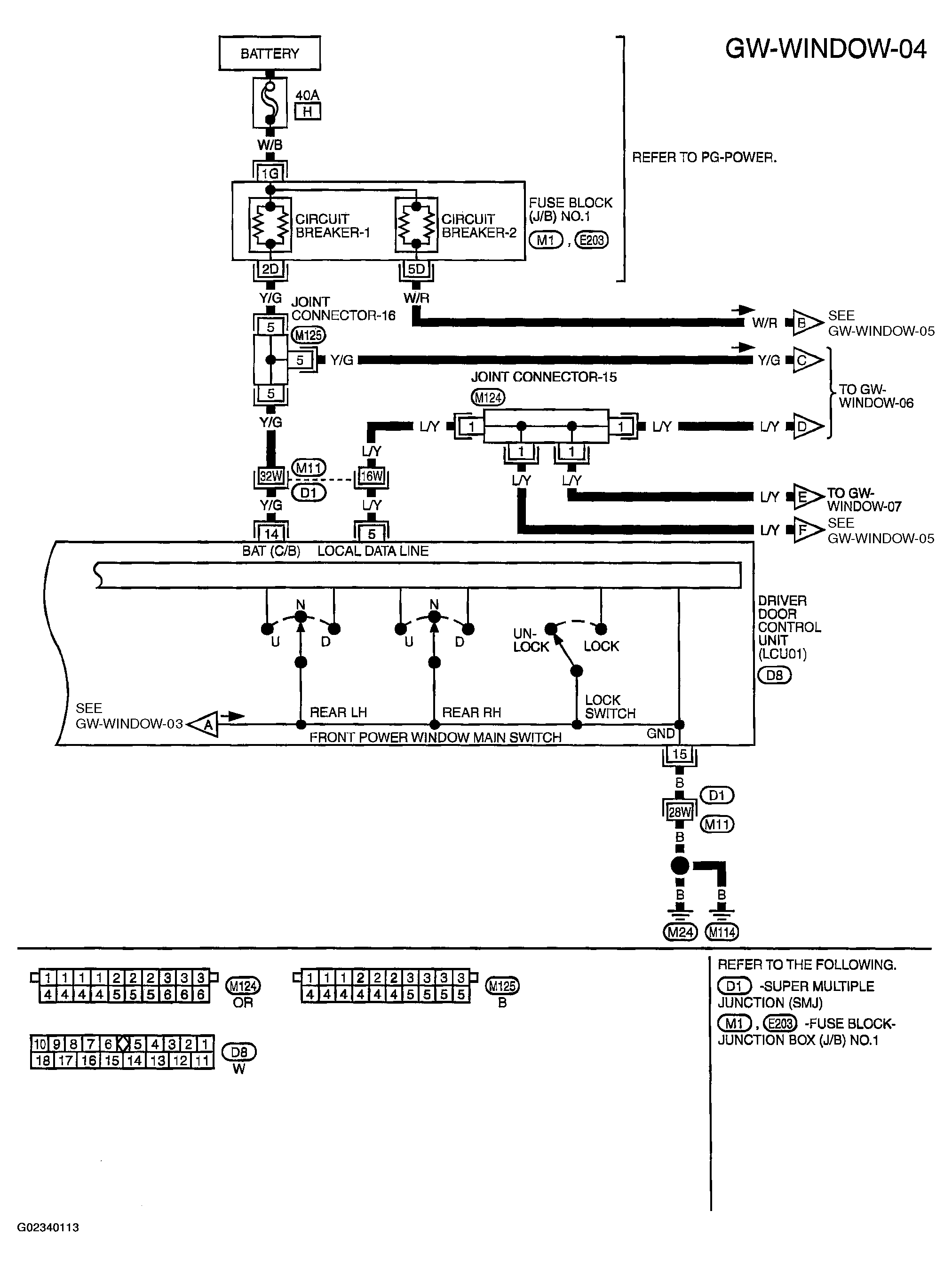

Fig 4: Power Window System Wiring Diagram GW-WINDOW-04

G02340113

Courtesy of NISSAN MOTOR CO., U.S.A.

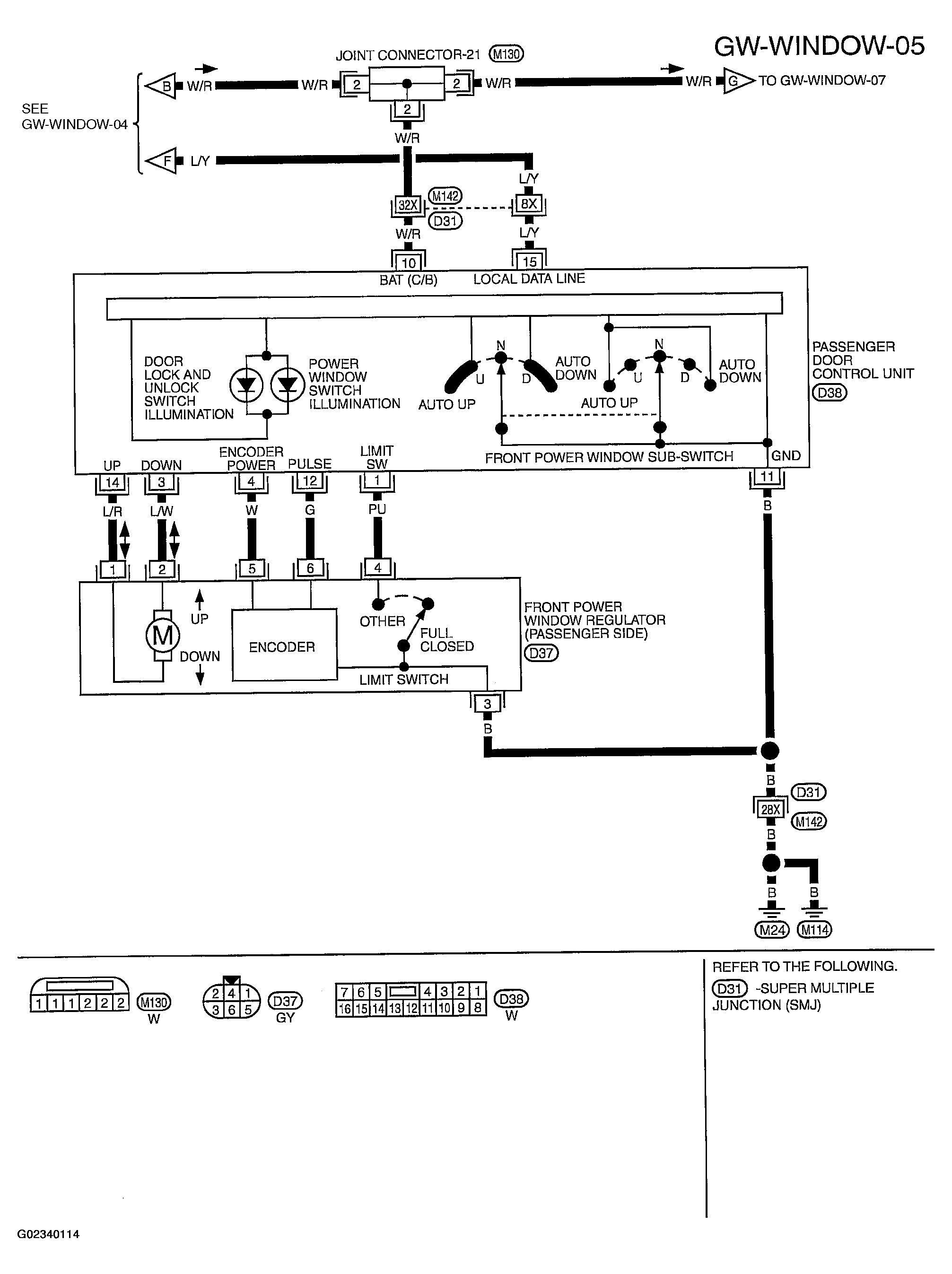

Fig 5: Power Window System Wiring Diagram GW-WINDOW-05

G02340114

Courtesy of NISSAN MOTOR CO., U.S.A.

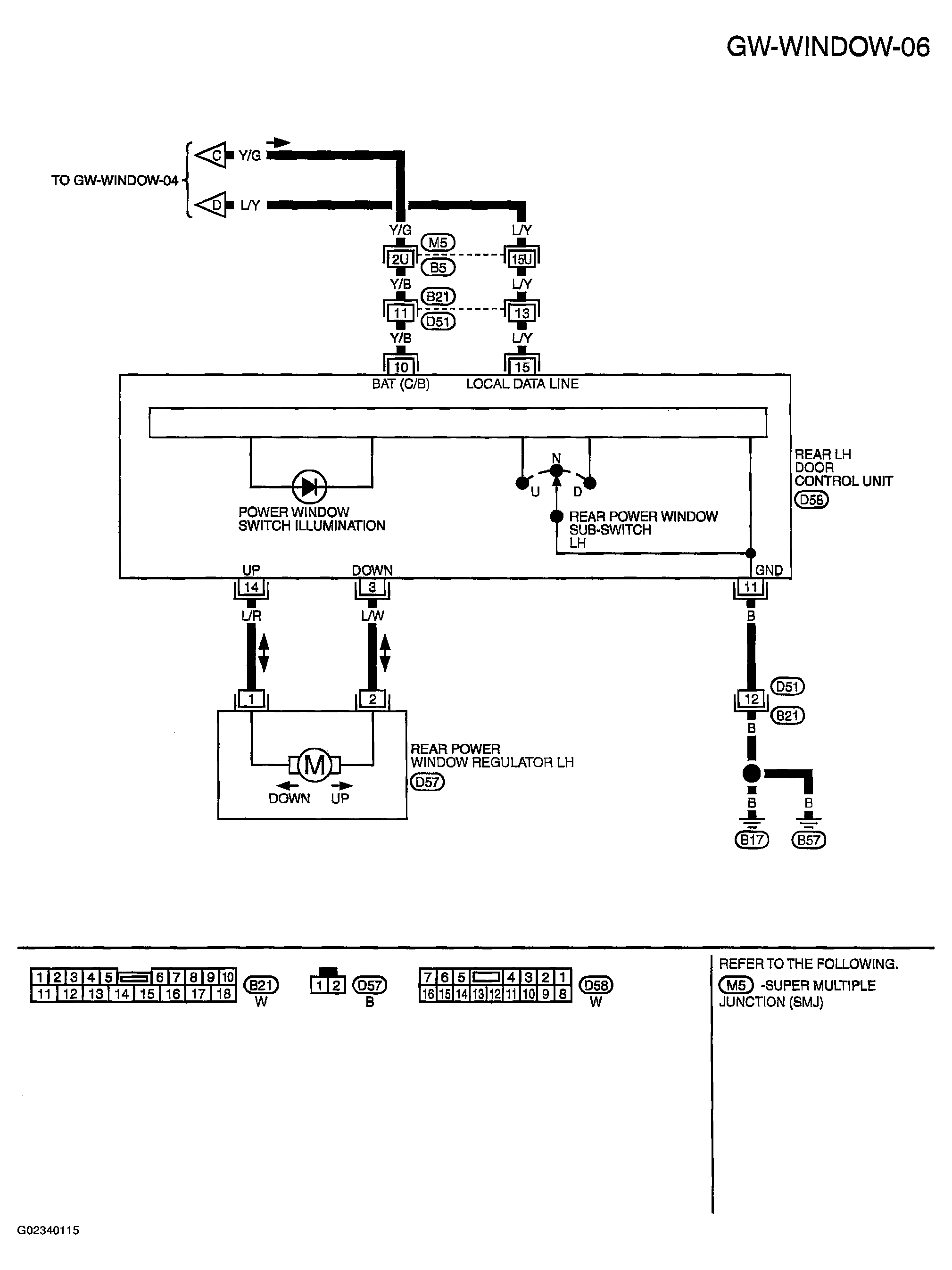

Fig 6: Power Window System Wiring Diagram GW-WINDOW-06

G02340115

Courtesy of NISSAN MOTOR CO., U.S.A.

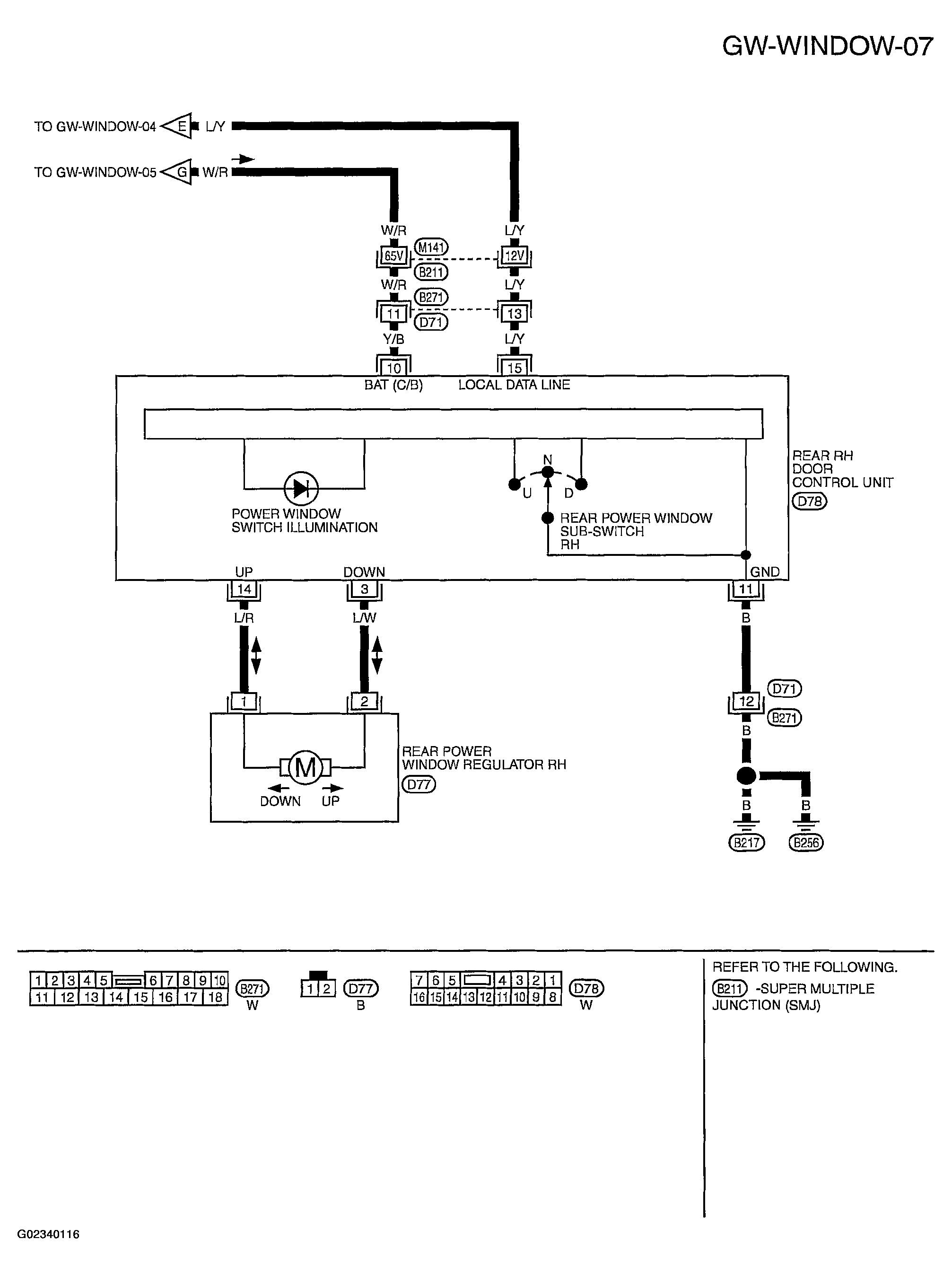

Fig 7: Power Window System Wiring Diagram GW-WINDOW-07

G02340116

Courtesy of NISSAN MOTOR CO., U.S.A.

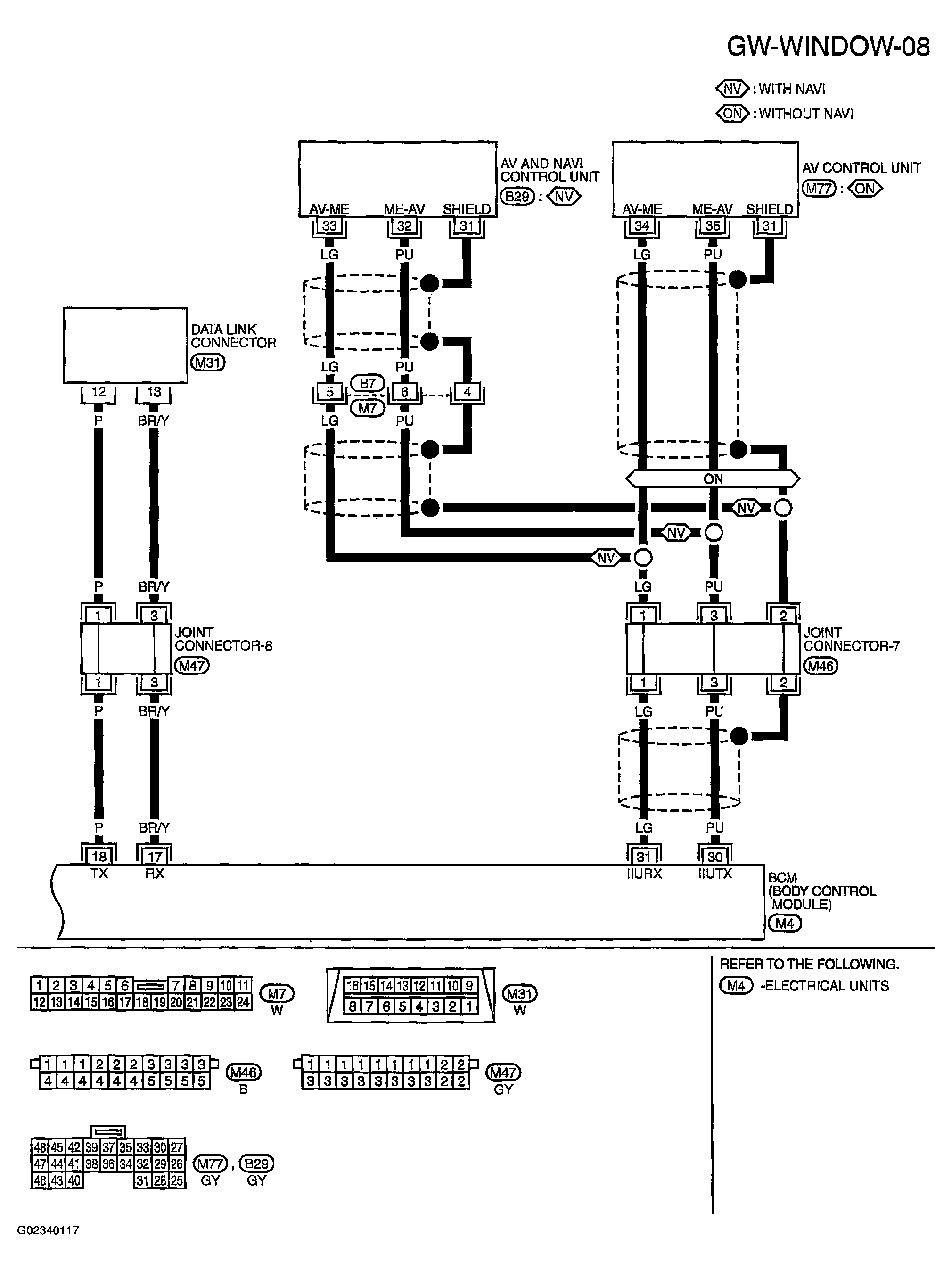

Fig 8: Power Window System Wiring Diagram GW-WINDOW-08

G02340117

Courtesy of NISSAN MOTOR CO., U.S.A.
