Work Step

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

When removing instrument panel and pad, combination meter, audio and display, NAVI control unit and center console, take steps in the order shown by the numbers below.

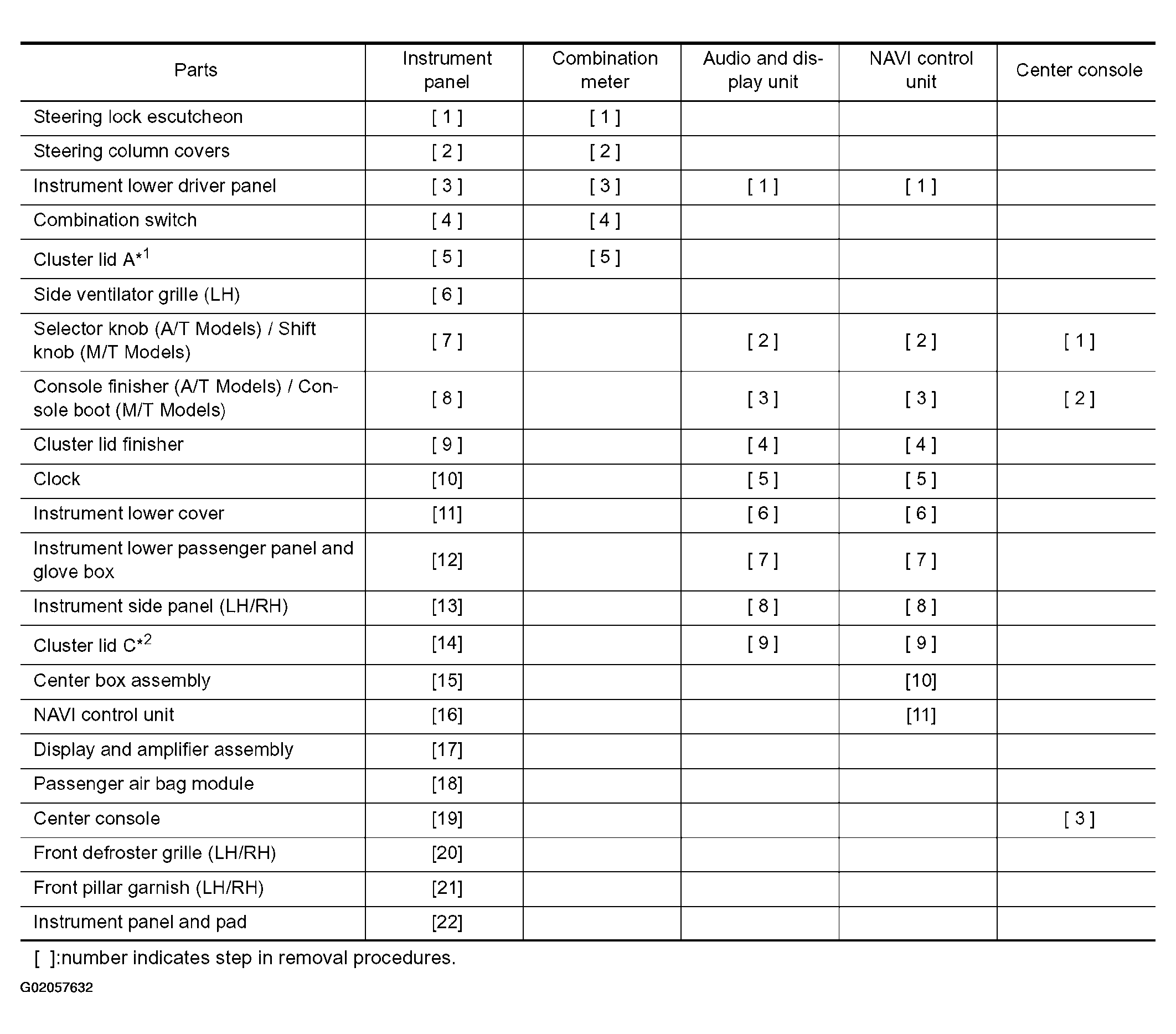

Fig 1: Instrument Panel Assembly Removal And Installation Work Steps

Courtesy of NISSAN MOTOR CO., U.S.A.

The following foot notes apply to the illustration above. See Fig 1.

NOTE:

*1: When disassembling and assembling combination meter and mirror control switch, refer to "CLUSTER LID A ".
*2: When disassembling and assembling center ventilator grille, audio and display unit assembly and NAVI switch, refer to "CLUSTER LID C ".
